12 Inch type R box build. Need help / confirmation

Old 05-16-2013, 08:41 AM
  #1
0 Watt CAFz'r
Thread Starter

Join Date: Feb 2007
Posts: 41
12 Inch type R box build. Need help / confirmation

Hey guys.. to keep it simple i made a box for this type R before and it didnt sound to good... it was loud but certain bass hits sounded muffled. I used RE calc last time and the port was not L shaped but still tuned to 35 Hz according to RE calc (Square port length 2 = 0).

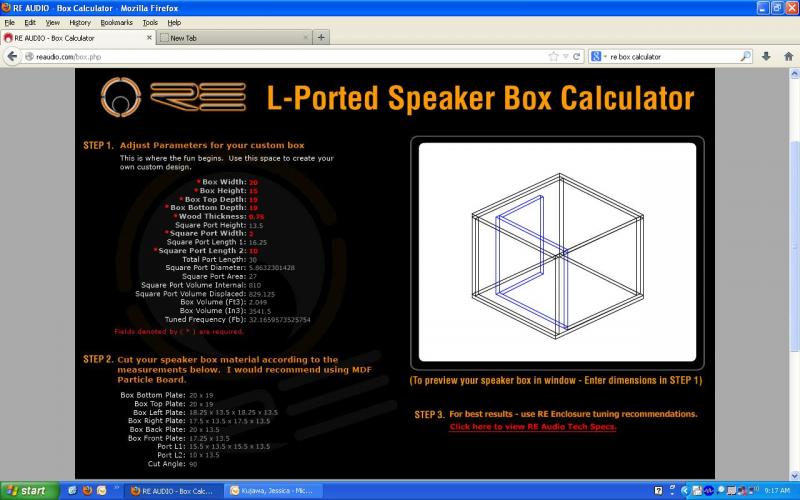

Im trying to make a new box for my 09 TSX. Please look at the PIC and let me know if this will be a good sounding box for the type R. Space is a constraint so i maximized all that could when inputing dimensions into the calc. I want a box that can play Lows really well as well as play the more midbass frequencies (60-80hz) ... I used a tuning of 32hz on calc



or just use the external link "http://postimg.org/image/89tisvu5n/"without the quotes

ALL help and opinions will be appreciated.

-Danny
Attached Thumbnails 12 Inch type R box build. Need help / confirmation-1zoc575.jpg

Last edited by D4nnyD; 05-16-2013 at 10:38 AM.
D4nnyD is offline
Old 05-16-2013, 10:02 AM
  #2
0 Watt CAFz'r
Thread Starter

Join Date: Feb 2007
Posts: 41
If its any help im powering the sub with 600 Wrms at 2 Ohms from an MTX amp.
D4nnyD is offline
Old 05-18-2013, 03:14 AM
  #3
50 Watt CAFz'r
iTrader: (1)

Join Date: Oct 2011
Posts: 161
3 cubes net with a single 4" precision aeroport tuned to 35hz will give you what you want
gramser57 is offline
Old 05-23-2013, 09:16 AM
  #4
50 Watt CAFz'r

Join Date: Mar 2013
Posts: 161
if you want that wide of a range of frequencies why not use a sealed box? it also works better for space limitations.
VWdude is offline
