Blueprints for 1cuft ported 34hz
#1
Blueprints for 1cuft ported 34hz
I will be making a box for my Clarion SSW1001. Based on recommendations and suggested box size from Clarion I am looking to have 1 cuft tuned to 34hz.
The only measurement that needs to be within a certain range is the depth. No more than 12 inches. Other than that height, width is open. I cannot find the spec sheet however mounting depth it about 7 inches.
For reference it will be going in the rear of an extended cab f150 in the middle of the foot area.
Anyone help me out.
The only measurement that needs to be within a certain range is the depth. No more than 12 inches. Other than that height, width is open. I cannot find the spec sheet however mounting depth it about 7 inches.
For reference it will be going in the rear of an extended cab f150 in the middle of the foot area.
Anyone help me out.
#6

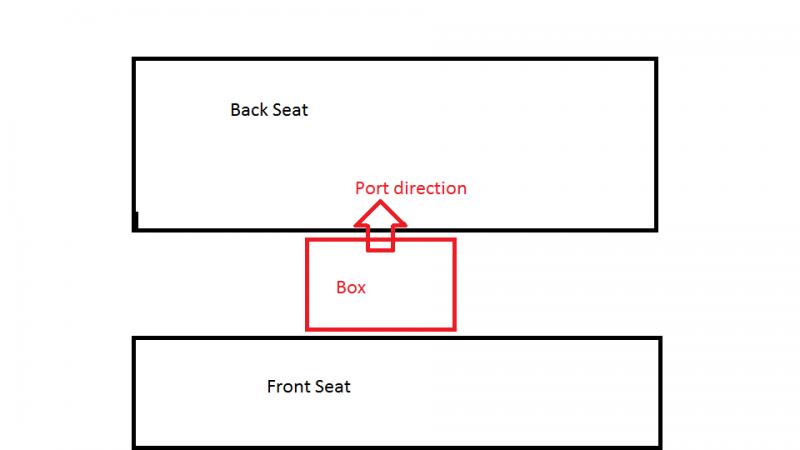

Okay ya I figured my description may have been a little difficult to picture. So here is an attachment of what i'm getting at.
Sub box between the rear bench seat and front bench seat in the middle of the cab. Port facing to rear was my initial thought as that is the closest wall to the box. If the port faced front it would not provide enough clearance to the front seat. To the side is almost three feet of space between the box and door.
Sub box between the rear bench seat and front bench seat in the middle of the cab. Port facing to rear was my initial thought as that is the closest wall to the box. If the port faced front it would not provide enough clearance to the front seat. To the side is almost three feet of space between the box and door.
#10
Is there any more information that I can post that would garner a response? I can build the box no problem however have had no luck in figuring out the dimensions appropriate to get to the final displacement and port area.
