My box build

Old 02-27-2013, 06:19 PM
  #1
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Posts: 161
My box build

While my sub gets built I decided to finish the box, final specs are 6 cubes net 33hz port tune with an 8" flared aeroport.

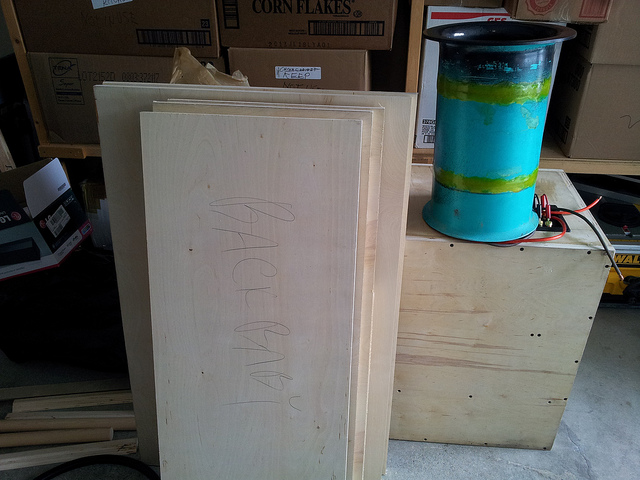

cut all the birch

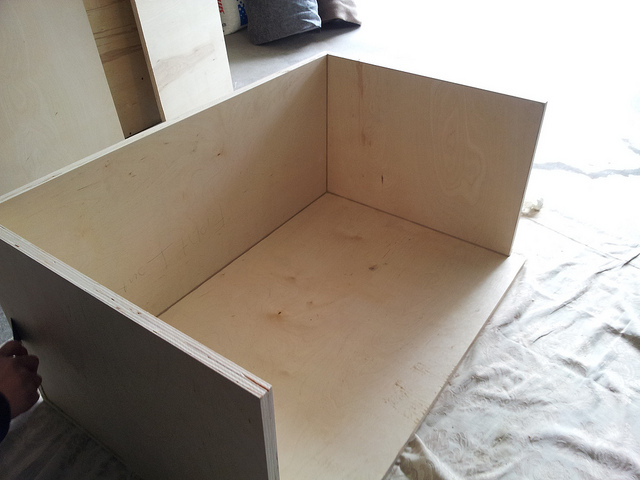

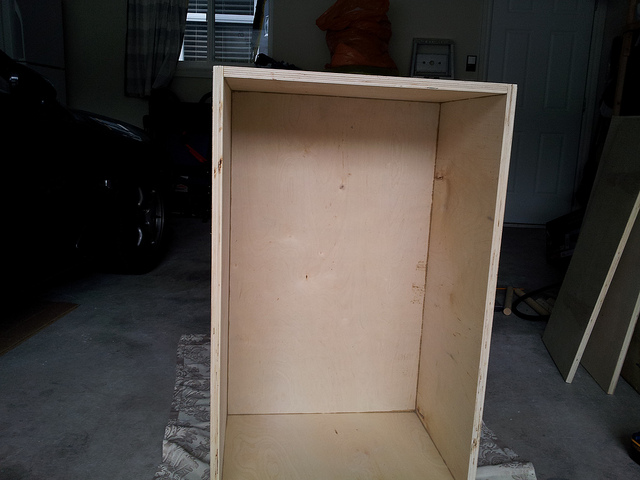

3 walls in

I like to use PL for glue because it seals the box once it dries no need for silicone

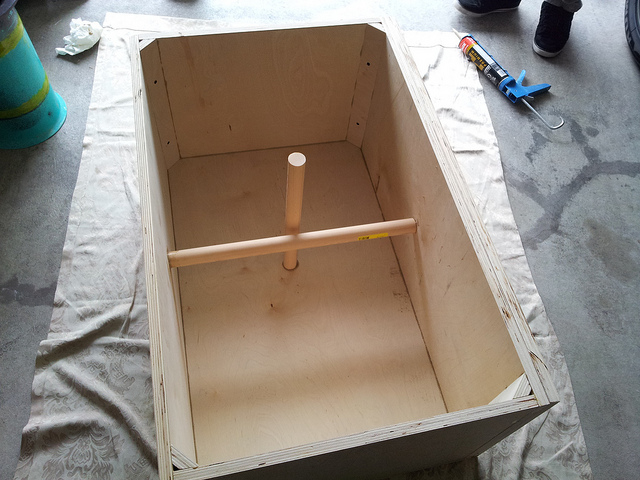

Got the dowels and 45's in

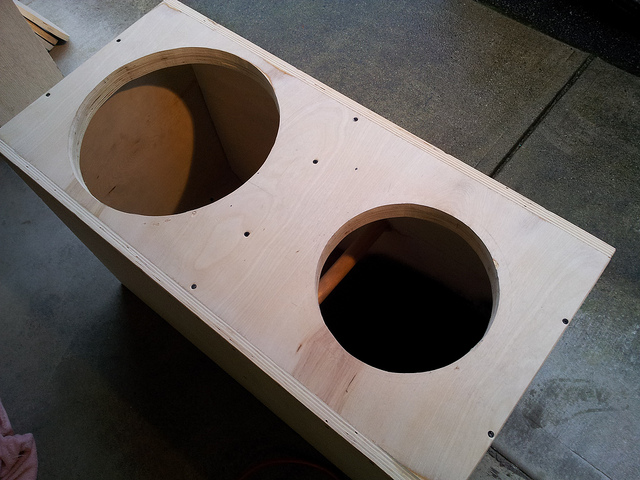

Jigsaw and router FTW! was going to do a flush mount but the subwoofer outside diameter is 15.65" and the front plate is only 15.5"

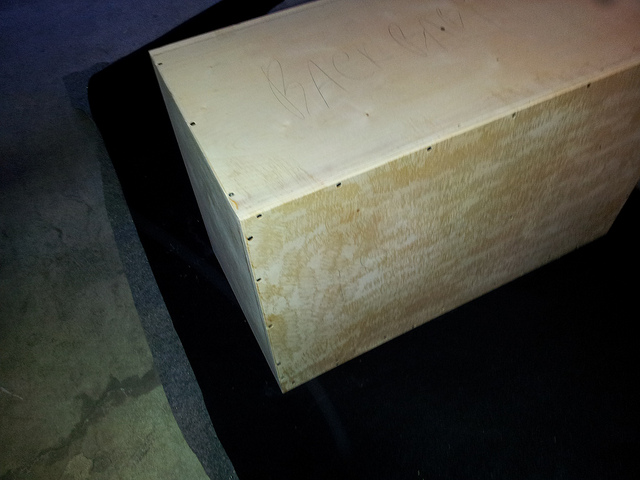

After lots of sanding she is ready for carpet

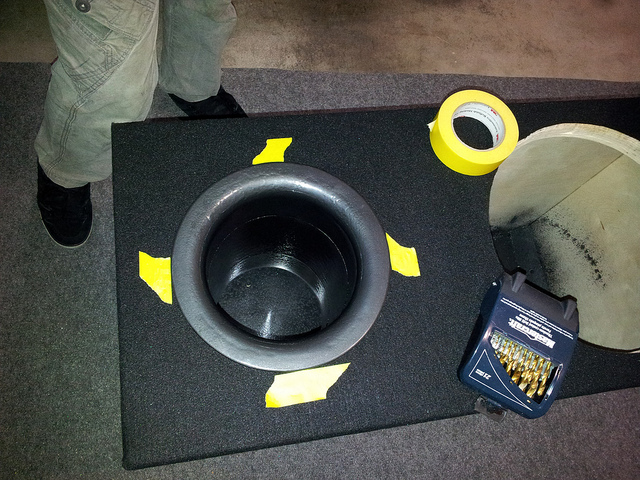

Aligning the aeroport

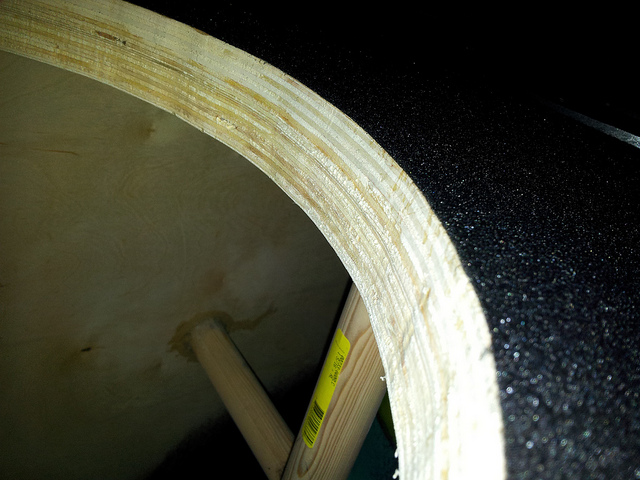

shot of the double baffle

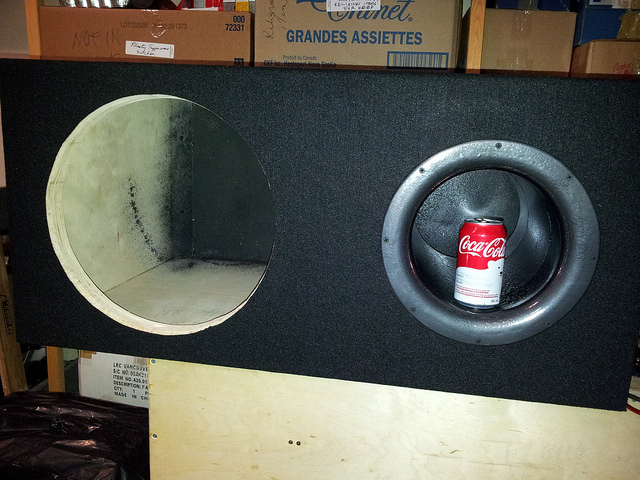

All finished


I can't wait for the sub arrive to hear this thing it should get loud and low.
Attached Thumbnails My box build-8514694226_6f92757dc2_z.jpg   My box build-8514695066_cee4377229_z.jpg   My box build-8514693324_50da7bc6bb_z.jpg   My box build-8514692516_c10145d4ba_z.jpg   My box build-8514690784_06135c37e8_z.jpg

My box build-8513578921_88e8af8814_z.jpg   My box build-8514716554_812ee4604b_z.jpg   My box build-8514687684_3a0b3706e7_z.jpg   My box build-8513578173_f0e67f73bc_z.jpg
gramser57 is offline
Old 02-27-2013, 08:20 PM
  #2
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
Nice box, what sub is going in?
Sonic is offline
Old 02-27-2013, 08:25 PM
  #3
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Posts: 161
Originally Posted by Sonic View Post
Nice box, what sub is going in?
Thanks, Fi BTL N2 15"
gramser57 is offline
Old 02-27-2013, 08:26 PM
  #4
0 Watt CAFz'r
iTrader: (1)

Join Date: Feb 2004
Posts: 48
That box looks really good!
TheTrouserTrout is offline
Old 02-27-2013, 08:36 PM
  #5
Moderator
iTrader: (22)

JohnnyRock1588's Avatar

Join Date: May 2007
Posts: 1,390
nice job! how much powers going to the BTL
JohnnyRock1588 is offline
Old 02-27-2013, 08:40 PM
  #6
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Posts: 161
Originally Posted by JohnnyRock1588 View Post
nice job! how much powers going to the BTL
Digital Designs M3b wired at .5 ohm, I'm going to clamp it when its all installed.
gramser57 is offline
Old 02-27-2013, 08:50 PM
  #7
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
Nice box !, nice sub !, nice amp !, should be fun, let us know how it sounds when it's all finished.
Sonic is offline
