Enclosure Design & Construction Help Post and discuss your car audio box construction, design, fiberglass and other fabrication questions here.

Need help to figure out port size and legth for a dd 3512 please

Thread Tools

Search this Thread

Old 05-09-2012, 10:15 PM
  #21
50 Watt CAFz'r
iTrader: (1)

ancorp's Avatar

Join Date: Apr 2011
Posts: 103
Originally Posted by audio1der
..Yes; the longer the port, the lower the tuning. Same port+ bigger box= higher port tuning.
I think you meant Same port+ bigger box= lower port tuning.

The bigger the box, the more port area is recommended though..
ancorp is offline
Old 05-10-2012, 02:11 PM
  #22
Administrator

Dukk's Avatar

Join Date: Feb 2006
Posts: 16,855
The bigger the box, the more port area is recommended though..
Oh yeah? Please explain why....
Dukk is offline
Old 05-11-2012, 08:46 AM
  #23
50 Watt CAFz'r
Thread Starter

basstoy's Avatar

Join Date: Jan 2009
Posts: 144
I hate to ask this but that box you made for me will not work cause my amps will have nowhere to put them so I was wondering if u can design the port in the front also give me your email address I'll pay pal u some $
basstoy is offline
Old 05-11-2012, 09:54 AM
  #24
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
I will look look at 2 options, that is, putting the port in front (like where the sub is) or at the center on top, let me know if I put the the port on the top center if the amps will fit.

And dont worry with the $, this one if free

Last edited by Sonic; 05-11-2012 at 10:11 AM.
Sonic is offline
Old 05-11-2012, 10:44 AM
  #25
50 Watt CAFz'r
Thread Starter

basstoy's Avatar

Join Date: Jan 2009
Posts: 144
Port in front. Never mind the center. I think my kid will put stuff in it anyway. Lol. Port front will let me use the whole top of the box to make a nice amp rack and wire display.
basstoy is offline
Old 05-11-2012, 10:54 AM
  #26
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
ok got ya
Sonic is offline
Old 05-11-2012, 11:08 AM
  #27
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
would you prefer it at the front top or bottom right hand corner?
Sonic is offline
Old 05-11-2012, 03:29 PM
  #28
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
All other dimensions remain the same, let me know if I forgot any.

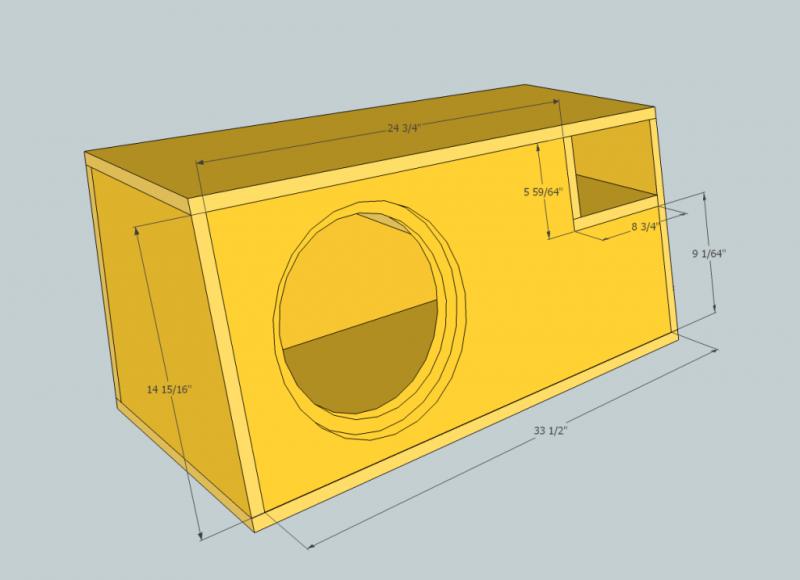

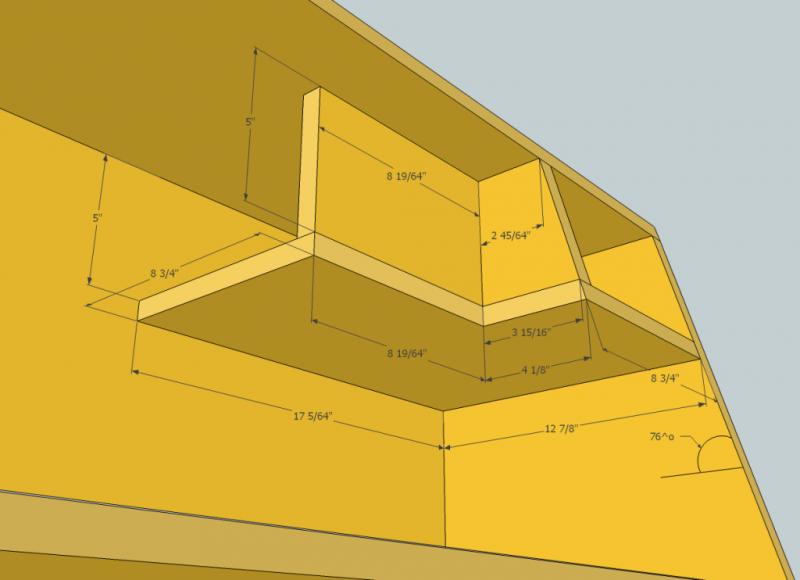

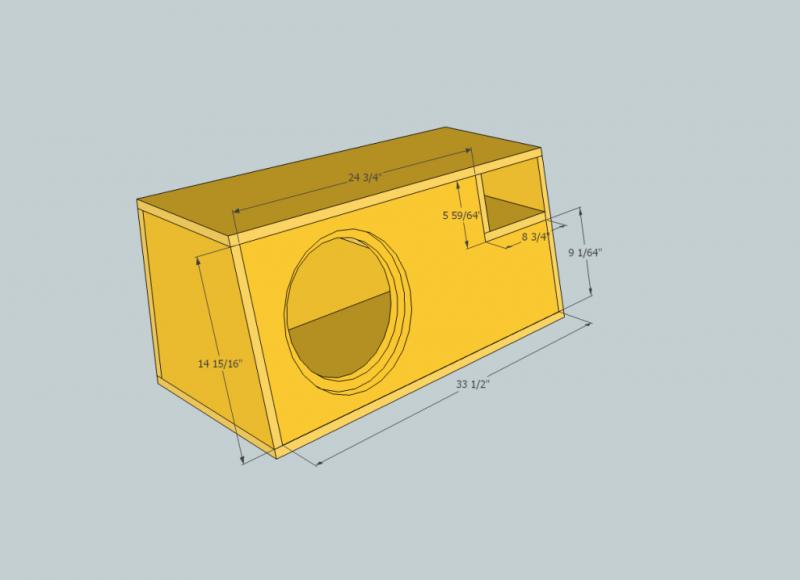

Attached Thumbnails Need help to figure out port size and legth for a dd 3512 please-dd3512-1changes22.jpg   Need help to figure out port size and legth for a dd 3512 please-dd3512-1changes1.jpg   Need help to figure out port size and legth for a dd 3512 please-sds.jpg

Last edited by Sonic; 05-11-2012 at 09:48 PM.
Sonic is offline
Old 05-11-2012, 10:49 PM
  #29
50 Watt CAFz'r
Thread Starter

basstoy's Avatar

Join Date: Jan 2009
Posts: 144
thanks...that box will do fine!...... just out of curiosity, why didnt you do a slot port?
basstoy is offline
Old 05-11-2012, 11:40 PM
  #30
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
fits better in this application, better flow, works better with the theory behind ports, and the list goes on...
Sonic is offline
