Anyone using MiniDSP?
#3
You got some cool toys there Kevin as usual.
Here is a pretty big thread on em.
MiniDSP: An excellent alternative! - DIYMA.com
They are pretty sweet.
Here is a pretty big thread on em.
MiniDSP: An excellent alternative! - DIYMA.com
They are pretty sweet.
#4
Wow.. looks crazy awsome!!!
I looked around the website briefly, and it appears that some amount of work/skill is required to implement them...
Kevin, please tell me more about your experience with these units and what you had to do to get them up and running in your specific application !!!
I looked around the website briefly, and it appears that some amount of work/skill is required to implement them...
Kevin, please tell me more about your experience with these units and what you had to do to get them up and running in your specific application !!!
#5
#6
Wow.. looks crazy awsome!!!
I looked around the website briefly, and it appears that some amount of work/skill is required to implement them...
Kevin, please tell me more about your experience with these units and what you had to do to get them up and running in your specific application !!!
I looked around the website briefly, and it appears that some amount of work/skill is required to implement them...
Kevin, please tell me more about your experience with these units and what you had to do to get them up and running in your specific application !!!
I bought the 4way crossover firmware so I needed 2 boards to cover both left and right. There are digital inputs and outputs (I2S format) so if you have the ability you can bit stream the audio in to bypass the pointless A2D/DA conversions. The sound quality is plenty good as far as I'm concerned but if you wanted you could use your own DAC. It would have to be able take an I2S signal or you would need a converter (which is available from MiniDSP).
If you want to get into advanced DSP you can purchase firmware that allows you to use your own filter coefficients. I didn't need it so didn't bother but if you're interested I can point you to free software that will generate the coefficients for you. Then you simply load them onto the MiniDSP and it does the convolution.

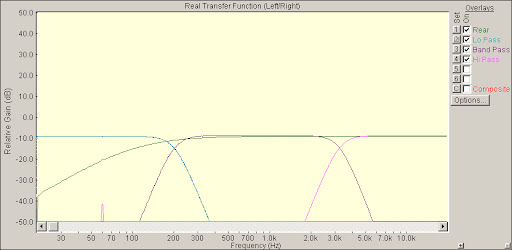

Here are a few pics of my settings and the measured results. Note the 60 Hz bump, that is a result of how I powered it and not the fault of the MiniDSP.
Edit: One more thing I forgot to mention: Notice the output is ~9dB down from the reference (input). This is just the way it's designed. It provides headroom for the EQ sections. I will test it to see what the maximum output voltage is.
Last edited by kevmurray; 01-23-2011 at 07:25 PM. Reason: Addition
#7

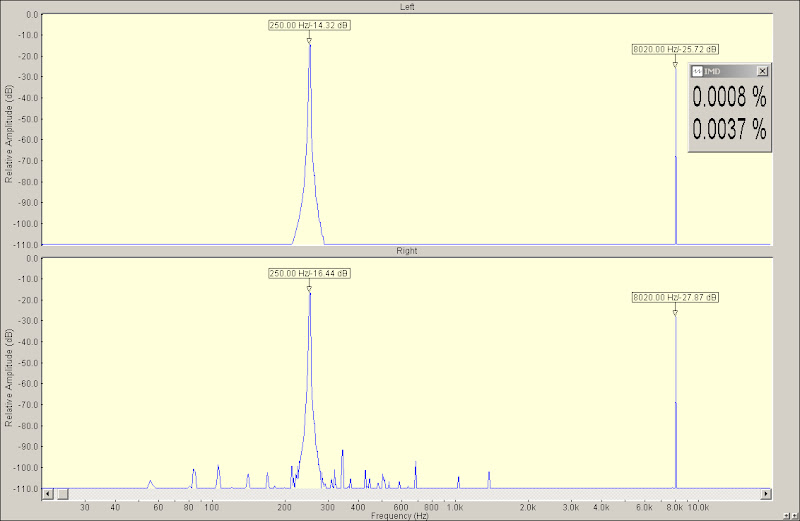

Distortion

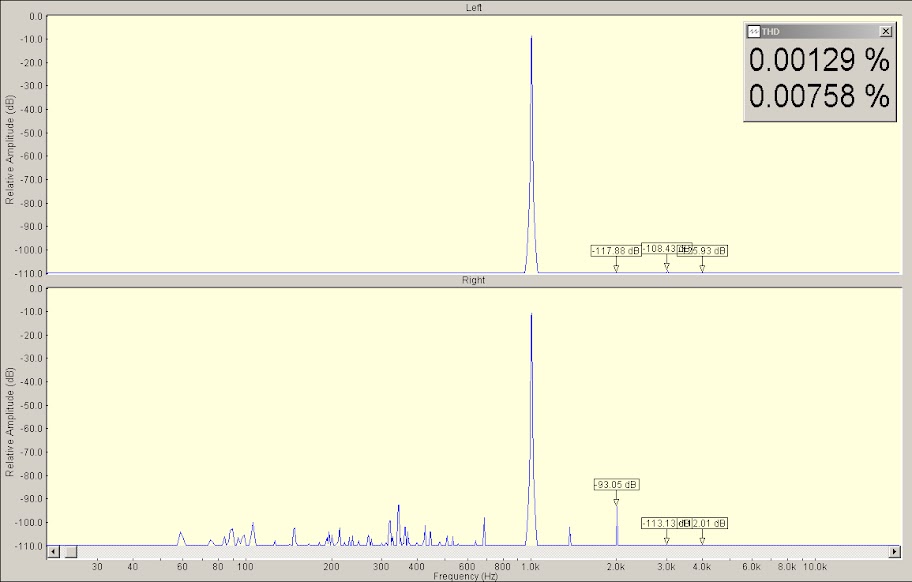

Here is a distortion graph from a test I did today. The upper (left channel) plot is the loopback and is the limit of my test setup. I use an Azus Zonar sound card which has a very low published SNR spec. The lower plot is the MiniDSP performance. The window to the top right gives THD respectively.
One disappointing thing about this board is the maximum output voltage is only 1 volt rms. It's really not a big issue since the gain can be raised on the amps but it's still disappointing.
One disappointing thing about this board is the maximum output voltage is only 1 volt rms. It's really not a big issue since the gain can be raised on the amps but it's still disappointing.
