Info on Type R 12?

Old 08-13-2009, 02:16 PM
  #1
50 Watt CAFz'r
Thread Starter

Join Date: Dec 2008
Posts: 104
Info on Type R 12?

I have two Type R 12's, dual 4ohm coils on each.

I'm trying to design a box for them, but I need some information first.

The program I'm using requires me to fill out this form, and I don't know what half of it means, so I couldn't even look it up if I tried, haha.

Could someone help me out? A capture of the form is attatched.
Attached Thumbnails Info on Type R 12?-typer.jpg
MHarrisEP is offline
Old 08-13-2009, 02:32 PM
  #2
2000 Watt CAFz'r
iTrader: (6)

jalat's Avatar

Join Date: Mar 2008
Posts: 2,736

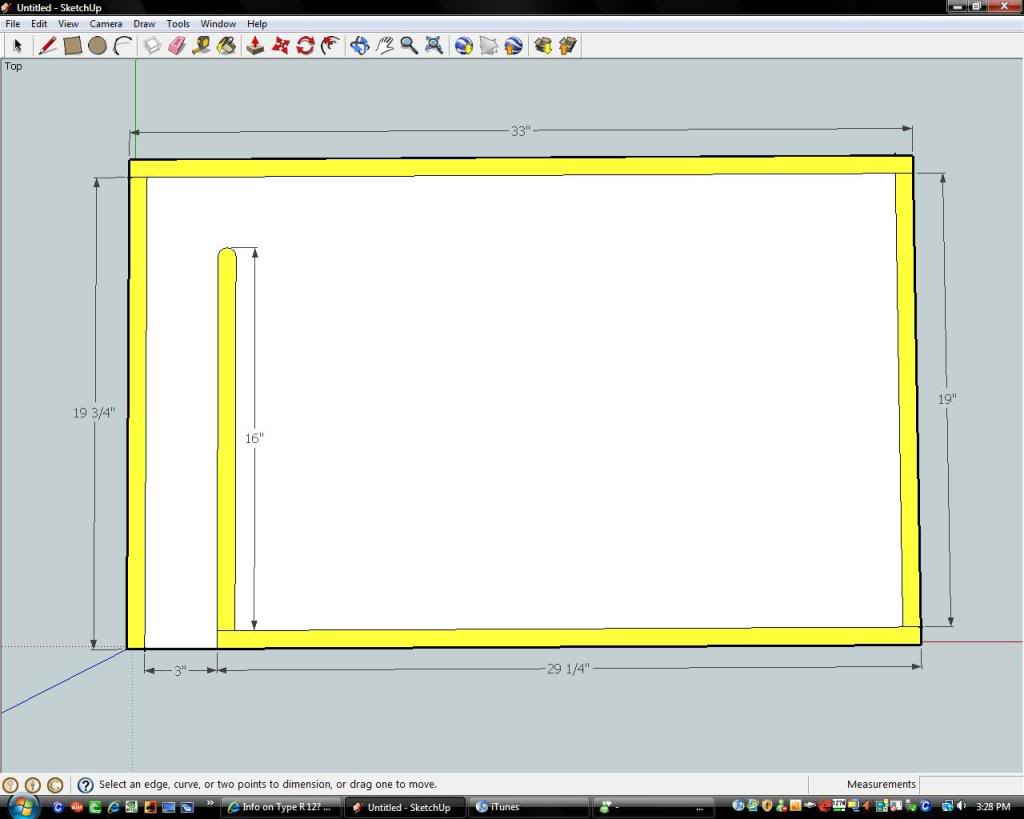

4 Cubic feet @ 34hz

Top - 33"x20.5"
Bottom - 33"x20.5"
Front - 29.25"x13.5"
Back - 33"x13.5"
L Side - 19.75"x13.5"
R Side - 19"x13.5"
Port 1 - 16"x13.5"

Name:  434hz.jpg
Views: 5
Size:  50.8 KB
jalat is offline
Old 08-13-2009, 03:12 PM
  #3
50 Watt CAFz'r
Thread Starter

Join Date: Dec 2008
Posts: 104
Okay, thanks. That's the most efficient box for 2 Type R's?

If it's not too much trouble, I'm interested in knowing how you come up with that?

I know how Sketchup works, haha, but I mean the proportions and such, what's the formula?
MHarrisEP is offline
Old 08-13-2009, 03:13 PM
  #4
50 Watt CAFz'r
iTrader: (1)

Join Date: Nov 2004
Posts: 142
Thats probably before woofer displacement so tuning will change. Youll want to take that into consideration.
Way2slo is offline
Old 08-13-2009, 05:14 PM
  #5
2000 Watt CAFz'r
iTrader: (6)

jalat's Avatar

Join Date: Mar 2008
Posts: 2,736
Originally Posted by Way2slo View Post
Thats probably before woofer displacement so tuning will change. Youll want to take that into consideration.
no, this is after woofer displacement.

i use WinISD to create my subwoofer enclosures. then i use the rockford fosgate enclosure calculator to determine the airspace and dimensions needed to make the enclosure. the above blueprint has been used in a system before and worked great off 800rms. it gets down low really well and matains good balance up the hz range
jalat is offline
Old 08-13-2009, 05:46 PM
  #6
50 Watt CAFz'r
Thread Starter

Join Date: Dec 2008
Posts: 104
Okay, cool. Thanks a lot. Do you happen to have the woofer info for WinISD though? That's what I'm trying to use, but it doesn't have a preset for Type R's, so I need to put all that information in manually.
MHarrisEP is offline
Old 08-16-2009, 10:33 AM
  #7
0 Watt CAFz'r

Join Date: Oct 2008
Posts: 12
Trust jalat's design, he's the one who gave me the box design specs for my 10" Type-R, and it sounds awesome.
I can only imagine what two 12's would sound like, with the right box.

S^G
Satellite^Guy is offline
Old 08-16-2009, 10:47 AM
  #8
50 Watt CAFz'r

mustaine4prez's Avatar

Join Date: Nov 2008
Posts: 223
Jalat knows his . Trust his box design. he uses all the same programs I do and I haven't seen one mistake in any of his designs yet. keep up the good work Jalat.

also you know you can get all those specs on the alpine site right?
Alpine Electronics of America, Inc. - SWR-1242D
mustaine4prez is offline
Old 08-16-2009, 11:55 AM
  #9
50 Watt CAFz'r
Thread Starter

Join Date: Dec 2008
Posts: 104
Oh, I trust him. I'm in the process of building the box now. :] I appreciate sharing the design a lot! I'll let everyone know how it sounds when it's all done!
MHarrisEP is offline
Old 08-16-2009, 09:38 PM
  #10
0 Watt CAFz'r

Join Date: Oct 2008
Posts: 12
Actually, I just remembered that my 10" Type-R came with a booklet that had the specs for all the Type-R's.
If you still want to play with WinISD, the specs are as follows, for the SWR-1242D:

Qts: 0.47
Vas: 45L
Fs: 29Hz
Re: 3.7+3.7ohm
Le: 3.71mH @ 1kHz / 1.67mH @ 20kHz
Xmax: 18.2mm (.0182m)
Z: ?
Qms: 7.89
Qes: 0.50
SPL: 85dB
Pe: ?
BL: ?
Diam: .275m (mounting diam?)
Sd: 480cm^2

I couldn't find some of the specs you needed, and some may need converting...

S^G
