noob question
#1
noob question

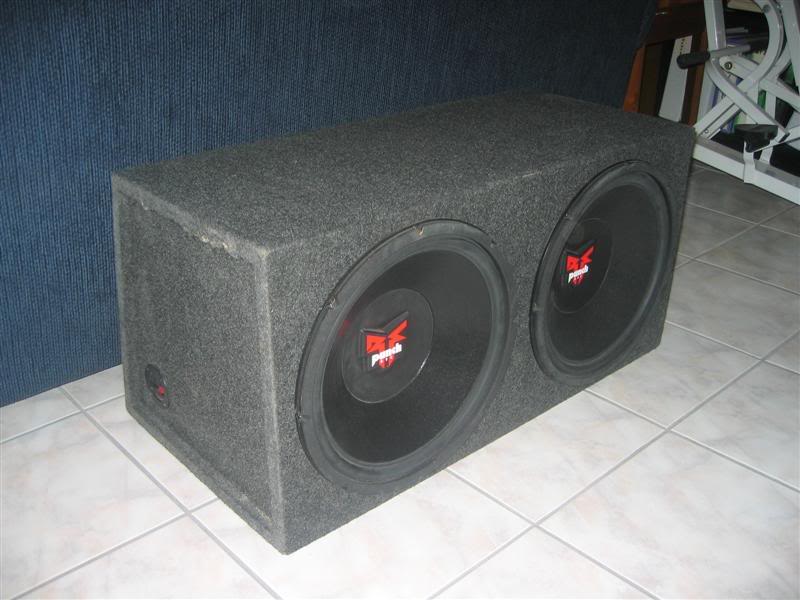

hey guys im new to this thing and im not sure what the best way to hook em all up. I have 2 15 inch rockford fosgate punch dvc's and a phonenix gold 5 channel amp. The Subs are rated for 600W rms each and the amp is rated at 900W but 400W on the mono block channel. So um series or parallel? lol
Thanks
Thanks
#3
Originally Posted by big d
hey guys im new to this thing and im not sure what the best way to hook em all up. I have 2 15 inch rockford fosgate punch dvc's and a phonenix gold 5 channel amp. The Subs are rated for 600W rms each and the amp is rated at 900W but 400W on the mono block channel. So um series or parallel? lol
Thanks
Thanks
#4
You must know both the voice coil arrangement of your subs, dual 4 ohm or dual 2 ohm AND the stability of your amplifiers sub channel (1, 2 or 4 ohm) before you can even think about wiring the subs to it. Post this information then we can make the proper call for you.
#5
amp is stable to 2 ohm ill post up the specs
Number of Channels 5
RMS Power (4 ohms) 50 watts x 4 chan. + 150 watts x 1 chan.
RMS Power (2 ohms) 75 watts x 4 chan. + 250 watts x 1 chan.
RMS Power (1 ohm) Not Stable
Bridged RMS Power 150W x 2 (at 4 ohms) + 250W x 1 (at 2 ohms)
Peak Power Output 900 watts (125W x 4 + 400W x 1)
Min. Impedance Unbridged 2 ohms
Min. Impedance Bridged 4 ohms
THD @ Rated RMS Power N/A
Speaker Level Inputs No
Amp Preamp Outputs No
Built-in Crossover Yes - HP / LP
High-Pass Crossover 40 - 400 Hz
Low-Pass Crossover 40 - 400 Hz
Subsonic Filter N/A
Signal-to-Noise Ratio 110 dB
Channel Separation N/A
Bass Boost 0 - 15 dB
Bass/Gain Remote N/A
Fan Cooled N/A
Fuse Rating 20A x 2 + 40A x 1
Number of Channels 5
RMS Power (4 ohms) 50 watts x 4 chan. + 150 watts x 1 chan.
RMS Power (2 ohms) 75 watts x 4 chan. + 250 watts x 1 chan.
RMS Power (1 ohm) Not Stable
Bridged RMS Power 150W x 2 (at 4 ohms) + 250W x 1 (at 2 ohms)
Peak Power Output 900 watts (125W x 4 + 400W x 1)
Min. Impedance Unbridged 2 ohms
Min. Impedance Bridged 4 ohms
THD @ Rated RMS Power N/A
Speaker Level Inputs No
Amp Preamp Outputs No
Built-in Crossover Yes - HP / LP
High-Pass Crossover 40 - 400 Hz
Low-Pass Crossover 40 - 400 Hz
Subsonic Filter N/A
Signal-to-Noise Ratio 110 dB
Channel Separation N/A
Bass Boost 0 - 15 dB
Bass/Gain Remote N/A
Fan Cooled N/A
Fuse Rating 20A x 2 + 40A x 1
#6
Originally Posted by big d
amp is stable to 2 ohm ill post up the specs
Number of Channels 5
RMS Power (4 ohms) 50 watts x 4 chan. + 150 watts x 1 chan.
RMS Power (2 ohms) 75 watts x 4 chan. + 250 watts x 1 chan.
RMS Power (1 ohm) Not Stable
Bridged RMS Power 150W x 2 (at 4 ohms) + 250W x 1 (at 2 ohms)
Peak Power Output 900 watts (125W x 4 + 400W x 1)
Min. Impedance Unbridged 2 ohms
Min. Impedance Bridged 4 ohms
THD @ Rated RMS Power N/A
Speaker Level Inputs No
Amp Preamp Outputs No
Built-in Crossover Yes - HP / LP
High-Pass Crossover 40 - 400 Hz
Low-Pass Crossover 40 - 400 Hz
Subsonic Filter N/A
Signal-to-Noise Ratio 110 dB
Channel Separation N/A
Bass Boost 0 - 15 dB
Bass/Gain Remote N/A
Fan Cooled N/A
Fuse Rating 20A x 2 + 40A x 1
Number of Channels 5
RMS Power (4 ohms) 50 watts x 4 chan. + 150 watts x 1 chan.
RMS Power (2 ohms) 75 watts x 4 chan. + 250 watts x 1 chan.
RMS Power (1 ohm) Not Stable
Bridged RMS Power 150W x 2 (at 4 ohms) + 250W x 1 (at 2 ohms)
Peak Power Output 900 watts (125W x 4 + 400W x 1)
Min. Impedance Unbridged 2 ohms
Min. Impedance Bridged 4 ohms
THD @ Rated RMS Power N/A
Speaker Level Inputs No
Amp Preamp Outputs No
Built-in Crossover Yes - HP / LP
High-Pass Crossover 40 - 400 Hz
Low-Pass Crossover 40 - 400 Hz
Subsonic Filter N/A
Signal-to-Noise Ratio 110 dB
Channel Separation N/A
Bass Boost 0 - 15 dB
Bass/Gain Remote N/A
Fan Cooled N/A
Fuse Rating 20A x 2 + 40A x 1
#8
RFD2115
15 Inch Dual Voice Coil SubWoofer w/ Cast Aluminum Frame
Power handling(RMS) - 600 Watts
Power handling(Peak) - 1200 Watts
Size 15 Inch
Type Woofer
Voice Coil Configuration - Dual
Material - Aluminum
Description - 3" 4-Layer
Cone Material Paper -
FIBERlock
Frame Material Frame - Cast
Material - Aluminum
Surround Material Rubber
Description - Santoprene BART
Specifications Power Handling(RMS)- 600 Watts
Power Handling(Peak)- 1200 Watts
Impedance-2 Ohms
Sensitivity - 89 db
Vas - 6.39
Fs - 22
Qts - .45
Xmas - 13.97
Dimensions Depth Top Mount - 6.9375 in.
Cutout - 13.8125 in.
Displacement - 432 cu in.
Enclosure Sealed Box-
Recommended Volume (Cubic Feet)- 2.50
Recommended Volume (Liters)- 70.80
Ported Box
Recommended Volume (Cubic Feet)- 2.50
Recommended Volume(Liters)- 70.80
15 Inch Dual Voice Coil SubWoofer w/ Cast Aluminum Frame
Power handling(RMS) - 600 Watts
Power handling(Peak) - 1200 Watts
Size 15 Inch
Type Woofer
Voice Coil Configuration - Dual
Material - Aluminum
Description - 3" 4-Layer
Cone Material Paper -
FIBERlock
Frame Material Frame - Cast
Material - Aluminum
Surround Material Rubber
Description - Santoprene BART
Specifications Power Handling(RMS)- 600 Watts
Power Handling(Peak)- 1200 Watts
Impedance-2 Ohms
Sensitivity - 89 db
Vas - 6.39
Fs - 22
Qts - .45
Xmas - 13.97
Dimensions Depth Top Mount - 6.9375 in.
Cutout - 13.8125 in.
Displacement - 432 cu in.
Enclosure Sealed Box-
Recommended Volume (Cubic Feet)- 2.50
Recommended Volume (Liters)- 70.80
Ported Box
Recommended Volume (Cubic Feet)- 2.50
Recommended Volume(Liters)- 70.80
#9
The specs say 2 ohm, so they are probably dual 4. Since your amp isn't stable at 1 ohm, you are limited to wiring them in series to show the amp a 4 ohm load. That will be ~75watts to each sub which isn't so great.
You'd probably be better off to just use one sub. Then it will see ~250watts.
You'd probably be better off to just use one sub. Then it will see ~250watts.
