sub box

Old 06-05-2014, 09:32 AM
  #1
0 Watt CAFz'r
Thread Starter

Join Date: Apr 2014
Posts: 36
sub box

hey i'm looking for some help with a sub box, sub is in a box too small right now, so need something bigger, i was looking at ported, i can't really find the exact specs for my sub, these are the specs for the same make 15 inch at "2000" rms but mine is "rated" 5000 its impedance is 1.5 ohms, but I would assume the mounting depth should be same or shouldnt change much

Diameter: 15 Inch
Impedance: 2 Ohm
Sensitivity: 90.6dB @ 1w/1m
Mounting Depth: 9 3/8"
Mounting Diameter: 14.2"
Vented Box: 5 cu/ft
Port: 48 sq/in 13.0" Long
Sealed Box: 2-2.5 cu/ft
Weight: 57 lbs.
HitSquad is offline
Old 06-05-2014, 10:13 AM
  #2
50 Watt CAFz'r
iTrader: (1)

Join Date: Oct 2011
Posts: 161
What brand of sub is this and your vehicle?
gramser57 is offline
Old 06-05-2014, 10:32 AM
  #3
0 Watt CAFz'r
Thread Starter

Join Date: Apr 2014
Posts: 36

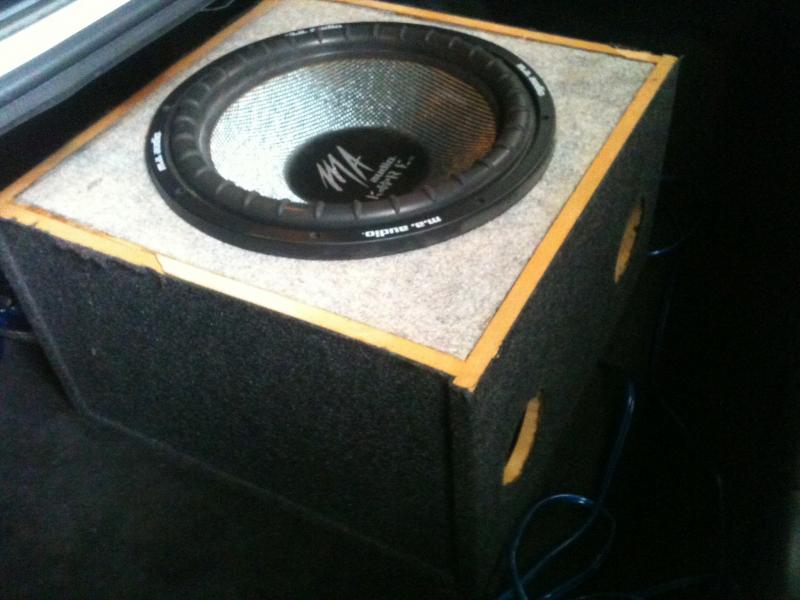

this is actually as specific for my sub as I will find

5 Cubic Foot Optimum Enclosure: Vented 40Hz - (2) 5" round x 9.5" deep or slotted 10" x 5" x 9.5" 50Hz - (2) 8" round x 7"

MA Audio Hard Kore 15''
Attached Thumbnails sub box-10348777_10202837571714837_4855051850093337596_o.jpg
HitSquad is offline
Old 06-05-2014, 10:33 AM
  #4
0 Watt CAFz'r
Thread Starter

Join Date: Apr 2014
Posts: 36
its in a 2001 camry
HitSquad is offline
Old 06-05-2014, 10:34 AM
  #5
0 Watt CAFz'r
Thread Starter

Join Date: Apr 2014
Posts: 36
i just found those specific dimensions, pretty much 1 minute ago
HitSquad is offline
Old 06-05-2014, 10:40 AM
  #6
50 Watt CAFz'r
iTrader: (1)

Join Date: Oct 2011
Posts: 161
Measure your trunk and see your maximum dimensions, factoring in you will need to slide the box through the trunk opening. To make it easy to build I would suggest using a 6" aeroport which can be purchased here: Creative Sound - Product Details

You essentially build a square box and make 2 round circle cuts for the port and subwoofer. I can help you with tuning once you figure out your dimensions.
gramser57 is offline
Old 06-05-2014, 10:47 AM
  #7
0 Watt CAFz'r
Thread Starter

Join Date: Apr 2014
Posts: 36
cool thanks man I appreciate it, I was kind of thinking of going with this design just for the looks
but I suppose a square box would be easiest to build?
Attached Thumbnails sub box-spbox05.gif
HitSquad is offline
Old 06-05-2014, 11:13 AM
  #8
0 Watt CAFz'r
Thread Starter

Join Date: Apr 2014
Posts: 36
I have about 19.5 inches height (max) anything higher won't fit,
so I'm thinking 19.5 height, 30 width, 15 inch depth, will give me 5 cubic feet, does that sound about right? or am I way off
for a ported box
HitSquad is offline
Old 06-05-2014, 11:20 AM
  #9
50 Watt CAFz'r
iTrader: (1)

Join Date: Oct 2011
Posts: 161
19height x 30 width x 15 length gives you about 3.9 cubes net for a sealed box not factoring in port. It seems 2 10" woofers would be ideal in your trunk.
gramser57 is offline
Old 06-05-2014, 11:33 AM
  #10
0 Watt CAFz'r
Thread Starter

Join Date: Apr 2014
Posts: 36
how did you get that? I plugged the numbers in two of those online subwoofer box designs
HitSquad is offline
