Poor spl results

Old 06-28-2010, 03:37 PM
  #1
0 Watt CAFz'r
Thread Starter

Join Date: Nov 2007
Posts: 34
Poor spl results

So, this weekend I went out to a sound comp. I had expected better results than I achieved, but still had a lot of fun, and met a bunch of good people from the area.

Here is what has been done.

200A Alternator, 1/0 Big Three, 4/0 power cable, a Group 31 under the hood and a large interstate deep cycle in the trunk.

Im running a Fusion NV2500 Amp, 4 Power Series JBL 1022 subs, in this box here.

I hit 140.1 @35hz.

Last year in my old sealed box I hit 141 at 35hz.

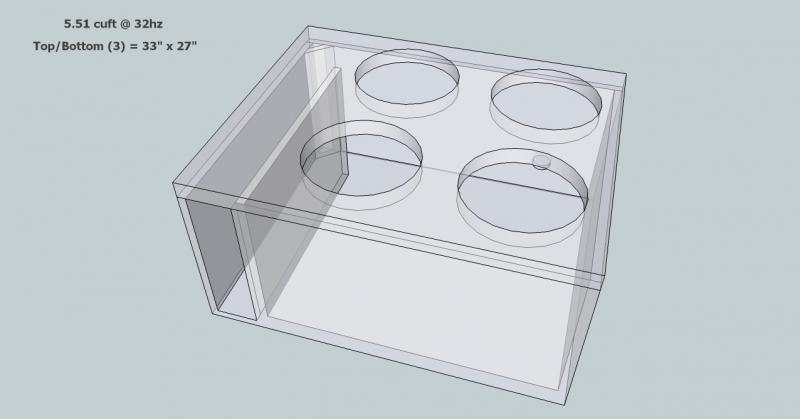

This is what I have now,



The box is tuned to 32hz. I am disappointed, I thought for sure with the upgrades it would have been a better score than last year. However, the score was worse...

Any ideas?
Attached Thumbnails Poor spl results-new-image.jpg
Zeptoplix is offline
Old 06-28-2010, 03:44 PM
  #2
Moderator

iTrader: (2)

wasted911's Avatar

Join Date: Nov 2005
Posts: 1,285
MOAR PORT AREA!

Tuning higher will also get you louder, but you give up some of the lower notes.
wasted911 is offline
Old 06-28-2010, 03:47 PM
  #3
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
Welcome to CCA bro. I'm the Windstar from that comp. Send me some maximum measurements and I'll play with the figures for ya.

What model number are the subs again?

It was nice to meet you by the way. Any chance you are the one that has the cover for my dB Drag CD? I got the CD, someone forgot to return the case. lol

ALSO, don't forget they placed the meter in a messed up place (upper right hand corner 2"x2"). I only did 145.4 at that show and did 147.6 at a comp on Sunday. A lot of that low score was crappy mic placement.

Last edited by DeadlySones; 06-28-2010 at 03:51 PM.
DeadlySones is offline
Old 06-28-2010, 03:57 PM
  #4
Level 3 Supporter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
4/0 wire is actually bad. no joke. try to replace it with some 1/0 instead.

needs higher tuning for good spl.
Father Yuli is offline
Old 06-28-2010, 04:04 PM
  #5
0 Watt CAFz'r
Thread Starter

Join Date: Nov 2007
Posts: 34
Thanks for the welcome!

I agree with you on mic placement, however it was the same position as last year.

The subs are JBL model P1022. I could likely pull off a box similar to the one fox_racin4 has in his grand am, as for the dimensions, the current box I have is as tall as it can be. I could maybe go slightly wider and slightly longer, probably do upto 38x33, anything larger, I'd have to try my mad skillz building in the car and Im quite sure it would be a disaster.... But I might be willing to give it a shot.

It was great meeting you as well, that was the most fun part, hanging out and messing around with the cars!
Zeptoplix is offline
Old 06-28-2010, 04:05 PM
  #6
0 Watt CAFz'r
Thread Starter

Join Date: Nov 2007
Posts: 34
Originally Posted by Father Yuli View Post
4/0 wire is actually bad. no joke. try to replace it with some 1/0 instead.

needs higher tuning for good spl.
What makes it bad?
Zeptoplix is offline
Old 06-28-2010, 04:09 PM
  #7
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
4 ga or 4/0ga? lol

And how tall including the subs. Whats the tallest you can slide in from the inside. You might be able to go with a design like Dereks. Would be MUCH MORE efficient too.
DeadlySones is offline
Old 06-28-2010, 04:15 PM
  #8
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
Hell, Derek (Fox_racin4) has another box that might just fit right in for sale. Looks almost like the one you saw on Sat. Send him a PM or send me a email and I'll forward it to him.
DeadlySones is offline
Old 06-28-2010, 05:32 PM
  #9
--SPECIAL ED--

Join Date: Dec 2008
Posts: 467
the box ive got here is 14 tall 36 wide and 31 deep are you able to take that cast ring off your subs? they would fit in the box!

also try the port on the side if you wanna keep that set up subs up port side
fox_racin4 is offline
Old 06-28-2010, 06:18 PM
  #10
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
Don't you have a forward firing box still for 4 10's? Your old one?

Last edited by DeadlySones; 06-28-2010 at 06:23 PM.
DeadlySones is offline
