A-pillar/dash pods for clarity

Old 06-07-2012, 04:46 PM
  #1
50 Watt CAFz'r
Thread Starter

Join Date: Jun 2011
Posts: 320
A-pillar/dash pods for clarity

Does anyone have experirnce with a-pillar or dash pods instead of kickpanels, for increased clarity & soundstage?
Really considering this with some quality 4" coaxes but its a daunting project.
Build logs, photos or opinions are welcome.
audio1der is offline
Old 06-07-2012, 05:48 PM
  #2
50 Watt CAFz'r

Join Date: Mar 2012
Posts: 59
I'm about to undertake this myself with some 10cm full-range drivers. I'll keep you posted (progress may be slow). Here's a few pics for inspiration if you need it: http://www.diymobileaudio.com/forum/...t-pillars.html
stochastic is offline
Old 06-07-2012, 07:33 PM
  #3
Moderator

iTrader: (2)

wasted911's Avatar

Join Date: Nov 2005
Posts: 1,285
I wouldnt have a mid below the dash ever again after getting mine set up. The windshield can definitely play a factor in the frequency response though,
wasted911 is offline
Old 06-07-2012, 08:49 PM
  #4
500 Watt CAFz'r
iTrader: (1)

jstoner22's Avatar

Join Date: Jun 2009
Posts: 846
I was hesitant to undertake such a project, but it was absolutely worth investing in.
If you have the means, definitely give it a shot.
jstoner22 is offline
Old 06-08-2012, 03:14 PM
  #5
Administrator

Dukk's Avatar

Join Date: Feb 2006
Posts: 16,855
One of the biggest hurdles can be that the driver side speaker will often overpower the sound from the passenger side speaker. Time alignment is usually needed.

If I ever get my butt in gear I will be running a 3way set in the front with the mid and tweet in the a-pillar this time around.
Dukk is offline
Old 06-11-2012, 09:56 AM
  #6
50 Watt CAFz'r
Thread Starter

Join Date: Jun 2011
Posts: 320
Huh; seems like the idea is supported.
Any thoughts on angling?
audio1der is offline
Old 06-11-2012, 09:58 AM
  #7
500 Watt CAFz'r
iTrader: (1)

jstoner22's Avatar

Join Date: Jun 2009
Posts: 846
on axis if possible.
jstoner22 is offline
Old 06-11-2012, 10:21 AM
  #8
500 Watt CAFz'r
iTrader: (1)

jstoner22's Avatar

Join Date: Jun 2009
Posts: 846

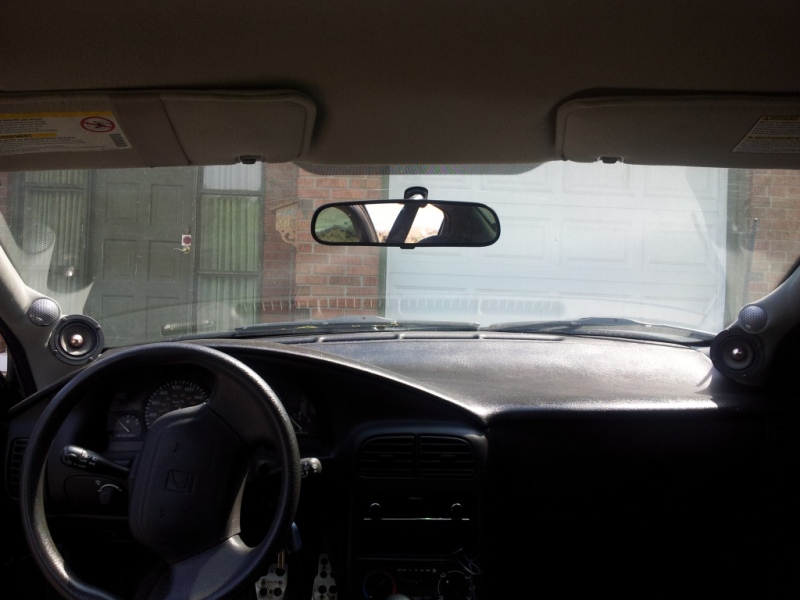

thats what i had done on axis (attached). maybe something like that?
Attached Thumbnails A-pillar/dash pods for clarity-20120611_110759compressed.jpg
jstoner22 is offline
Old 06-11-2012, 02:14 PM
  #9
50 Watt CAFz'r
Thread Starter

Join Date: Jun 2011
Posts: 320
Nice. I would need something similar; more of an a-pillar pod than dash pod due to the way the a-pillar attches to the a-pillar post.
I'm thinking of building the baffles and using something temporary for an eclosure so I can try them in the actual position prior to building the pods.
I'm leaning towards on-axis at ear level, but will do what is neccessary to sound right, in both seats, to me.
audio1der is offline
Old 06-11-2012, 03:28 PM
  #10
50 Watt CAFz'r

Join Date: Mar 2012
Posts: 59
It depends on the driver as to how on-axis the frequency response is. Some have much better off-axis response curves than others. A surprising number of people claim that off-axis mounting in the A-pillar sounds wonderful - a chunk of these people have also run on-axis setups. Best method is to throw your driver into a tiny temporary enclosure (think duct tape and a tuna can or cardboard box), wire them up, then put them in their future home, adjust to find the angle that your ears enjoy best.

With my full-range project I found about a 15degree off axis mounting gave the most pleasing results. Now to build them...
stochastic is offline
