Built like a bomb shelter...

Thread Tools

Search this Thread

Old 01-25-2007, 10:12 PM
  #1
500 Watt CAFz'r
Thread Starter
iTrader: (2)

Lspade69's Avatar

Join Date: Jan 2006
Posts: 607
Angry Built like a bomb shelter...

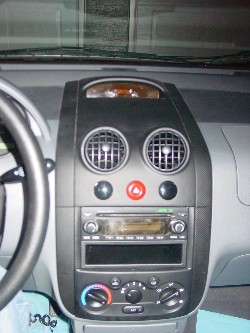

Ok, so I really want to get my head unit in to my new aveo. At first the speakers sounded great but as I cranked it up it got worse and worse and then I realized how bad I need to get my equipment into this vehicle. So I started checkin things out and pushing and pulling on different parts and I don't know what to do!? I don't even know where to start to get this dash off. I took a picture of it, maby you guys can help steer me in the right direction or tell me where to put the screwdriver. (are there screws? plastic clips? reusable clips? anything?)

Also, how the heck do i get my door covering off. With my blazer I had to rip off a few plastic clips and buy some new ones and hopefully that is not the case with this door. Do you guys know where I begin on taking off this door so that I can reach my speakers? (no pic included but I am talkin about an 04 chevy aveo)

Thanx for the help guys.
Attached Thumbnails Built like a bomb shelter...-1st-picture-.jpg
Lspade69 is offline
Old 01-25-2007, 10:45 PM
  #2
1000 Watt CAFz'r
iTrader: (1)

zinger002's Avatar

Join Date: Jul 2006
Posts: 1,445
look for screw's under the door handle and in any random places you can think of.
most new cars have little pop clips that should not break, but they need a decent amount of force to get them off...
zinger002 is offline
Old 01-25-2007, 11:00 PM
  #3
1000 Watt CAFz'r
iTrader: (1)

Tom.F.1's Avatar

Join Date: Feb 2006
Posts: 1,217
You'll have to be very careful popping the clips on the plastic cover that surrouds the radio and heater controls. It comes off. But first time i took mine off it came out in pieces. $55.68 at your local GM dealer. They gave me 2 for the price of one.
The doors will have some screws at the bottom, Big Torx head screws at the door handle. Then the panel pops off at the bottom, try not to break the clips. Then lift up off the window frame.
Tom.F.1 is offline
Old 01-25-2007, 11:39 PM
  #4
4000 Watt CAFz'r
iTrader: (5)

zzzzzzz's Avatar

Join Date: Jan 2005
Posts: 4,643
Originally Posted by Tom.F.1
You'll have to be very careful popping the clips on the plastic cover that surrouds the radio and heater controls. It comes off. But first time i took mine off it came out in pieces. $55.68 at your local GM dealer. They gave me 2 for the price of one.
The doors will have some screws at the bottom, Big Torx head screws at the door handle. Then the panel pops off at the bottom, try not to break the clips. Then lift up off the window frame.
NO NO NO get hamer hit it out then get a saw cut out some room for a tv than f/g some speakers in it ..............ok i would go slow and very careful popping the clips and if you f it up 55.68 is not bad for one
zzzzzzz is offline
Old 01-26-2007, 07:33 AM
  #5
500 Watt CAFz'r
Thread Starter
iTrader: (2)

Lspade69's Avatar

Join Date: Jan 2006
Posts: 607
Ok, if worst comes to worst $55 isn't too bad. So should I start at the top near the clock or down by the heater and conditioning controls? And should it be an upward motion or a motion traveling towards the back when I pull it off?
Lspade69 is offline
Old 01-26-2007, 02:54 PM
  #6
Administrator

Dukk's Avatar

Join Date: Feb 2006
Posts: 16,855
Lightbulb

$55 potentially for a new piece or $45 for a professional to do it... hmmm...
Dukk is offline
Old 01-26-2007, 03:22 PM
  #7
500 Watt CAFz'r
Thread Starter
iTrader: (2)

Lspade69's Avatar

Join Date: Jan 2006
Posts: 607
I never thought of it that way. That sounds like a grand idea too but I like being able to say, "I installed everything". I dunno why, but it is just something I am proud of.
Lspade69 is offline
Old 01-26-2007, 06:06 PM
  #8
500 Watt CAFz'r

matt_p's Avatar

Join Date: Mar 2006
Posts: 509
Found this... might help you


I just did this a few weeks ago on my '04. The process really was quite simple. On both sides of the radio are trim pieces that extend from the top of the radio down to the bottom of the storage bin (they don't go around the top or bottom. just trying to give you reference point). All you need to do is pry these 2 pieces off. I started at the bottom. I used a screw driver to get underneath the trim piece but that was probably a bad choice of tools since I scratched the grey plastic on the adjoining dash piece slightly (probably only noticeable by me). Once you get these 2 trim pieces off the hard work is done. Next it's a matter of removing the 4 screws holding the radio/storage bin assembly in. These screws should be obvious to you. Now the radio/storage bin assembly can be removed. Unplug the wiring harness and antenna. Now remove the screws that fasten the radio to the storage bin. It really only took me about 5 minutes to get the old radio out. For the installation I used a wiring harness which cost me $10. You should definitely get one. As far as mounting the new radio, I re-used the storage bin/radio assembly. All I had to do was enlarge a couple of the holes in the factory mounting assembly because the new radio mounting screws were of larger diameter. You'll also notice that on top of the storage bin there are a couple of nubs that fit into the factory stereo. I had to remove these. I used a wood chisel. You could probably use a utility knife or figure something else out. Just be careful to stay away from the front edge so you don't mar any plastic that will show. It was definitely worth saving the $20 that a new mounting kit would cost. And I can only imagine that the only difference would be it doesn't have the nubs and maybe more and/or larger mounting holes. If it ever warms up above the single digits here I can take some pictures of how to remove the trim and give you an idea of what to expect when you open it up. This was the first time I ever mounted a stereo and was not nearly as bad as I thought it would be. One last note. You will need to use the trim piece that goes around the face on the new radio.
Good luck and let me know if you still have questions.

Update 5/19/2005: Finally, pictures.
http://pic6.picturetrail.com/VOL144/1003147/7441242/97250467.jpg
http://pic6.picturetrail.com/VOL144/1003147/7441242/97250460.jpg
http://pic6.picturetrail.com/VOL144/1003147/7441242/97250457.jpg
http://pic6.picturetrail.com/VOL144/1003147/7441242/97250454.jpg
http://pic6.picturetrail.com/VOL144/1003147/7441242/97250450.jpg
Removing the stock stereo is pretty easy... once you get the covers off. There are two plastic panels, one on each side of the stereo. These pieces come off. I used a credit card to remove them, sliding the card behind the pointy end and edging it carefully upward until the bottom became unsnapped. Then I just pulled on the wider part of the panel and the whole thing popped off. Easy.

Then you will see that the stereo is held in by two screws, one on each side. Use a long screw driver to get these (might want to use one with a magnetic head so the damn screws don't fall off into your dash, although they will probably just fall out onto the floor).

The harness has a clip on it. Just push down on the clip and pop it off. The antennae is plugged in with a very old school banana connector. Easy. Just yank it out.

Then you are done. There is not much play with the wires. The manufacturer did not waste any money on excess wiring and you will find it hard to select a good remote connection if you are installing an amp. I eventually just tapped into the cigarette lighter. But even that connection had NO slack. Every wire is either coated in foam or has plastic loom around it or both! So good luck. I would certainly recommend a wiring harness adapter if you can get one with whatever head you buy. Get it from crutchfield. They will likely have it and will include it for free.

The pannels snap back into place easily and tightly. You could remove the other four screws for the other dash units (incuding the ac controls) if you need more room to maneuver or are installing a double din head.
matt_p is offline
Old 01-26-2007, 06:46 PM
  #9
500 Watt CAFz'r
Thread Starter
iTrader: (2)

Lspade69's Avatar

Join Date: Jan 2006
Posts: 607
HOLY CRAP! Perfect! Haha, thank you very much. I should have probably used the search button. Thanx.
