Diagram for bridged 4 channel PLEASE
01-16-2013, 10:51 PM
#1
0 Watt CAFz'r
Thread Starter
Join Date: Jan 2013
Posts: 2
Diagram for bridged 4 channel PLEASE
I have a PolkAudio PA660 amp I just bought. TRYING to hook up to 2 soundstream taratula 6x9's rated 150rms which came with a HF LF crossover. The amp is 4 channel 75x4 so I bought it in attempt to bridge down to 150x2. However I am stuck.

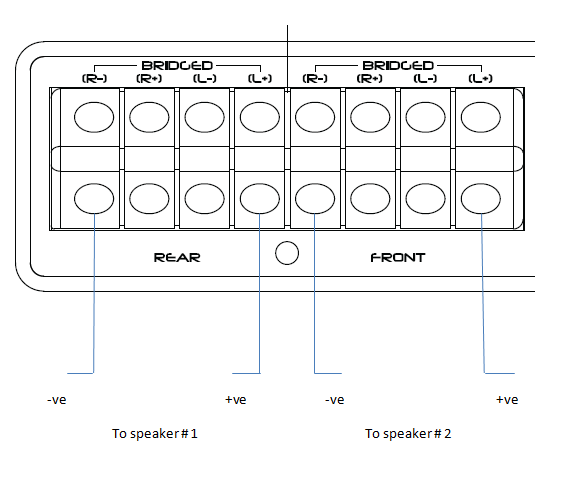

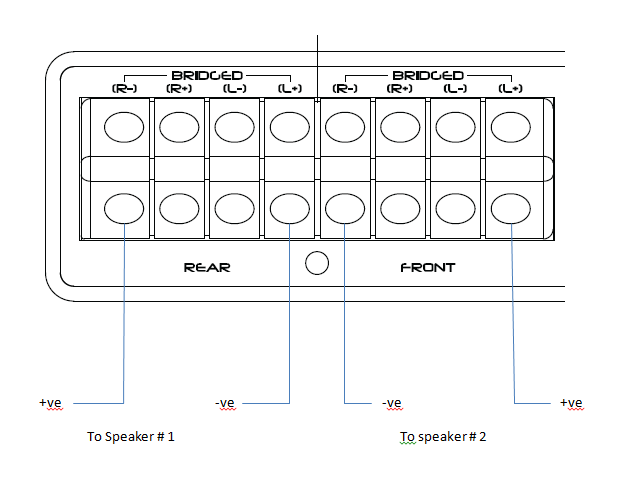

Amp looks like this:
_bridged__ _bridged_
|.............| |.............| (ignore the periods)
R- R+ L- L+ R- R+ L- L+
I am so confused as to which speakers slots I put the wires into to make it bridged. It says "bridged" above each set of RRLL but there are lines that go to the outer ones as shown above, does this mean only those outer are the bridged ones or all 4 are bridged? If anyone could shed some light on this for me it would be VERY MUCH appreciated
Amp looks like this:
_bridged__ _bridged_
|.............| |.............| (ignore the periods)
R- R+ L- L+ R- R+ L- L+
I am so confused as to which speakers slots I put the wires into to make it bridged. It says "bridged" above each set of RRLL but there are lines that go to the outer ones as shown above, does this mean only those outer are the bridged ones or all 4 are bridged? If anyone could shed some light on this for me it would be VERY MUCH appreciated
Last edited by Austin.a; 01-16-2013 at 11:37 PM.
