Install related Need a car audio install related question answered? Have a tip you want to share, post in here!

Wiring question Kenwood hu and 2003 sx2.0(neon)

Thread Tools

Search this Thread

Old Nov 7, 2010 | 01:29 AM
  #1
Sparx123's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Jul 2009
Posts: 20
Wiring question Kenwood hu and 2003 sx2.0(neon)

my friend got his stereo installed at a local shop and now that he's changed cars (now a 2005 Civic SI) he wants his hu from the neon installed into his civic... I've been looking at the harness connections (to hu and to car harnesses) and wondering why the blue/white wire from the hu is connected to the blue/white wire from the to car harness... Isn't the blue/white wire supposed to be connected to the remote wire of his amp? When I took the huu out of his neon for him I don't remember where the remote wire was run to... Does anyone know if the to car wiring harness for his civic needs the remote wire from the hu connected to it? If you need anymore info or even pics of the neon/kenwood wiring job just ask...
Old Nov 7, 2010 | 02:32 AM
  #2
wasted911's Avatar
Moderator

iTrader: (2)

Joined: Nov 2005
Posts: 1,285
been a while since I looked at a deck but I believe blue-white is power antenna and blue is remote.
Old Nov 7, 2010 | 11:13 AM
  #3
Sparx123's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Jul 2009
Posts: 20
So the blue/white would go to the power ant. aswell as the remote wire?

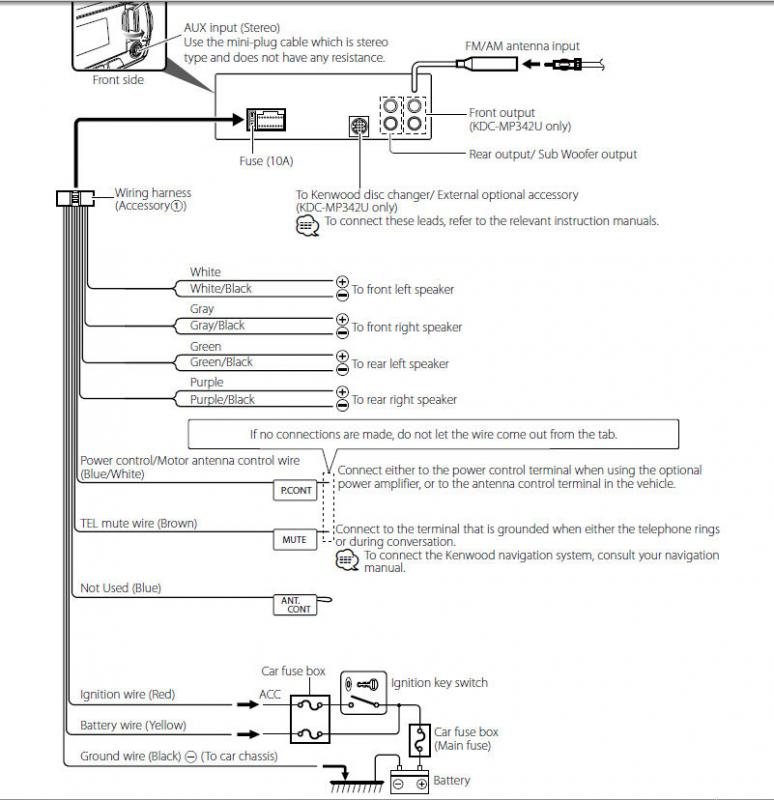

Wiring question Kenwood hu and 2003 sx2.0(neon)-peters-deck-wiring-layout.jpg
Old Nov 7, 2010 | 11:47 AM
  #4
jonesbrooklyn's Avatar
I suck a bozzack for a nickel
iTrader: (5)

Joined: Aug 2006
Posts: 2,679
no. if he has a power antenna then connect the blue and white to the power antenna. If he doesn't have a power antenna then do not connect the blue and white at all. Just connect the blue wire.
Old Nov 7, 2010 | 12:15 PM
  #5
Sparx123's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Jul 2009
Posts: 20
Originally Posted by jonesbrooklyn
no. if he has a power antenna then connect the blue and white to the power antenna. If he doesn't have a power antenna then do not connect the blue and white at all. Just connect the blue wire.
Then what would I run his remote wire off of?
