Condition: new
Category: Components

I have a MOREL INTEGRA OVATION XO4 for sale.

Power Type: 80 WATT


Asking Price is $365.00

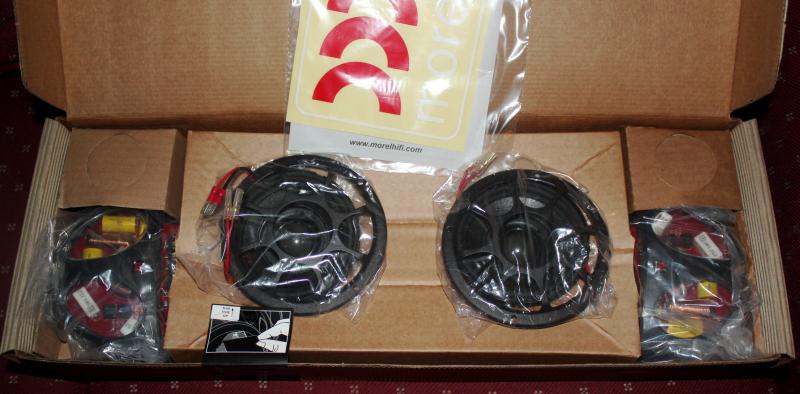

UP FOR SALE IS MOREL INTEGRA OVATION XO 4 2 WAY COAXIAL SPEAKER SET * GUARANTEED AUTHENTIC*. ITEM HAS NOT BEEN USED, STILL IN PACKAGING.


If you are looking for a true audiophile quality product look no further than Morel. The brand designs nothing but true sound quality products for the audiophile. This brand is not even in the same league as other leading brands. If you are looking for true quality and to hear music the way it was designed to be heard you will not be let down.

The Integra Ovation XO 4 integrates tweeter + woofer into one compact and powerful point source speaker; specifically designed and engineered for car installations that can not accomodate component speakers systems. If you are an audiophile this is your ideal solution offering superior soundstage, image and musicality. This system offers hours of listening pleasure for the music lover.
It is also designed to provide the installers with flexibility using separate input for woofers and tweeter, together with external crossover. Allowing installers to adjust tweeter levels by +3 db. New external crossover helps the speakers performance in off axis installs and solves reflective surface problems.

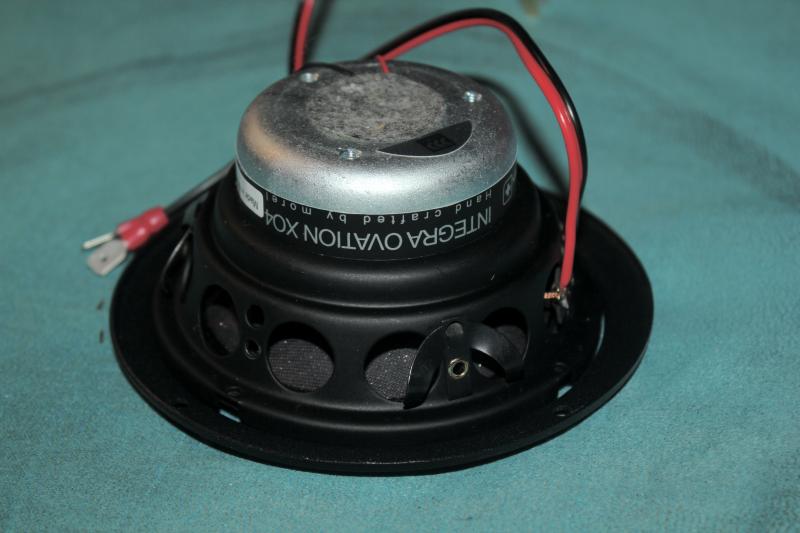

Utilizes neodymium magnet motor drive system to get reduced mounting depth and increased lous speaker sensitivity. Large diameter 54mm EVC aluminum Hexatech voice coil increased power handling and transient response.

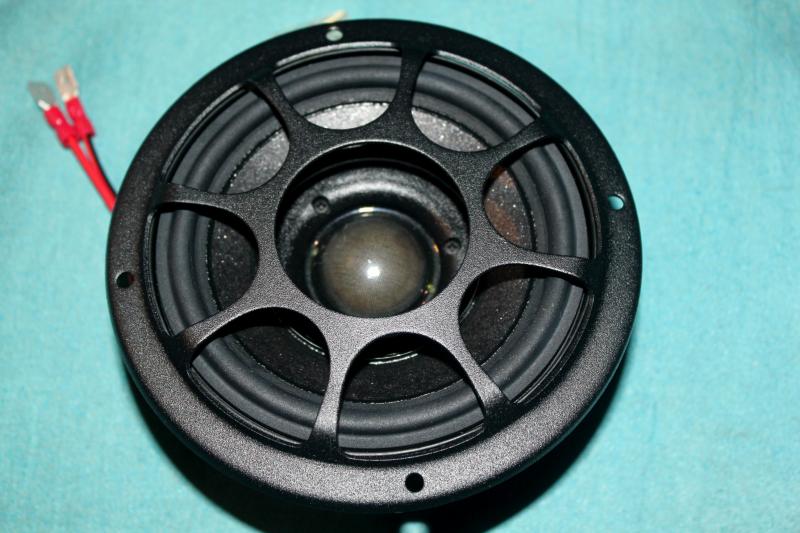

The Acuflex coated soft dome tweeter delivers warm, clear sound that Morel is famous for. Tweeter is acoustically put together with the woofer motor drive system to allow exceptional integration and phase linearity with the woofer. Together the ensure clear linear frequency response giving a unique point source speaker.

Aerodynamic design of Uniflow aluminum die cast chassis minimizes sound reflection distortion and increase overall performance.


WOOFERS:
NOMINAL IMPEDANCE: 4.00 OHM
POWER HANDLING: 80W
MAX TRANSIENT POWER HANDLING: 250 W
SENSITIVITY: 88DB
FREQUENCY RESPONSE: 60-4000HZ
FS: 92HZ
VOICE COIL DIAMETER: 54.00MM( 2.10")
VOICE COIL TYPE/FORMER: ALUMINUM
VOICE COIL WIRE: HEXATECH ALUMINUM
DC RESISTANCE: 3.40 OHM
VOICE COIL INDUCTANCE @ 1KHZ: 0.17 MH
MAGNET SYSTEM: NEODYMIUM
HE-MAGNETIC GAP HEIGHT: 4.00 MM( 0.18")
B-FLUX DENSITY: 0.90 T
BL PRODUCT /BXL: 3.86
MAX. LINEAR EXCURSION /XMAX: 4.00 MM
SUSPENSION COMPLIANCE CMS: 469
MECHANICAL Q FACTOR QES: 0.70
TOTAL Q FACTOR Q/T: 0.58
QMS: 3.27
MECHANICAL RESISTANCE RMS: 0.42 KGS
MOVING MASS MMS: 4.40 GR
EQUIVALENT CAS AIR LOAD VAS: 3.00 ( 0.11 FT)
EFFECTIVE PISTON AREA SD: 64 MM(9.92 IN)
CONE MATERIAL: COMPOSITE CELLULAR FIBER
UNIT DIAMETER: 104.00MM( 4.00")
MOUNTING DEPTH: 50.00MM( 2.00")
MOUNTING CUTOUT: 95.00 MM( 3.74")
NET WEIGHT: 1.10 LB

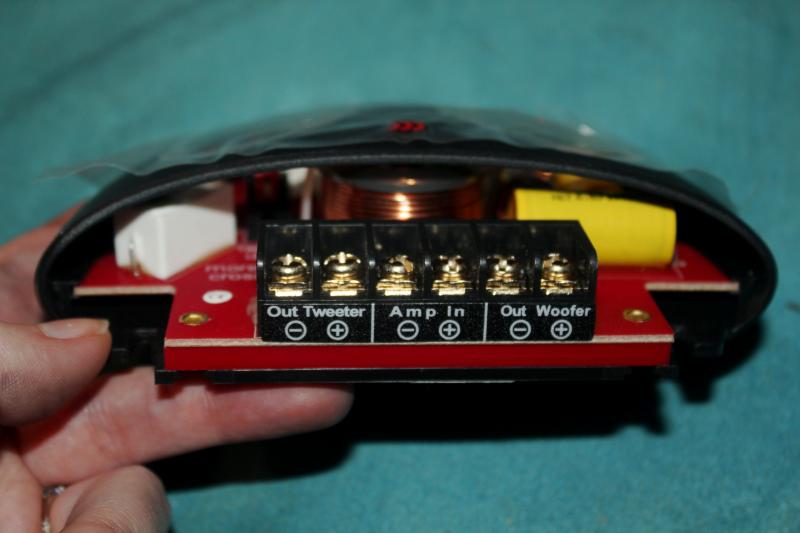

CROSSOVER:
NOMINAL IMPEDANCE: 4.00 OHM
POWER HANDLING: 150 W
CROSSOVER POINT: 3200HZ 6 DB/OCTAVE
CROSSOVER CONTROLS: TWEETER LEVEL-3DB, 0DB,+3DB
WIRING OPTIONS: STANDARD
HOUSING MATERIAL: BLACK ABS
TERMINAL TYPE:LARGE SCREWS GOLD PLATED
NET WEIGHT: 0.46 LB


TWEETER:
NOMINAL IMPEDANCE: 4.00 OHM
POWER HANDLING: 80 W
MAX. TRANSIENT POWER HANDLING: 250 W
SENSITIVITY: 91DB
FREQUENCY RESPONSE:3000-22000HZ
FS: 950 HZ
VOICE COIL DIAMETER: 28.00MM( 1.10")
VOICE COIL FORMER: ALUMINUM
VOICE COIL WIRE: COPPER
DC RESISTANCE: 3.40 OHM
MAGNETIC SYSTEM: NEODYMIUM
DOME TYPE: ACUFLEX SOFT DOME
DOME MATERIAL: SILK
