Condition: Used
Category: Amps

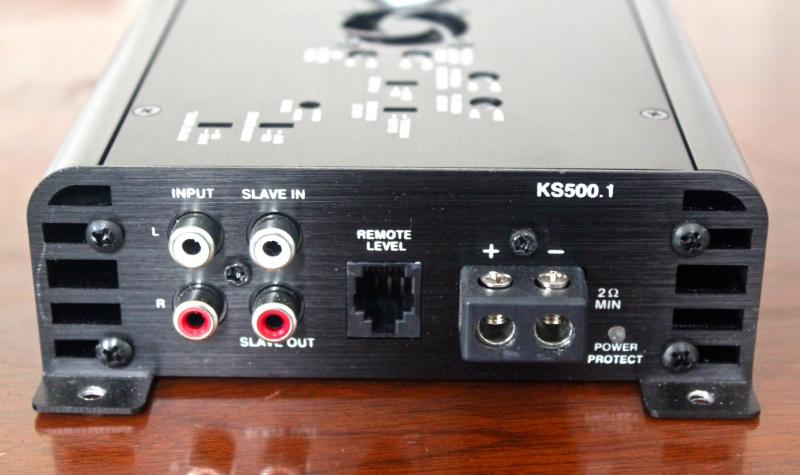

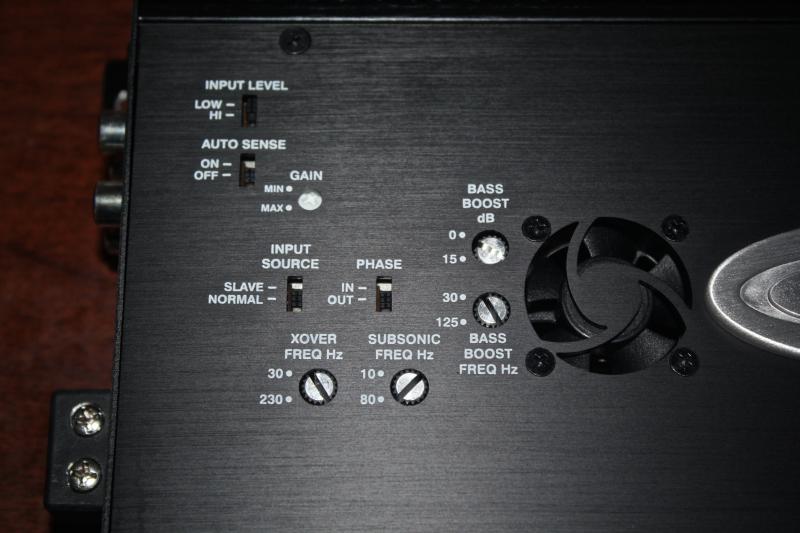

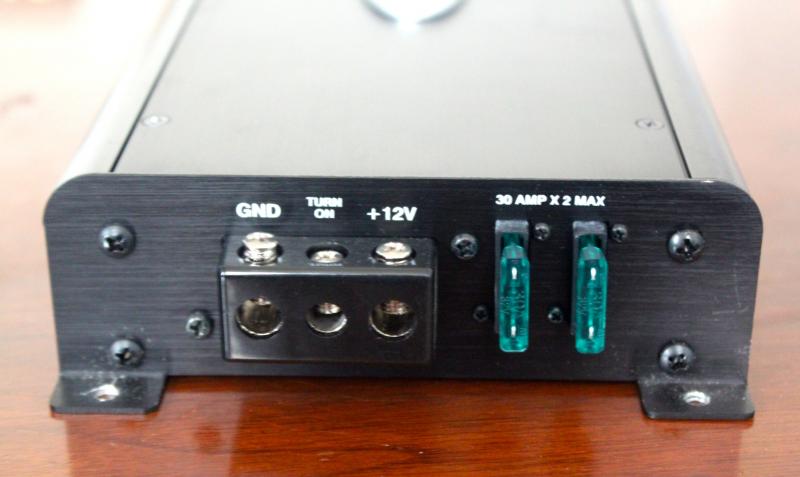

I have a Arc Mini KS 500.1 Mono Amplifier for sale. Only been played a few hours so it is basically new still, in great shape

Power Type: 300watt


Asking Price is $200.00


Seller Information: Anthony
Phone: (314) 518-1825

Specs on amp:

1 Channel @ 4 ohm ( bridged)- 300 watt
1 channel @ 2 ohm ( bridged) - 500 watt
Frequency Response- 4 HZ- 250 HZ
Crossover Range- 30 HZ- 250 HZ Variable
Bass Boost- +15db @ 45 HZ
S/N Ratio-102 db
Input Sensitivity ( low)- 200mA- 3.5V
Max Current Draw- 52A @ 550 Watt 1% THD
Idle Current- 1.14 amp
Dimensions- 11.625" (L) x 5.125" (W) x 1.75" ( H)

The Arc Mini is a small and compact design amp for small space with no loss of sound quality. The KS amps are totally "out of the box" rethink of what an amp can be. By taking a proven Pro Audio amp class and bringing up to date with modern components we can achieve amazing sound quality in a small chassis that makes install even in very challenging cars and trucks easy to use.
Class G and Class G/H amps are often the best of all characteristics, having power output, distortion, efficiency, heat, noise , size are all leading specs with this specific design.

This class performs well due to the fact its built for music not test tones or noise. Class G/H works with dynamics of music. When an amp is playing music even at full volume due to dynamic nature it is really only working above 1/2 power about 10% of the time. Only needing full power during the loud passages like the impact of a drum or pluck of bass. The rest of the time your amp is making less than 250 watts. That is when the KS amp's Class G/H comes in. A 400 watt amp that can be smaller and makes less heat that in a fraction of second becomes an 800 watt beast. This works based on striking a balance between switching huh power section on and off.

-Mono Sub mini amp
-compact chassis design for small vehicle applications
-non digital class G/H switching design
-designed by Robert Zeff
-protection against: reverse voltage, over voltage, speaker short, and thermal overload
-can drive highly reactive loads
-hi/low level balanced switchable RCA inputs for flexible integration into most applications
-optically isolated Mosfet power supply
-stable to 2 ohms
The KS500.1 uses a patent pending auto sense turn on circuit that offers a significant improvement in reliability and operation
-to further simplify OEM integration uses a fully balanced input stage that is switchable between speaker and RCA input. Simply plugging your stock speaker wires into the RCA will supply a perfect clean signal to the amp and turn it on.
-in addition the remote turn on connection with the flip of a switch becomes a remote turn on output to connect to rest of amp.
