new Hybrid Audio Legatia L6 component set - in Components - $$750
06-04-2014, 07:16 PM
#1
0 Watt CAFz'r
Thread Starter
Join Date: Mar 2013
Posts: 9
new Hybrid Audio Legatia L6 speaker component set 2 way- in Components - $$750
Condition: New
Category: Components
I have a Hybrid Audio Legatia L6 component set for sale.
If you have questions please call Anthony at 314-518-1825
Power Type: 120 watt
Asking Price is $$750

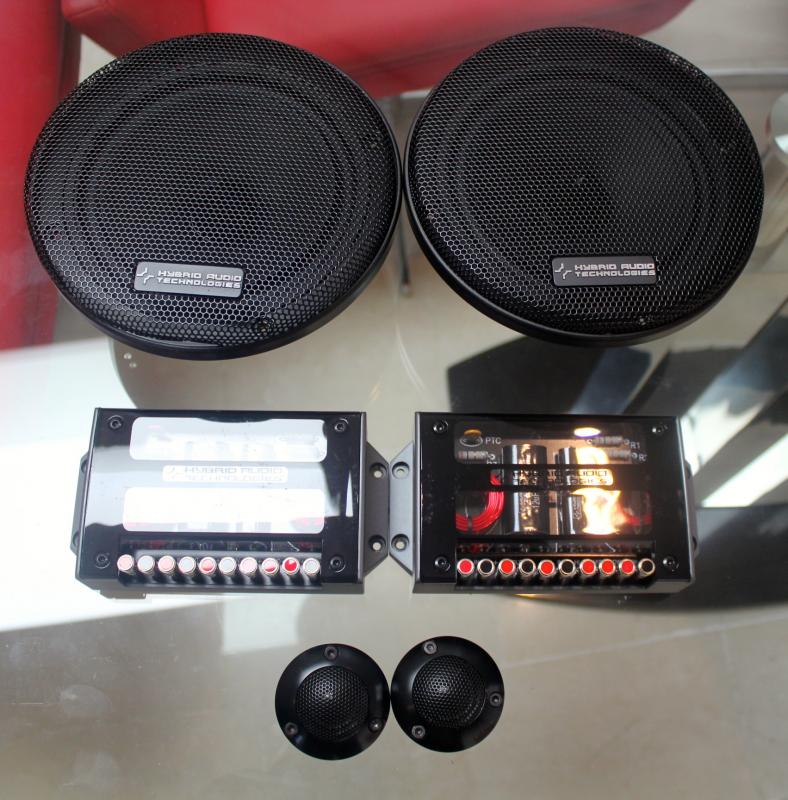

Up for sale is Hybrid Audio Legatia L6 2 way speaker set with L1V2 Tweeters and L2x Crossovers. Set was just on display. Comes with all original packaging

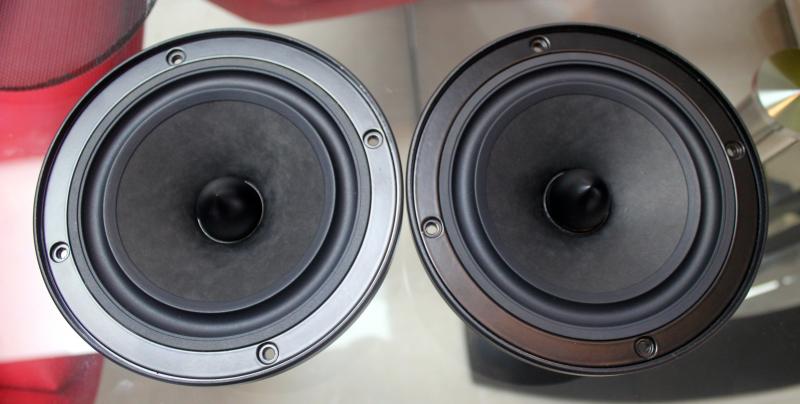

The L6 midrange/midbass is one of the best midrange produced in the world and available today.These are incredible audiophile quality speakers, any enthusiast would be happy to own. The sound quality is amazing and uncompromising.
Specs:
Overall diameter: 7.1 inch
Mounting depth: 77 mm
Bolt Circle Diameter: 167.5 mm
Mounting Hole: 146 mm
P nom: 60 watt
P max: 120 watt
P max ( with crossover) : 250 watt
Frequency range: 51.5 - 5000 hz
Sensitivity: 91 db
mms: 18.843 g
Cms: 454 um
Bl: 5.693
Voice coil diameter: 35.55 mm
Impedance: 4 ohm
DC resistance: 3.62 ohm
Fs: 51.5 hz
Qms: 3.857
Qes: 0.609
Qts: 0.526
xmax: 6 mm
Vas: 14.185 L
Sd: 13273 mm

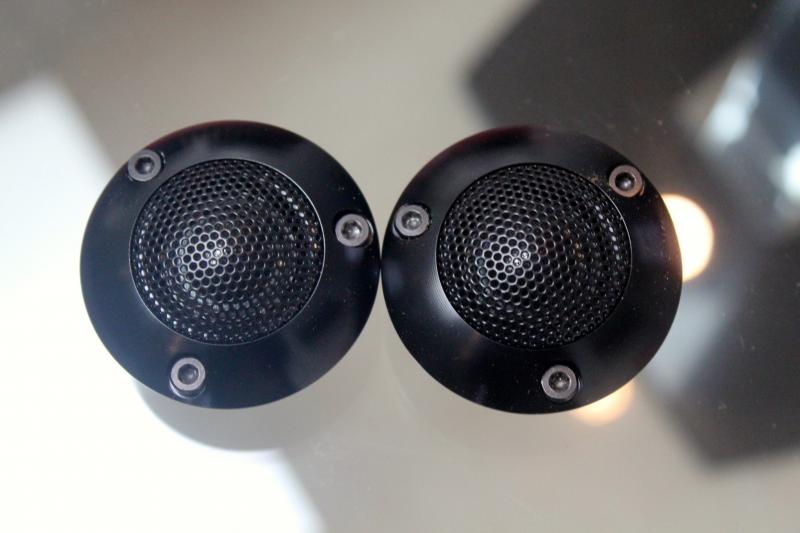

The L1V2 Tweeter is compact high resolution 20 mm soft dome driver that can be used as reproduction of treble frequencies in dedicated two, three or four way front stage systems. Has small diameter , very easy to install, has soft dome silk diaphragm and resonance frequency that is compilementary to all types of front stage system architecture. Can be listened to for hours without listeners fatigue while having industry standard response.
Specs:
Diameter: 55mm
Mounting depth: 20 mm from bottom of surface mount flange to bottom of open terminals
Mounting Methology: surface mount tweeter with three 3 mm screw holes to secure the tweeter body from the front
Construction: solid machined aluminum with integrated polypropylene rear cap and push terminals
Distortion: 5% max at rated power input no crossover
Magnet diameter and construction: 19.5 x 3 H
Recommended Minimum crossover: 3200 hz @ 24 db
Pnom: rated power input: 10 watt
Pmax: max power input: 20 watt
Pmax: with crossover 75 watt
Resonance Frequency: 1830 hz
Freqquency Range: 2500-25000 hz
Sensitivity: 90db @ 1 watt
Nominal Impedance: 4 ohm
DC Resistance: 3.2 ohm
Voice coil diameter: 20 mm
Q Mechanical system: 3.103
Q Electrical system: 3.553
Q total system: 1.656
Krm: 198.84
erm: 1.278
Kxm: 2.136 mh
Exm: 0.513

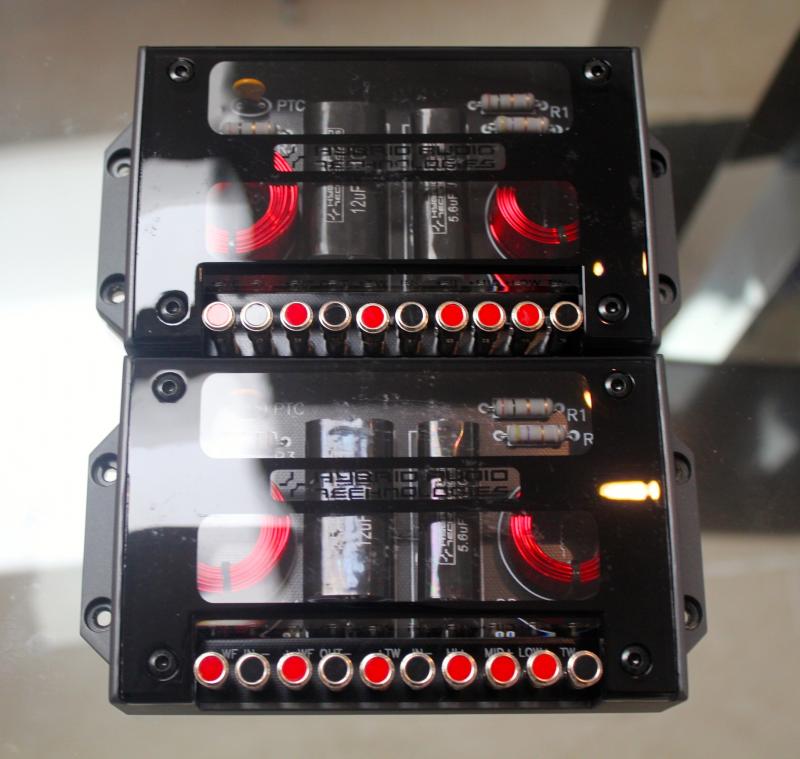

L2x Crossovers are vertically bi amped passive designed to work with any wide bandwidth Hybrid midrange. They are very nice looking, high performance filter set that contains hand matched high quality low tolerance parts such as metalized polypropylene capacitors , air core low ESR inductors and low tolerance ceramic resistors. Has tweeter protection circuit to defend the speaker from being over driven or from faulty amp circuitry and extreme input voltage. Double sided design with nickel plated spring loaded terminals for ease of install and adjustment of tweet attenuation.
Category: Components
I have a Hybrid Audio Legatia L6 component set for sale.
If you have questions please call Anthony at 314-518-1825
Power Type: 120 watt
Asking Price is $$750
Up for sale is Hybrid Audio Legatia L6 2 way speaker set with L1V2 Tweeters and L2x Crossovers. Set was just on display. Comes with all original packaging
The L6 midrange/midbass is one of the best midrange produced in the world and available today.These are incredible audiophile quality speakers, any enthusiast would be happy to own. The sound quality is amazing and uncompromising.
Specs:
Overall diameter: 7.1 inch
Mounting depth: 77 mm
Bolt Circle Diameter: 167.5 mm
Mounting Hole: 146 mm
P nom: 60 watt
P max: 120 watt
P max ( with crossover) : 250 watt
Frequency range: 51.5 - 5000 hz
Sensitivity: 91 db
mms: 18.843 g
Cms: 454 um
Bl: 5.693
Voice coil diameter: 35.55 mm
Impedance: 4 ohm
DC resistance: 3.62 ohm
Fs: 51.5 hz
Qms: 3.857
Qes: 0.609
Qts: 0.526
xmax: 6 mm
Vas: 14.185 L
Sd: 13273 mm
The L1V2 Tweeter is compact high resolution 20 mm soft dome driver that can be used as reproduction of treble frequencies in dedicated two, three or four way front stage systems. Has small diameter , very easy to install, has soft dome silk diaphragm and resonance frequency that is compilementary to all types of front stage system architecture. Can be listened to for hours without listeners fatigue while having industry standard response.
Specs:
Diameter: 55mm
Mounting depth: 20 mm from bottom of surface mount flange to bottom of open terminals
Mounting Methology: surface mount tweeter with three 3 mm screw holes to secure the tweeter body from the front
Construction: solid machined aluminum with integrated polypropylene rear cap and push terminals
Distortion: 5% max at rated power input no crossover
Magnet diameter and construction: 19.5 x 3 H
Recommended Minimum crossover: 3200 hz @ 24 db
Pnom: rated power input: 10 watt
Pmax: max power input: 20 watt
Pmax: with crossover 75 watt
Resonance Frequency: 1830 hz
Freqquency Range: 2500-25000 hz
Sensitivity: 90db @ 1 watt
Nominal Impedance: 4 ohm
DC Resistance: 3.2 ohm
Voice coil diameter: 20 mm
Q Mechanical system: 3.103
Q Electrical system: 3.553
Q total system: 1.656
Krm: 198.84
erm: 1.278
Kxm: 2.136 mh
Exm: 0.513
L2x Crossovers are vertically bi amped passive designed to work with any wide bandwidth Hybrid midrange. They are very nice looking, high performance filter set that contains hand matched high quality low tolerance parts such as metalized polypropylene capacitors , air core low ESR inductors and low tolerance ceramic resistors. Has tweeter protection circuit to defend the speaker from being over driven or from faulty amp circuitry and extreme input voltage. Double sided design with nickel plated spring loaded terminals for ease of install and adjustment of tweet attenuation.
Last edited by tbommb; 06-04-2014 at 07:42 PM.
