new Hybrid Audio Technologies L3v2 - in Components - $250.00
#1
new Hybrid Audio Technologies L3v2 - in Components - $250.00
Condition: Used
Category: Components
I have a Hybrid Audio Technologies L3v2 for sale.
Power Type: 125 RMS
Asking Price is $250.00
Product Brand & Model: Hybrid Audio Technologies - L3v2
Condition of all items: Brand New - Un-Used
Total Price: : $250.00 (Paypal)
Location: USA, Georgia
Shipping Terms: : Free to lower 48 States. Send personal message if international shipping is needed.

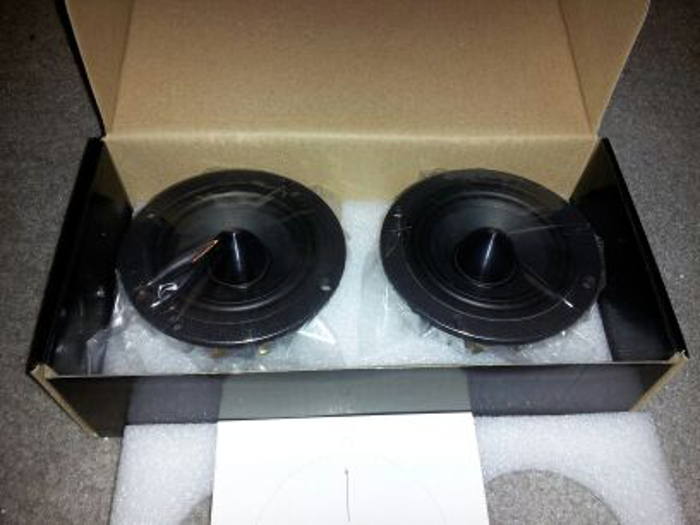

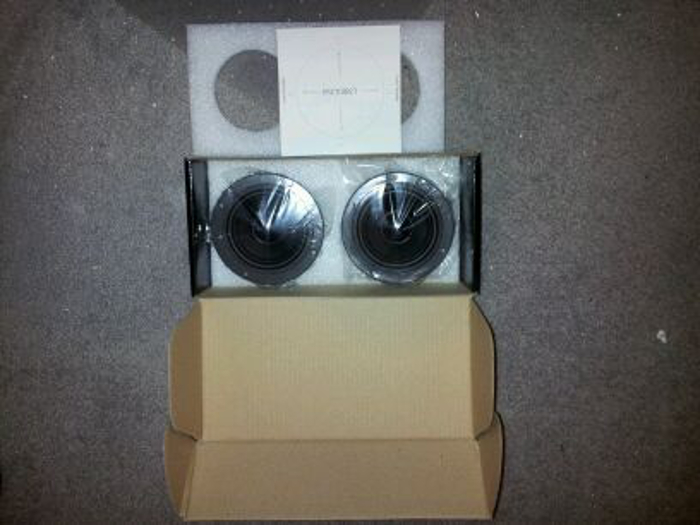

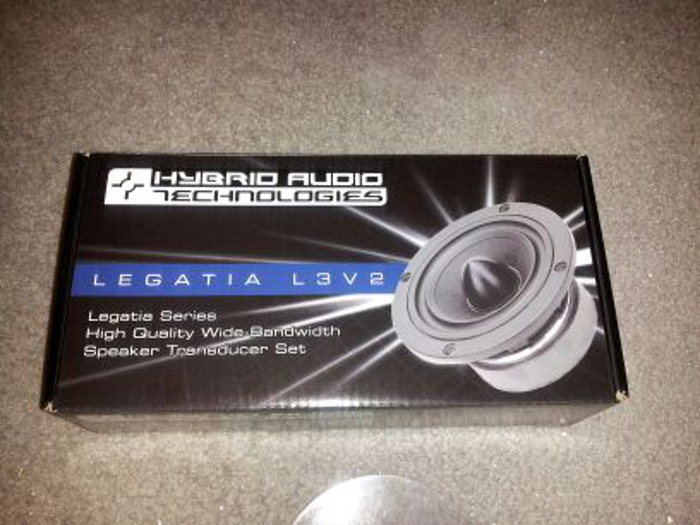

Pictures: See Attached
Additional info:
Online Information
The Legatia L3V2 is a 93mm (3.7-inch) “small format” wide-bandwidth midrange/full-range driver to compliment both two-way and three-way system designs, where a point-source midrange and/or fullrange driver is required. The following are the L3V2’s design attributes:
Thiele/Small Parameters
Overall Diameter f93 mm (3.7-inch)
Mounting Depth 43 mm
Bolt Circle Diameter f84.5 mm
Mounting Hole f74 mm
Recommended Minimum Crossover Frequency 185 Hz at 24 dB/octave highpass
Pnom Rated power Input (No Crossover) 25 watts (AES Standard)
Pmax Rated power Input (No Crossover) 50 watts (AES Standard)
Pmax (With Recommended Minimum Crossover) 125 watts
Frequency Range 113 Hz – 18,000 Hz, +/- 3 dB
Sensitivity 88.6 dB at 2.83V/1meter
Mms 2.65 g
Cms 743 um/N
BL 3.277 T*m
Voice Coil Diameter 25.5 mm (1-inch)
Impedance 4
DC Resistance 3.4
Fs 113 Hz (free air)
Qms 2.766
Qes 0.598
Qts 0.492
Xmax 3 mm (one way)
Vas 0.96 L
Sd 3,019 mm2
Category: Components
I have a Hybrid Audio Technologies L3v2 for sale.
Power Type: 125 RMS
Asking Price is $250.00
Product Brand & Model: Hybrid Audio Technologies - L3v2
Condition of all items: Brand New - Un-Used
Total Price: : $250.00 (Paypal)
Location: USA, Georgia
Shipping Terms: : Free to lower 48 States. Send personal message if international shipping is needed.
Pictures: See Attached
Additional info:
Online Information
The Legatia L3V2 is a 93mm (3.7-inch) “small format” wide-bandwidth midrange/full-range driver to compliment both two-way and three-way system designs, where a point-source midrange and/or fullrange driver is required. The following are the L3V2’s design attributes:
Thiele/Small Parameters
Overall Diameter f93 mm (3.7-inch)
Mounting Depth 43 mm
Bolt Circle Diameter f84.5 mm
Mounting Hole f74 mm
Recommended Minimum Crossover Frequency 185 Hz at 24 dB/octave highpass
Pnom Rated power Input (No Crossover) 25 watts (AES Standard)
Pmax Rated power Input (No Crossover) 50 watts (AES Standard)
Pmax (With Recommended Minimum Crossover) 125 watts
Frequency Range 113 Hz – 18,000 Hz, +/- 3 dB
Sensitivity 88.6 dB at 2.83V/1meter
Mms 2.65 g
Cms 743 um/N
BL 3.277 T*m
Voice Coil Diameter 25.5 mm (1-inch)
Impedance 4
DC Resistance 3.4
Fs 113 Hz (free air)
Qms 2.766
Qes 0.598
Qts 0.492
Xmax 3 mm (one way)
Vas 0.96 L
Sd 3,019 mm2
