lpchouinard

Condition: Used and new
Category: Components

I have a Hybrid Audio Technologies for sale.

Power Type: watts


Asking Price is $various

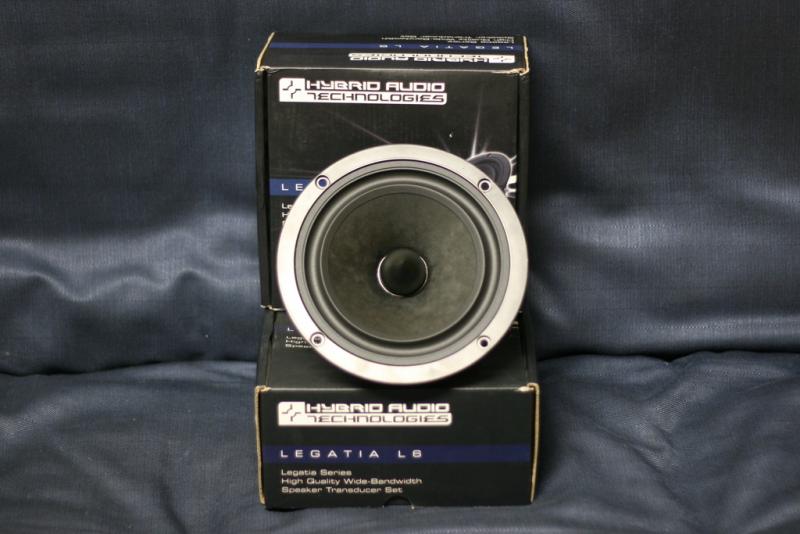

LNIB Hybrid Audio Technologies Legatia L8, installed to test



Legatia™ L8 Thiele-Small Parameters:

Overall diameter: 215mm (8.5-inch)
Mounting depth: 92mm
Bolt Circle Diameter: 195mm
Mounting hole: 185mm
Pnom (without crossover) 75W (AES Standard)
Pmax (without crossover): 150W
Pmax (with recommended crossover): 250W
Frequency range: 40Hz – 2,000 Hz
Sensitivity: 87dB (2.83V/1m)
Mms: 31.5g
Cms: 454 um/N
BL: 5.99 T*m
Voice coil diameter: 35.55mm (1.4-inch)
Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Fs: 40Hz (free air)
Qms: 7.35
Qes: 0.693
Qts: 0.765
Xmax: 8.5mm (one way)
Vas: 26L
Sd: 0.02 m2

250$ plus shipping

NIB Hybrid Audio Technologies Legatia L6



Overall diameter: 181mm (7.1-inch)
Mounting depth: 77mm
Bolt Circle Diameter: 167.5mm
Mounting hole: 146mm
Pnom (without crossover) 60W (AES Standard)
Pmax (without crossover): 120W
Pmax (with recommended crossover): 250W
Frequency range: 51.5 Hz – 5,000 Hz
Sensitivity: 91dB (2.83V/1m)
Mms: 16.843 g
Cms: 454 um/N
BL: 5.693 T*m
Voice coil diameter: 35.55mm (1.4-inch)
Impedance: 4 Ohm
DC Resistance: 3.62 Ohm
Fs: 51.5 Hz (free air)
Qms: 3.857
Qes: 0.609
Qts: 0.526
Xmax: 6mm (one way)
Vas: 14.185 L
Sd: 13273mm2

250$ plus shipping

NIB Hybrid Audio Technologies Legatia L4



Overall diameter: 118mm (4.65-inch)
Mounting depth: 54mm
Bolt Circle Diameter: 109.5mm
Mounting hole: 94.5mm
Pnom (without crossover) 30W (AES Standard)
Pmax (without crossover): 60W
Pmax (with recommended crossover): 200W
Frequency range: 90Hz - 17,000 Hz
Sensitivity: 89dB (2.83V/1m)
Mms: 4.22g
Cms: 706.4 um/N
BL: 3.74 T*m
Voice coil diameter: 25.5mm (1-inch)
Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Fs: 90Hz (free air)
Qms: 2.61
Qes: 0.61
Qts: 0.50
Xmax: 2.5mm (one way)
Vas: 2.54L
Sd: 5000mm2

200$ plus shipping


NIB Hybrid Audio Technologies Legatia L3



Overall diameter: 93mm (3.7-inch)
Mounting depth: 46mm
Bolt Circle Diameter: 85mm
Mounting hole: 74mm
Pnom (without crossover) 25W (AES Standard)
Pmax (without crossover): 50W
Pmax (with recommended crossover): 150W
Frequency range: 129Hz - 10,000 Hz
Sensitivity: 85dB (2.83V/1m)
Mms: 2.274g
Cms: 640 um/N
BL: 2.961 T*m
Voice coil diameter: 25.5mm (1-inch)
Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Fs: 129Hz (free air)
Qms: 3.468
Qes: 0.717
Qts: 0.594
Xmax: 2.6mm (one way)
Vas: 0.63L
Sd: 2733mm2

170$ plus shipping

NIB Hybrid Audio Technologies Legatia L1v2 silver



Overall Diameter: 55 mm
Mounting Depth: 20 mm from bottom of surface-mount flange to bottom of open (non-wired) terminals
Mounting Methodology : Surface-mount tweeter with three 3mm screw holes to secure the tweeter body from the front
Construction: Solid machined aluminum with integrated polypropylene rear cap and push terminals
Distortion: <5% max at rated power input, no crossover
Magnet Diameter and Construction: φ19.5 × 3 H NdFeB
Recommended Minimum Crossover: 3,200 Hz at 24 dB/octave highpass Frequency
Pnom: Rated Power Input (No Crossover): 10 watts (AES Standard)
Pmax: Maximum Power Input (No Crossover): 20 watts (AES Standard)
Pmax (With Recommended Minimum Crossover): 75 watts
Resonance Frequency (Fs): 1,830 Hz
Frequency Range: 2,500 Hz – 25,000 Hz, +/- 3 dB
Sensivity : 90 dB at 1 watt/1meter
Nominal Impedance: 4Ω
DC Resistance : 3.2Ω
Voice Coil Diameter: 20 mm (3/4-inch)
Q Mechanical System (Qms):3.103
Q Electrical System (Qes): 3.553
Q Total System (Qts): 1.656
Krm: 198.84 nΩ
Erm : 1.278
Kxm : 2.136 mH
Exm : 0.513

150$ plus shipping

NIB Hybrid Audio Technologies Legatia L1pro SE



250$ plus shipping

all price per pair

Ravemeister

iTrader: (36)

Great seller here people, this man knows good sound. Have dealt with him personally many times.

lpchouinard

L1Pro SE sold

lpchouinard

L1v2 and L6 are pending payment

Grab the L8, L4, L3 while you still can!!!!
