used JL Audio XD700/5 XD600/1 - in Amps - $300
11-26-2013, 10:32 AM
#1
used JL Audio XD700/5 XD600/1 - in Amps - $300
Condition: Used
Category: Amps
I have a JL Audio XD700/5 XD600/1 for sale.
Power Type: 700 600
Asking Price is $300

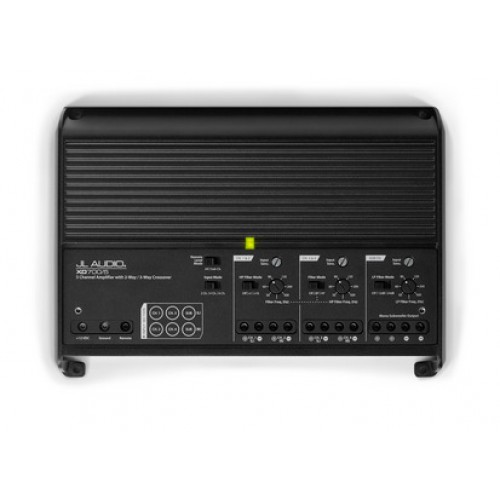

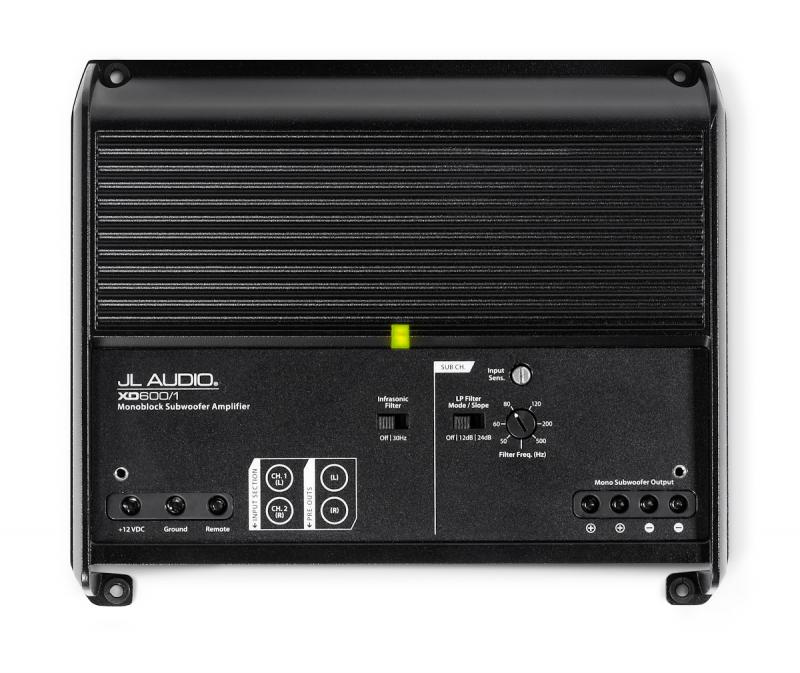

JL Audio XD600/1 AND XD700/5 amplifiers
xd700/5 - 300$
xd600/1 - 200$
You cover shipping and fees
Will be tracked and insured anywhere in north america
Retails for 450$ (xd600/1) and (650$ for xd700/5) in stores
100% working order
is missing top plates
Specs
Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A
Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A
General Specifications
Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Modes: Channels 1 & 2 (front) High-Pass only
Filter Slope (dB/Octave): Channels 1 & 2 (front) 12 dB
Filter Frequency Range: Channels 1 & 2 (front) 50-5000 Hz
Filter Modes: Channels 3 & 4 (rear) High-Pass or Bandpass
Filter Slope (dB/Octave): Channels 3 & 4 (rear) 12 dB
Filter Frequency Range: Channels 3&4 50-500 Hz
Filter Modes: Subwoofer Channel Low-Pass only
Filter Slope (dB/Octave): Subwoofer Channel 12 dB or 24 dB
Filter Frequency Range: Subwoofer Channel 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filters Defeatable? Yes
Infrasonic Filter: Subwoofer Channel none
Remote Level Control Optional (HD-RLC)
Remote Level Modes Sub Ch. or All Channels
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A
Physical Specifications
Table_Image
Height (H) 2.05 in / 52 mm
Width (W) 10.23 in / 260 mm
Depth (D) 7.09 in / 180 mm
Net Weight 6.15 lb / 2.79 kg
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 400 W RMS x 1
@ 3 Ω 500 W RMS x 1
@ 2 Ω 600 W RMS x 1
@ 1.5 Ω N/A
Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 300 W RMS x 1
@ 3 Ω 400 W RMS x 1
@ 2 Ω 500 W RMS x 1
@ 1.5 Ω N/A
General Specifications
Frequency Response 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Slope (dB/Octave) 12 dB or 24 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeatable? Yes
Filter Modes Low-Pass only
Pass-Through Preamp Output Buffered
Bass Boost EQ No
Output Polarity Switch No
Remote Subwoofer Level Control Optional (HD-RLC)
Remote Bass EQ Boost Control No
Infrasonic Filter 30 Hz, defeatable
Physical Specifications
Table_Image
Height (H) 2.05 in / 52 mm
Width (W) 8.52 in / 216 mm
Depth (D) 7.09 in / 180 mm
Net Weight 6.3 lb / 2.86 kg
Category: Amps
I have a JL Audio XD700/5 XD600/1 for sale.
Power Type: 700 600
Asking Price is $300
JL Audio XD600/1 AND XD700/5 amplifiers
xd700/5 - 300$
xd600/1 - 200$
You cover shipping and fees
Will be tracked and insured anywhere in north america
Retails for 450$ (xd600/1) and (650$ for xd700/5) in stores
100% working order
is missing top plates
Specs
Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A
Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A
General Specifications
Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Modes: Channels 1 & 2 (front) High-Pass only
Filter Slope (dB/Octave): Channels 1 & 2 (front) 12 dB
Filter Frequency Range: Channels 1 & 2 (front) 50-5000 Hz
Filter Modes: Channels 3 & 4 (rear) High-Pass or Bandpass
Filter Slope (dB/Octave): Channels 3 & 4 (rear) 12 dB
Filter Frequency Range: Channels 3&4 50-500 Hz
Filter Modes: Subwoofer Channel Low-Pass only
Filter Slope (dB/Octave): Subwoofer Channel 12 dB or 24 dB
Filter Frequency Range: Subwoofer Channel 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filters Defeatable? Yes
Infrasonic Filter: Subwoofer Channel none
Remote Level Control Optional (HD-RLC)
Remote Level Modes Sub Ch. or All Channels
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A
Physical Specifications
Table_Image
Height (H) 2.05 in / 52 mm
Width (W) 10.23 in / 260 mm
Depth (D) 7.09 in / 180 mm
Net Weight 6.15 lb / 2.79 kg
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 400 W RMS x 1
@ 3 Ω 500 W RMS x 1
@ 2 Ω 600 W RMS x 1
@ 1.5 Ω N/A
Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 300 W RMS x 1
@ 3 Ω 400 W RMS x 1
@ 2 Ω 500 W RMS x 1
@ 1.5 Ω N/A
General Specifications
Frequency Response 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Slope (dB/Octave) 12 dB or 24 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeatable? Yes
Filter Modes Low-Pass only
Pass-Through Preamp Output Buffered
Bass Boost EQ No
Output Polarity Switch No
Remote Subwoofer Level Control Optional (HD-RLC)
Remote Bass EQ Boost Control No
Infrasonic Filter 30 Hz, defeatable
Physical Specifications
Table_Image
Height (H) 2.05 in / 52 mm
Width (W) 8.52 in / 216 mm
Depth (D) 7.09 in / 180 mm
Net Weight 6.3 lb / 2.86 kg
12-01-2013, 12:37 AM
#3
50 Watt CAFz'r
Join Date: Jun 2012
Posts: 145
i have extra top plates/manuals/logos for anyone who wants to buy these
12-01-2013, 07:37 PM
#4
50 Watt CAFz'r
Join Date: Jun 2012
Posts: 145
Bump nvm at OP/mods request i cannot offer the missing accessory
Glws
