used Pioneer GM-3000T - in Amps - $20.00
09-13-2012, 05:43 PM
#1
used Pioneer GM-3000T - in Amps - $20.00
Condition: Used
Category: Amps

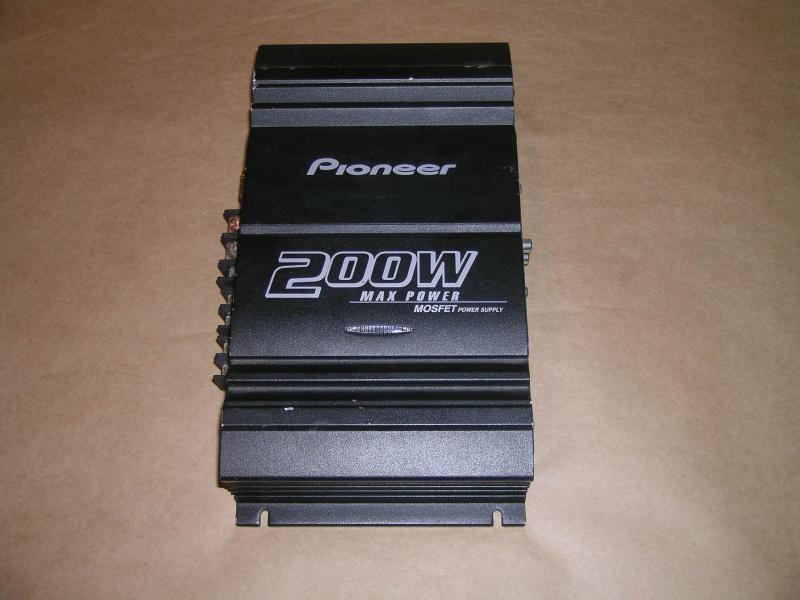

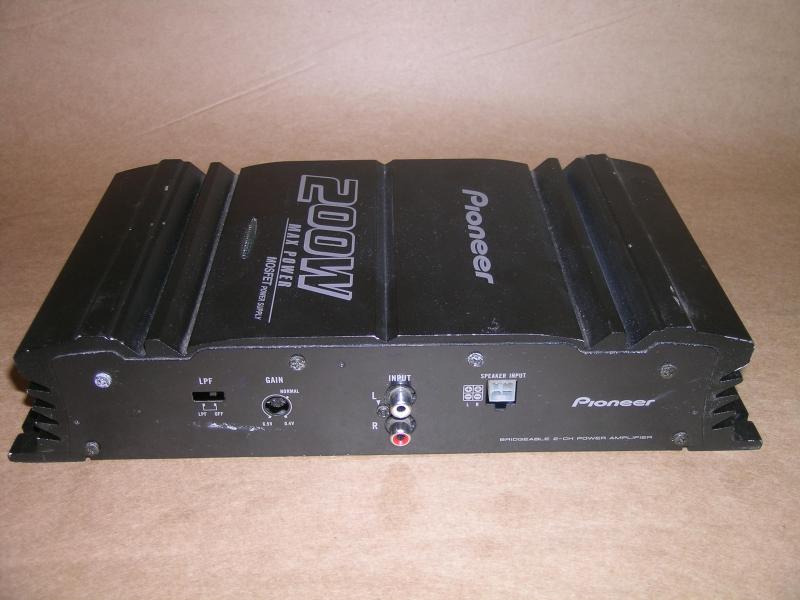

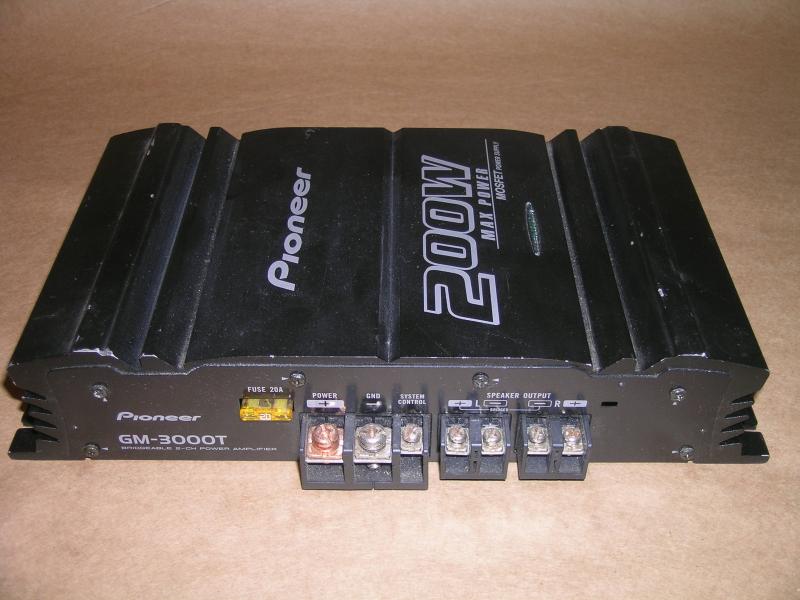

I have a Pioneer GM-3000T for sale.
Power Type: Stereo
Asking Price is $20.00
Pioneer
GM-3000T
Used
20.00 plus USPS shipping
paypal
Rockford, Illinois, US
Specifications
Power source............................................ ......14.4V DC (10.8-- 15.1 V allowable)
Grounding system............................................ ...............................Negative type
Current consumption................................11.3 A (at continuous power, 4 ohms)
Average current drawn*......................................3.8 A (4 ohms for two channels)
5.9 A (4 ohms for one channel)
Fuse.............................................. .................................................. ..............20 A
Dimensions........................................ ..................300 (W) x 61 (H) x 157 (D) mm
Weight............................................ ...........2.6 kg (Leads for wiring not included)
Maximum power output............................................ ..........80 W x 2 / 200 W x 1
Continuous power output..............60 W x 2 / 150 W x 1 (DIN45324, +B=14.4 V
Load impedance......................................... ...........4 ohms (2 --8 ohms allowable)
(Bridge connection: 4 --8 ohms allowable)
Frequency response.......................................... ...... 10--45,000 Hz (+0 dB, -1dB)
Signal-to-noise ratio............................................. ...........100 dB (IEC-A network)
Distortion........................................ ..................................0.008 % (10 W, 1 kHz)
Separation........................................ ..............................................55 dB (1 kHz)
Low pass filter............................................ ....................Cut off frequency: 80 Hz
Cut off slope: -12 dB/oct
Maximum input level/impedance.................RCA: 6.5 V/22 K ohms (0.4 --6.5 V)
Speaker: 26V/40 K ohms (1.6 --26 V)
*Average current drawn
- The average current drawn is nearly the maximum current drawn by this unit
when an audio signal is input. Use this value when working out total current
drawn by multiple power amplifiers.
