used Rockford 200M - in Amps - $100
08-24-2012, 10:34 PM
#1
50 Watt CAFz'r
Thread Starter
Join Date: Sep 2009
Posts: 202
used Rockford 200M - in Amps - $100
Condition: Used
Category: Amps

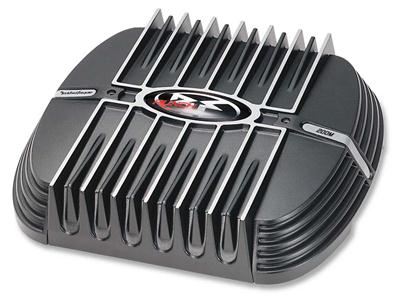

I have a Rockford 200M for sale.
Power Type: 200 watt rms
Asking Price is $100
Selling a rockford 200m amp. in amazing condition, can pass as a brand new amp! comes with everythig and you can even use your stock headunit! please PM me! Trades welcome
Features
TRANSana (TRANSconductance Active Nodal Amplifier): The TRANSana is a circuit that allows the audio signal to pass through the amplifier at low voltage. The signal is directly level-shifted to the fixed high voltage rails via a pair of drive transistors. Signal linearity is assured by an active node formed by the drive transistors at ultrasonic frequencies. The result is crystal clear sound quality.
Cast Aluminum Heatsink: The cast aluminum heatsink dissipates heat generated by the amplifier's circuitry. The inherent advantage of casting provides a 30% improvement of cooling over conventional extrusion heatsink designs.
TOPAZ (Tracking Operation Pre-Amplifier Zone): TOPAZ is a circuit that simply eliminates noise. The TOPAZ circuit allows the amplifier ground to move with the source unit ground, creating a "noise elimination" zone just before the preamp section. If there is any noise in the ground coming down the RCA line to the amplifier, TOPAZ amazingly tracks it down and eliminates it. The result is a 30-40dB improvement of the isolation between input ground and chassis ground.
NOMAD (NOn-Multiplying Advanced Decision): NOMAD is an intelligent protection circuit that uses an analog computer to make real time decisions regarding temperature, voltage, current and impedance. The unit is protected without limiting sound output unless needed.
DSM (Discrete Surface Mount): In the manufacturing process high speed robotics are used to place 0% tolerance resistors and large board traces providing greater reliability and efficiency.
Internal Crossover: The internal crossover is a 12dB/octave Butterworth filter selectable for full range or low-pass operation variable from 50Hz to 250Hz.
Punch Bass: The Punch Bass helps correct for acoustical deficiencies in the listening environment by helping reproduce full range sound without adding excessive boost. The Punch Bass control has a narrow band adjustment centered at 45Hz. A three position switch allows you to select a boost of +0dB, +6dB, or +12dB.
RF Center Badge: For installation flexibility, the RF center badge can be rotated 180 degrees.
Controls
Left Side Of Amplifier:
Crossover Switch: allows you to select low-pass or full range crossover operation
Crossover Frequency: the crossover frequency control is variable from 50Hz to 250Hz
Gain: this variable gain control allows you to adjust the output level of the amplifier
Punch Bass: three position switch selects bass boost at +0dB, +6dB, or +12dB
Inputs and Outputs
Left Side Of Amplifier:
Pre-Amp Input: gold-plated RCA jacks
High Level (speaker-level) input: 4-pin Molex plug
LED Power Indicator
Speakers: gold-plated set screw terminals that will accept up to 8 gauge speaker wire
GND: gold-plated set screw terminal that will accept up to 8 gauge ground wire
B+: gold-plated set screw terminal that will accept up to 8 gauge power wire
REM: gold-plated 0.250" quick-slide for remote turn-on lead. Note: A female quick-slide is not supplied.
Specifications
Continuous Power Rating (measured at 14.4V):
100 x 1 RMS continuous power into 4 Ohms with less than 1% TH+N from 20-20kHz
200 x 1 RMS continuous power into 2 Ohms with less than 1% TH+N from 20-20kHz
Category: Amps
I have a Rockford 200M for sale.
Power Type: 200 watt rms
Asking Price is $100
Selling a rockford 200m amp. in amazing condition, can pass as a brand new amp! comes with everythig and you can even use your stock headunit! please PM me! Trades welcome
Features
TRANSana (TRANSconductance Active Nodal Amplifier): The TRANSana is a circuit that allows the audio signal to pass through the amplifier at low voltage. The signal is directly level-shifted to the fixed high voltage rails via a pair of drive transistors. Signal linearity is assured by an active node formed by the drive transistors at ultrasonic frequencies. The result is crystal clear sound quality.
Cast Aluminum Heatsink: The cast aluminum heatsink dissipates heat generated by the amplifier's circuitry. The inherent advantage of casting provides a 30% improvement of cooling over conventional extrusion heatsink designs.
TOPAZ (Tracking Operation Pre-Amplifier Zone): TOPAZ is a circuit that simply eliminates noise. The TOPAZ circuit allows the amplifier ground to move with the source unit ground, creating a "noise elimination" zone just before the preamp section. If there is any noise in the ground coming down the RCA line to the amplifier, TOPAZ amazingly tracks it down and eliminates it. The result is a 30-40dB improvement of the isolation between input ground and chassis ground.
NOMAD (NOn-Multiplying Advanced Decision): NOMAD is an intelligent protection circuit that uses an analog computer to make real time decisions regarding temperature, voltage, current and impedance. The unit is protected without limiting sound output unless needed.
DSM (Discrete Surface Mount): In the manufacturing process high speed robotics are used to place 0% tolerance resistors and large board traces providing greater reliability and efficiency.
Internal Crossover: The internal crossover is a 12dB/octave Butterworth filter selectable for full range or low-pass operation variable from 50Hz to 250Hz.
Punch Bass: The Punch Bass helps correct for acoustical deficiencies in the listening environment by helping reproduce full range sound without adding excessive boost. The Punch Bass control has a narrow band adjustment centered at 45Hz. A three position switch allows you to select a boost of +0dB, +6dB, or +12dB.
RF Center Badge: For installation flexibility, the RF center badge can be rotated 180 degrees.
Controls
Left Side Of Amplifier:
Crossover Switch: allows you to select low-pass or full range crossover operation
Crossover Frequency: the crossover frequency control is variable from 50Hz to 250Hz
Gain: this variable gain control allows you to adjust the output level of the amplifier
Punch Bass: three position switch selects bass boost at +0dB, +6dB, or +12dB
Inputs and Outputs
Left Side Of Amplifier:
Pre-Amp Input: gold-plated RCA jacks
High Level (speaker-level) input: 4-pin Molex plug
LED Power Indicator
Speakers: gold-plated set screw terminals that will accept up to 8 gauge speaker wire
GND: gold-plated set screw terminal that will accept up to 8 gauge ground wire
B+: gold-plated set screw terminal that will accept up to 8 gauge power wire
REM: gold-plated 0.250" quick-slide for remote turn-on lead. Note: A female quick-slide is not supplied.
Specifications
Continuous Power Rating (measured at 14.4V):
100 x 1 RMS continuous power into 4 Ohms with less than 1% TH+N from 20-20kHz
200 x 1 RMS continuous power into 2 Ohms with less than 1% TH+N from 20-20kHz
