Enclosure Design & Construction Help Post and discuss your car audio box construction, design, fiberglass and other fabrication questions here.

got some 15s, box suggestions?

Thread Tools

Search this Thread

Old 10-16-2009, 03:00 AM
  #1
50 Watt CAFz'r
Thread Starter
iTrader: (2)

_HeC_'s Avatar

Join Date: Aug 2006
Posts: 318
got some 15s, box suggestions?

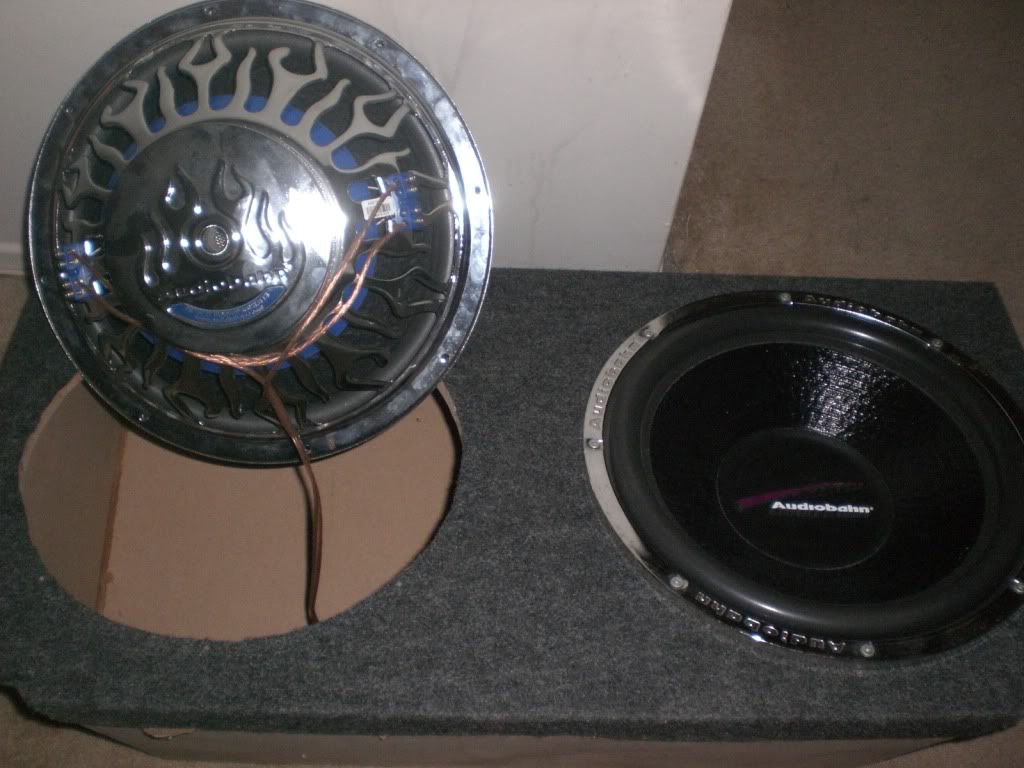

not the best but for the price i couldnt go wrong, audiobahn AW1571T
Name:  stereo001-1.jpg
Views: 168
Size:  131.6 KB

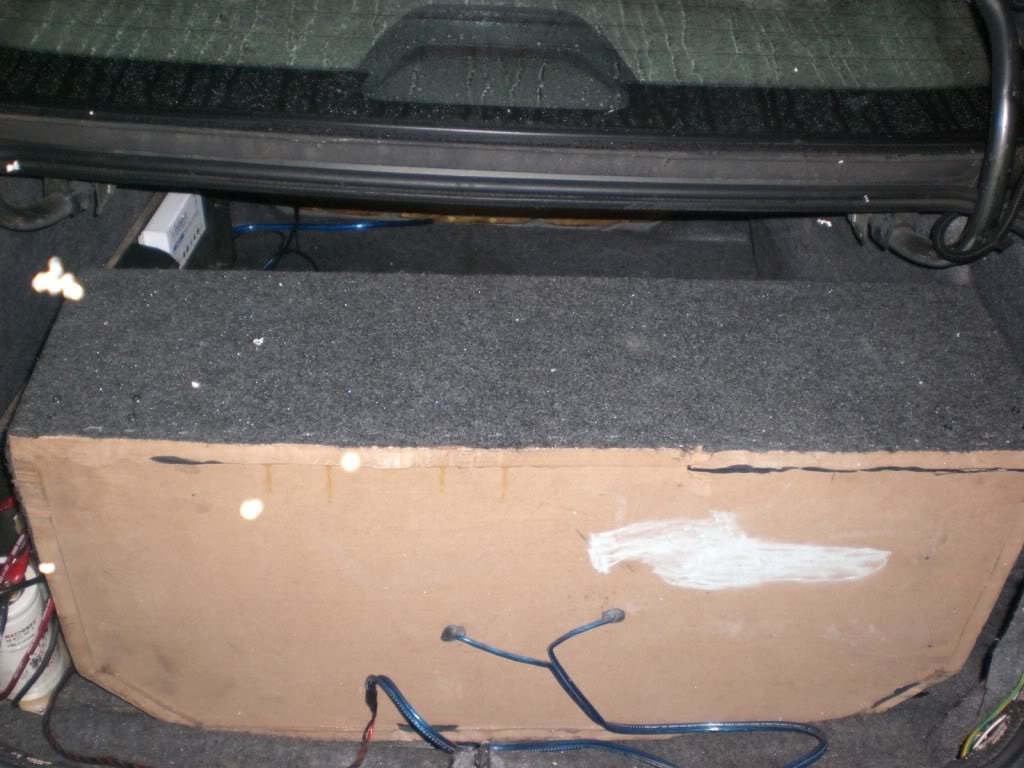

only way htey fit in the trunk unless i fire them into the trunk lid, to bad the seats dont fold down
Name:  stereo003-1.jpg
Views: 82
Size:  141.1 KB
anyone have some box suggestions? i dont really care for TL readings(atleast not now) but i definitly want to go ported, thinking of tuning lower aswell....... umm max dimensions are 34x15.5x23, i might be able to go to 24or25 for the depth but i think ill be pushing it
sub here
Audiobahn AW1571T Subwoofers - Car Subwoofers at Onlinecarstereo.com
manual with specs(u dont have to put a email address in to get the PDF)
My Retrevo - My Manuals

ohh and the guy said this box fit perfect in his z24, if anyone with a 3rd gen wants to buy the box let me know(it was a 2000-2002 if it matters)
_HeC_ is offline
Old 10-17-2009, 08:59 PM
  #2
50 Watt CAFz'r
Thread Starter
iTrader: (2)

_HeC_'s Avatar

Join Date: Aug 2006
Posts: 318

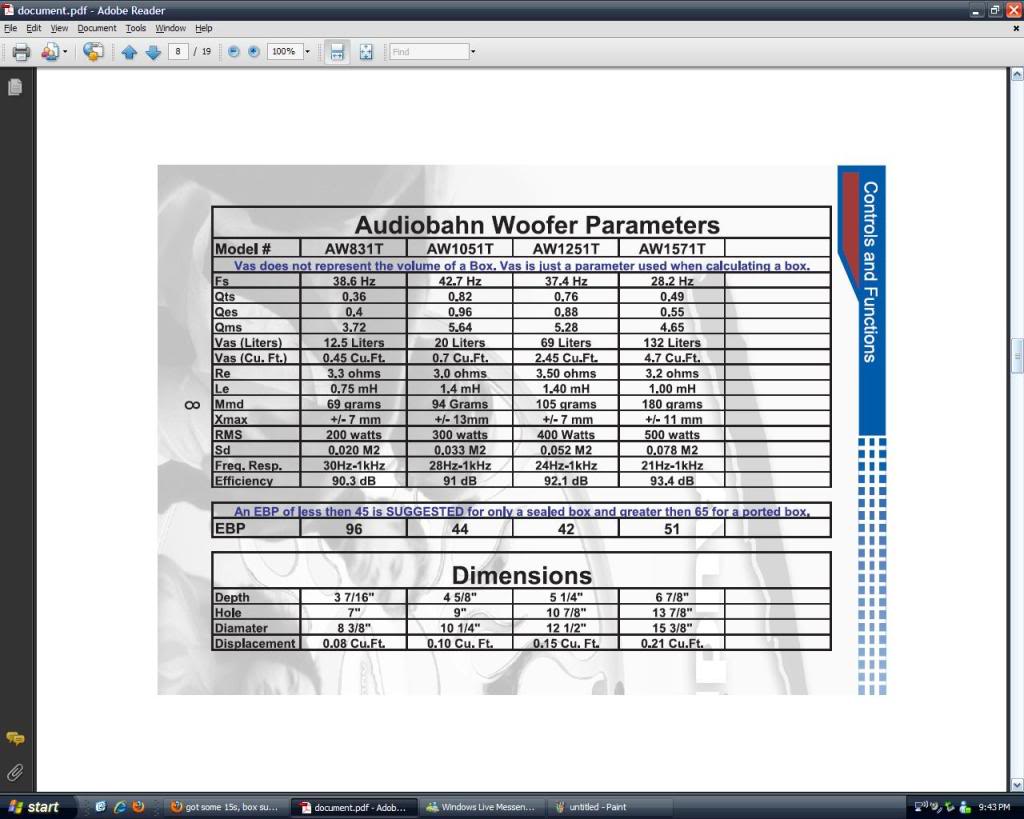

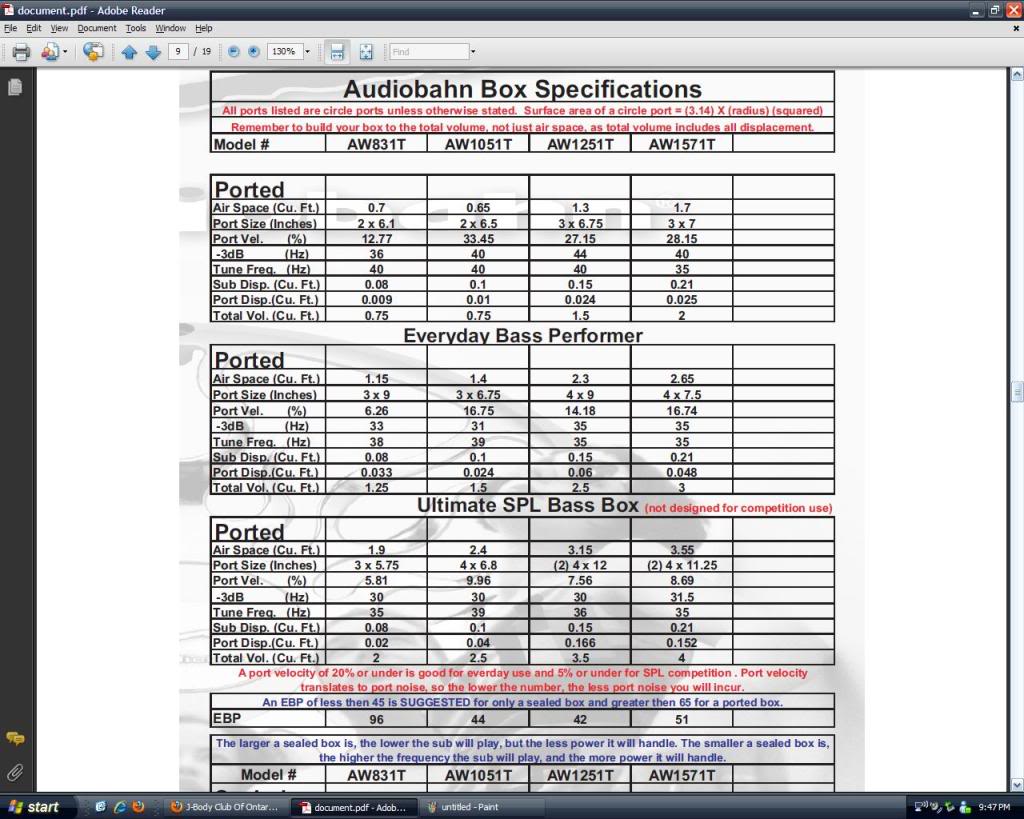

incase anyone else is having issues with the manual heres somepics of it
Name:  AW1571T.jpg
Views: 95
Size:  104.2 KB
Name:  AW1571Tboxspec.jpg
Views: 479
Size:  134.2 KB
_HeC_ is offline
Old 10-18-2009, 05:41 PM
  #3
!!!!AWAITING CONFIRMATION!!!!!!

pear_b's Avatar

Join Date: Apr 2009
Posts: 9
I would do 3 cubes after displacements. tuned to 38 hz.
pear_b is offline
Old 10-29-2009, 03:28 AM
  #4
0 Watt CAFz'r

Big Dog Louis's Avatar

Join Date: Oct 2009
Posts: 42
Do you want to do internal ports or externals? Also what amps you gonna use?
Big Dog Louis is offline
