Need help with my boxes!!!!
#1
Need help with my boxes!!!!
Hi guys, brand spankin new and I already love what I see. I'm at a loss here, I've had a pretty decent setup in my car for a while but I got new woofers and it's time to make some changes.
Before I had:
Bassworx BA3000.1D with two Bassworx 12.4D subs and I hit 144db.
Now I've got the same amp but I just picked up two RE audio MX series 12". Here are the specs:
Mounting Depth - 10.25"
Mounting Hole Diameter - 11.5"
Overall Diameter - 13"
Bolt Hole Circle - 12.25"
Motor Width - 8.5"
Motor Depth - 2.5"
Basket Depth - 7.75"
Displacement - 0.19 cu. ft.
Weight - 33 lbs.
Electrical Q Value -Qes: 0.503
Mechanical Q Value -Qms: 3.206
Total Speaker Q Value -Qts: 0.434
Free Air Resonance -Fs: 23.165 Hz
Equivalent Compliance -Vas: 59.0 liters
One-Way, Linear Excursion -Xmax: 22 mm
Efficiency -SPL 1W/1m: 83.5 dB SPL
Effective Piston Area -Sd: 480 cm^2
DC Resistance -Re: 1.4 ohm
Nominal Impedance -Znom: Dual 1/2 ohm
Thermal Power Handling -Pe: 1500 W
Force Factor -Bl: 14.56
12"
Compact: Optimal
Sealed: .75 1
Ported: .5 @ 35hz 2 @ 33hz
Now I'm ok with audio definetly not the best, but I'm terrible when it comes to enclosures. They're just too complicated to me. I was wondering if someone could design an enclosure for me or teach me how to design one because I'm lost.
I actually want to make 2 enclosure. One for SPL and one for everyday but still able to give me some really good LOUD bass.
Could some one please help me, I'm really in a pickle.
Before I had:
Bassworx BA3000.1D with two Bassworx 12.4D subs and I hit 144db.
Now I've got the same amp but I just picked up two RE audio MX series 12". Here are the specs:
Mounting Depth - 10.25"
Mounting Hole Diameter - 11.5"
Overall Diameter - 13"
Bolt Hole Circle - 12.25"
Motor Width - 8.5"
Motor Depth - 2.5"
Basket Depth - 7.75"
Displacement - 0.19 cu. ft.
Weight - 33 lbs.
Electrical Q Value -Qes: 0.503
Mechanical Q Value -Qms: 3.206
Total Speaker Q Value -Qts: 0.434
Free Air Resonance -Fs: 23.165 Hz
Equivalent Compliance -Vas: 59.0 liters
One-Way, Linear Excursion -Xmax: 22 mm
Efficiency -SPL 1W/1m: 83.5 dB SPL
Effective Piston Area -Sd: 480 cm^2
DC Resistance -Re: 1.4 ohm
Nominal Impedance -Znom: Dual 1/2 ohm
Thermal Power Handling -Pe: 1500 W
Force Factor -Bl: 14.56
12"
Compact: Optimal
Sealed: .75 1
Ported: .5 @ 35hz 2 @ 33hz
Now I'm ok with audio definetly not the best, but I'm terrible when it comes to enclosures. They're just too complicated to me. I was wondering if someone could design an enclosure for me or teach me how to design one because I'm lost.
I actually want to make 2 enclosure. One for SPL and one for everyday but still able to give me some really good LOUD bass.
Could some one please help me, I'm really in a pickle.
#3
Now I'm ok with audio definetly not the best, but I'm terrible when it comes to enclosures. They're just too complicated to me. I was wondering if someone could design an enclosure for me or teach me how to design one because I'm lost.
I actually want to make 2 enclosure. One for SPL and one for everyday but still able to give me some really good LOUD bass.
Could some one please help me, I'm really in a pickle.
hope this helps
#6

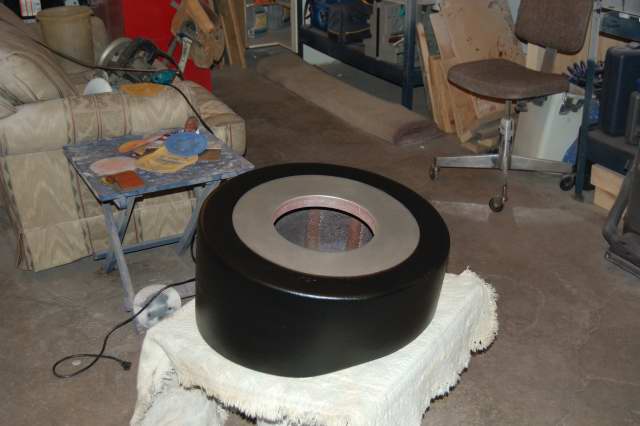

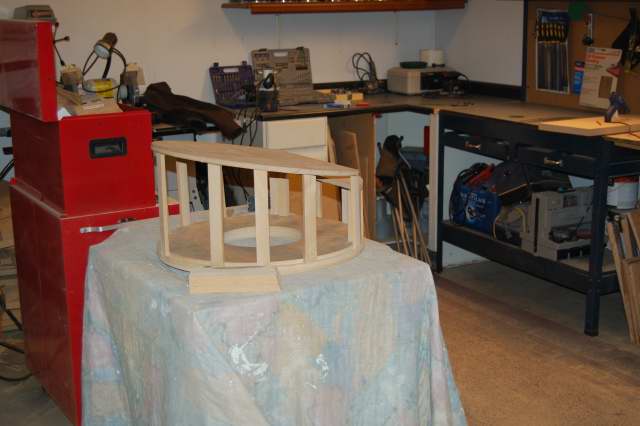

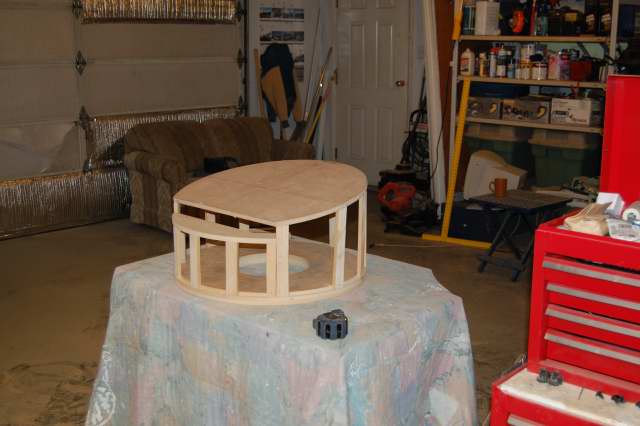

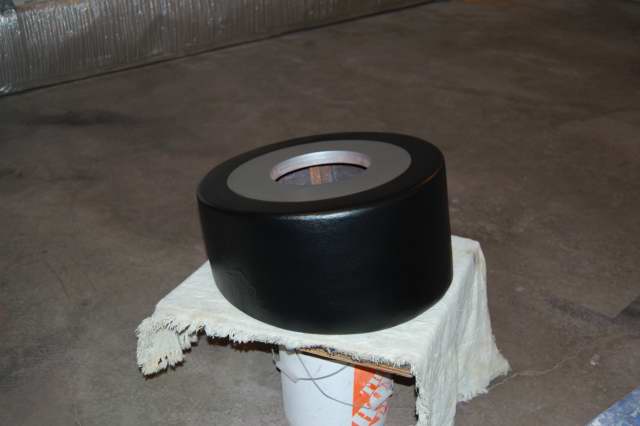

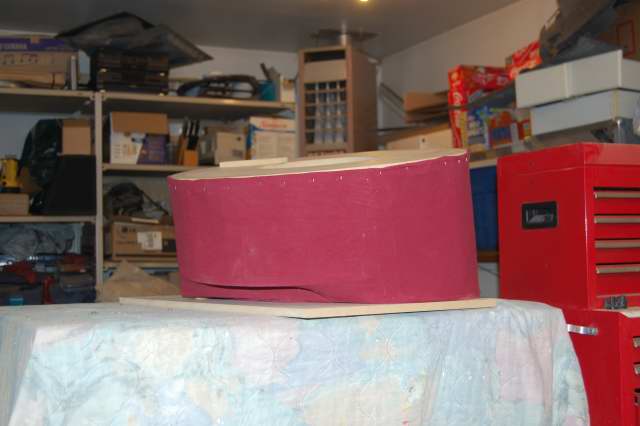

It is designed to fit in place of the spare tire and bolts to the car using the same anchor as the spare. To build one out of fiberglass using the spare tire space would have been too large for my single 10W-7 sub. I also wanted to keep the wieght down .
