bonang

Building a Single 12" sub box for a Kaption SPL1200. Tuned to 55hz.
3/4 MDF
Double Faced

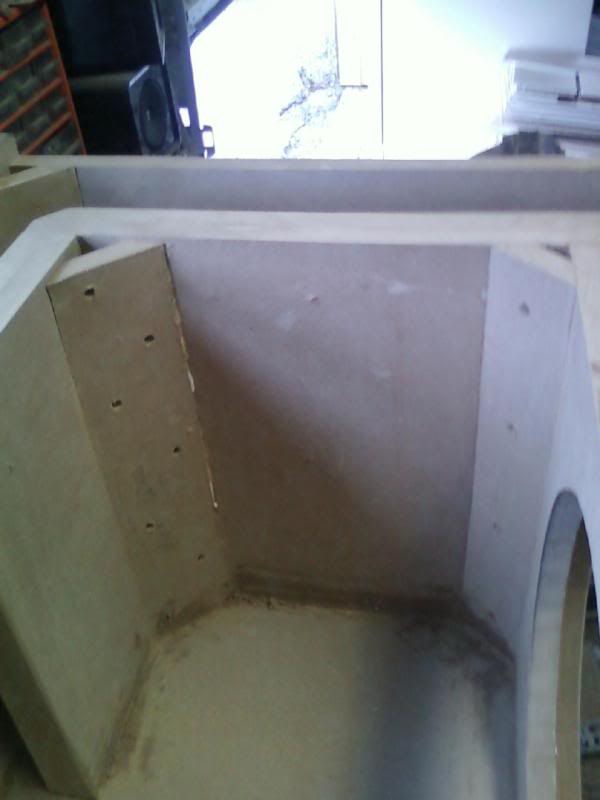

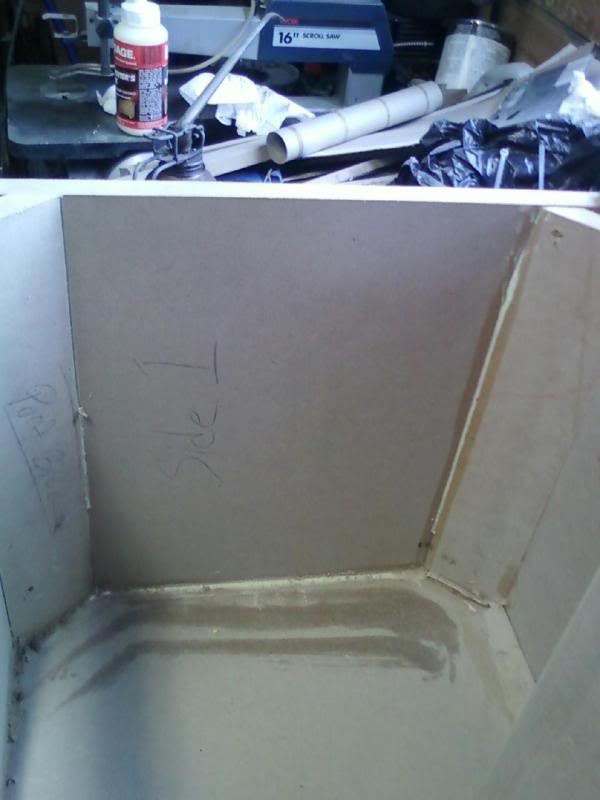

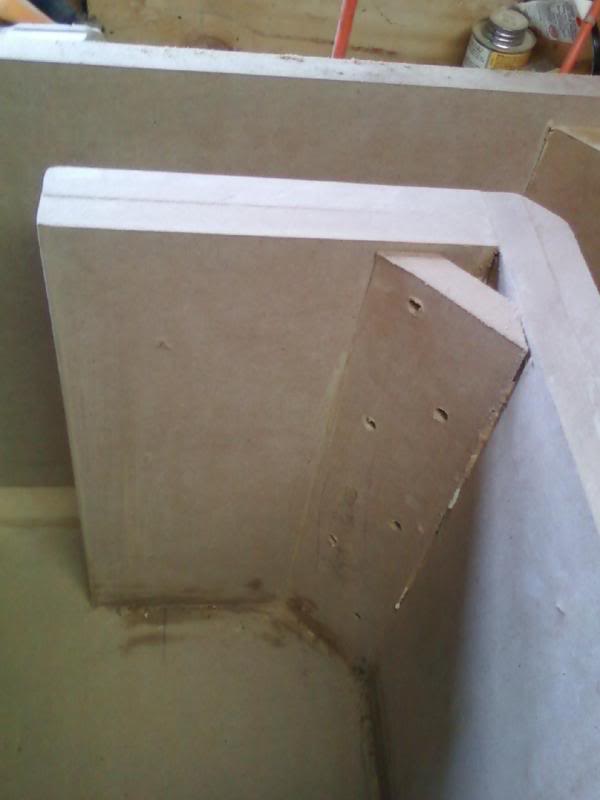

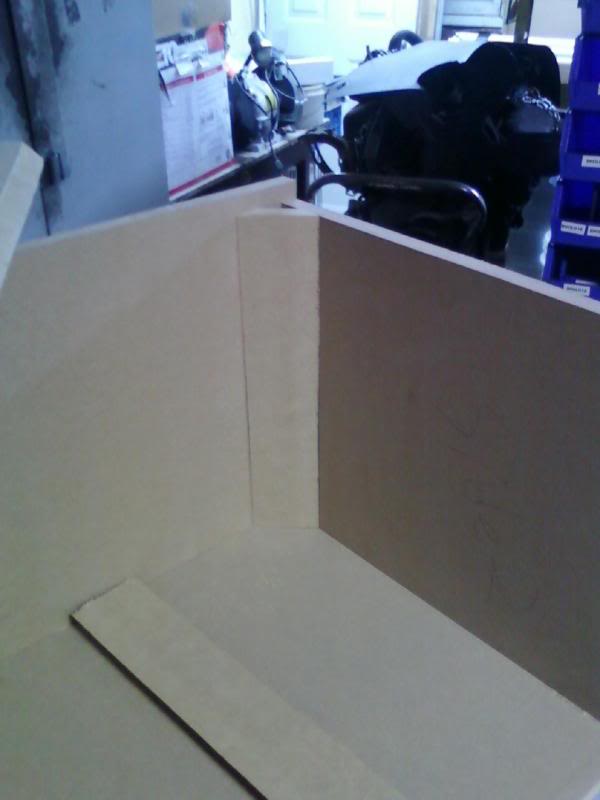

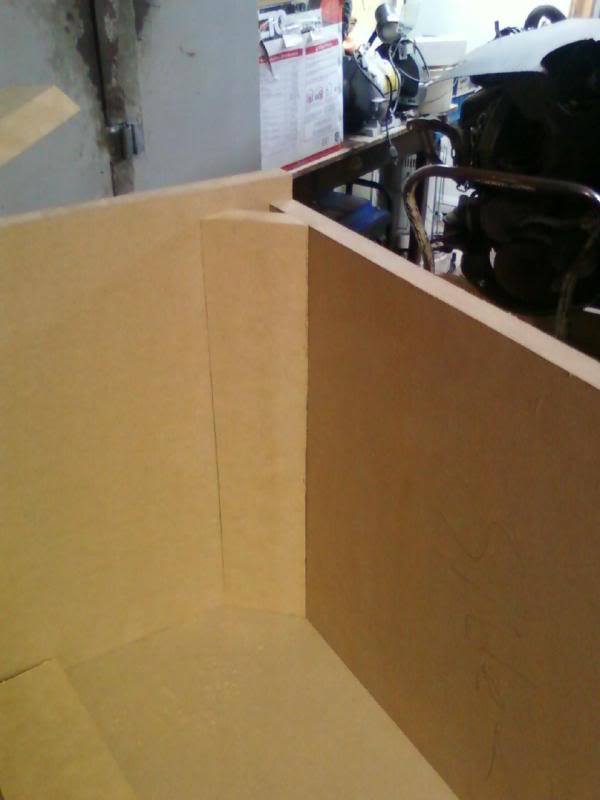

Brace in the corners with 45 deg

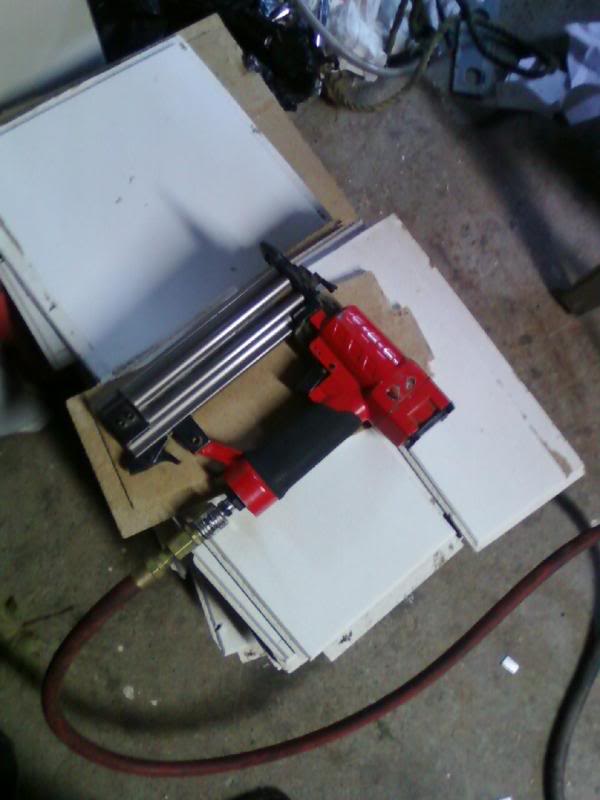

Glued, nailed and screwed

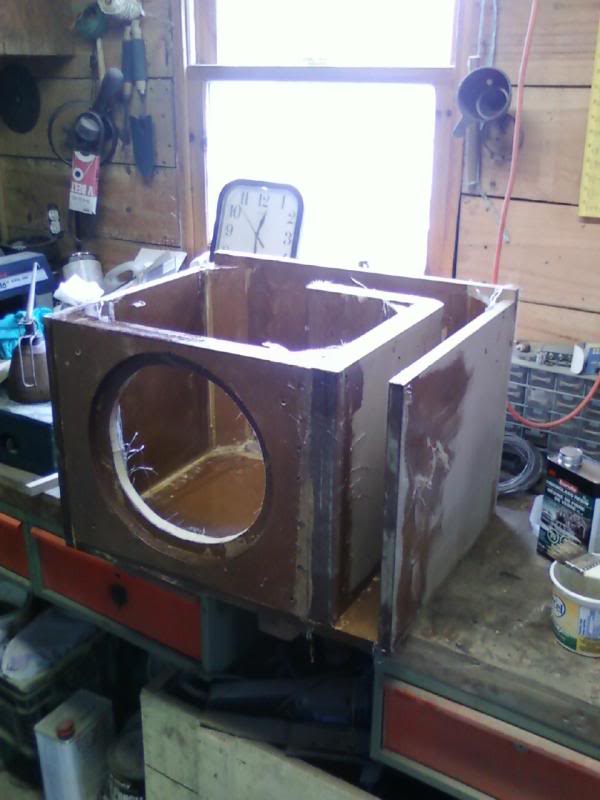

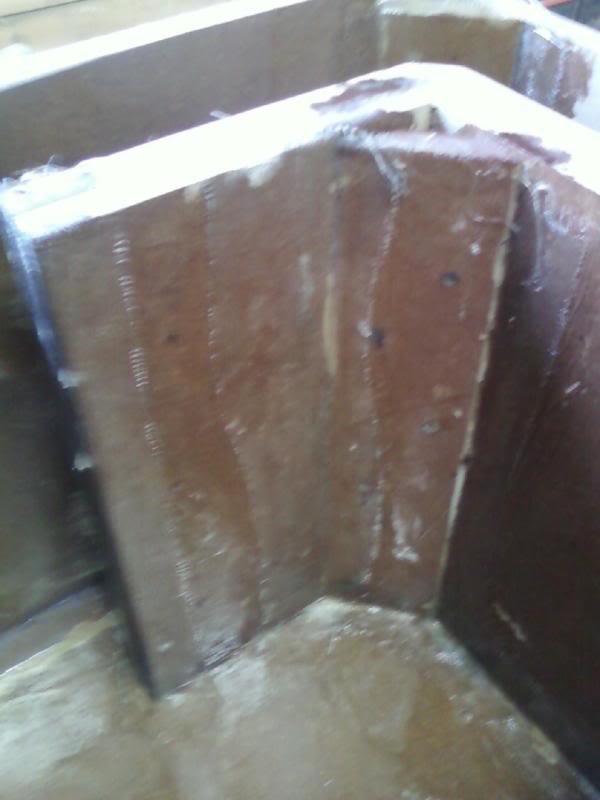

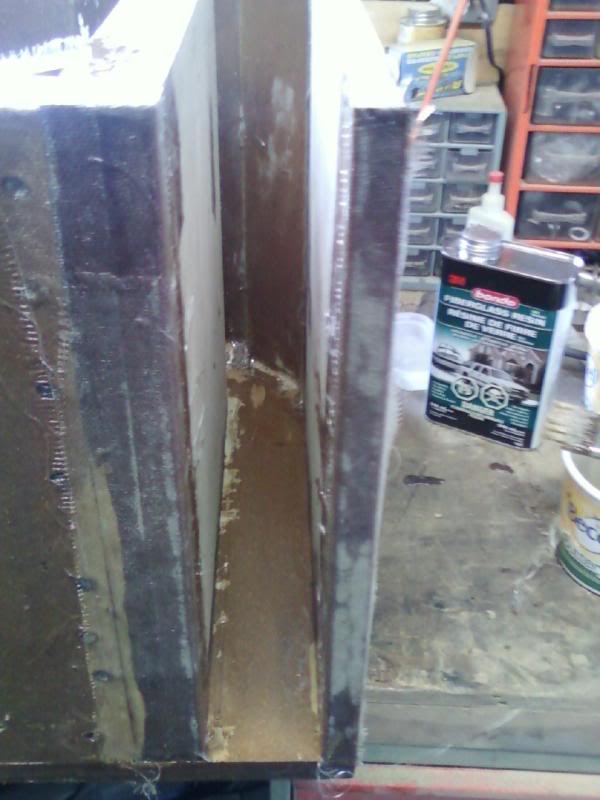

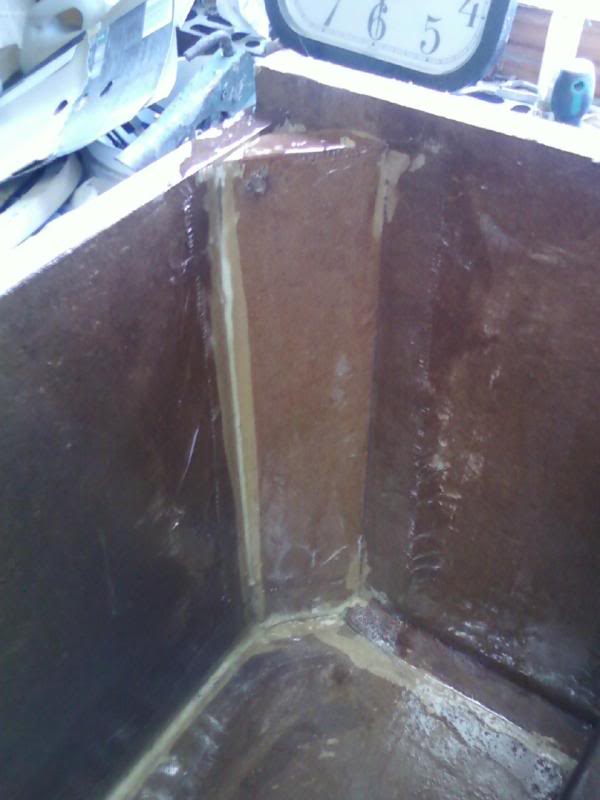

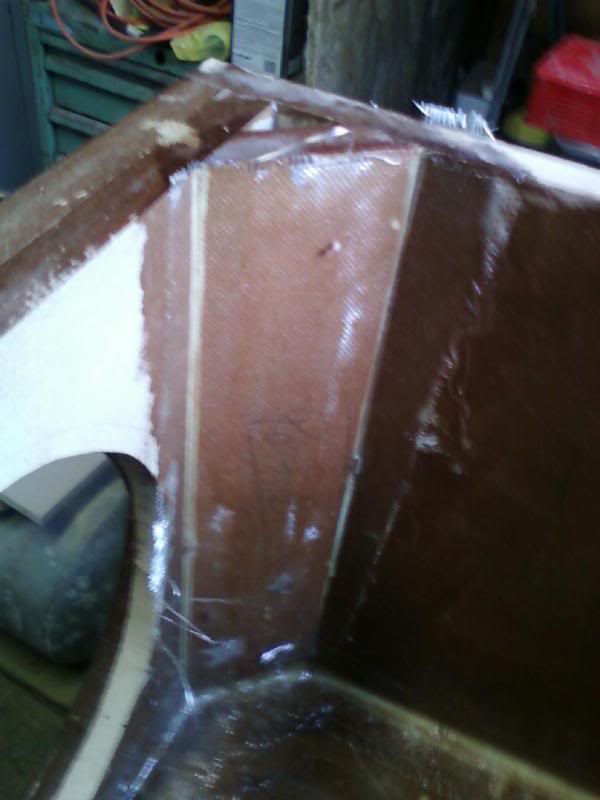

Resin and fiberglass the inside and outside
Bodyfill and paint

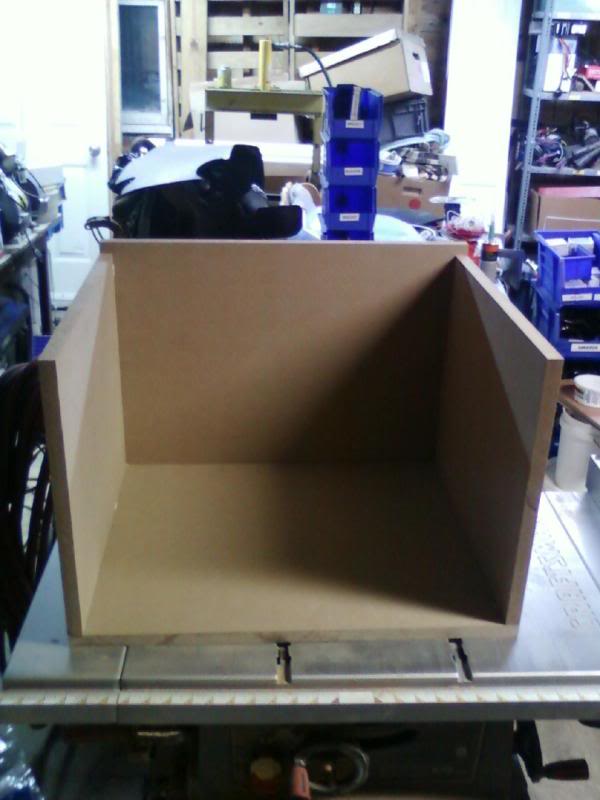

Pics below:

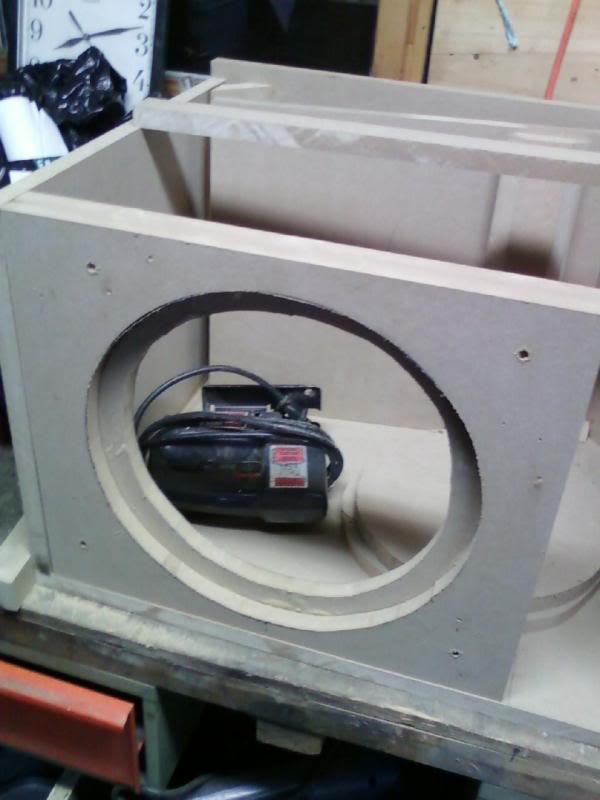

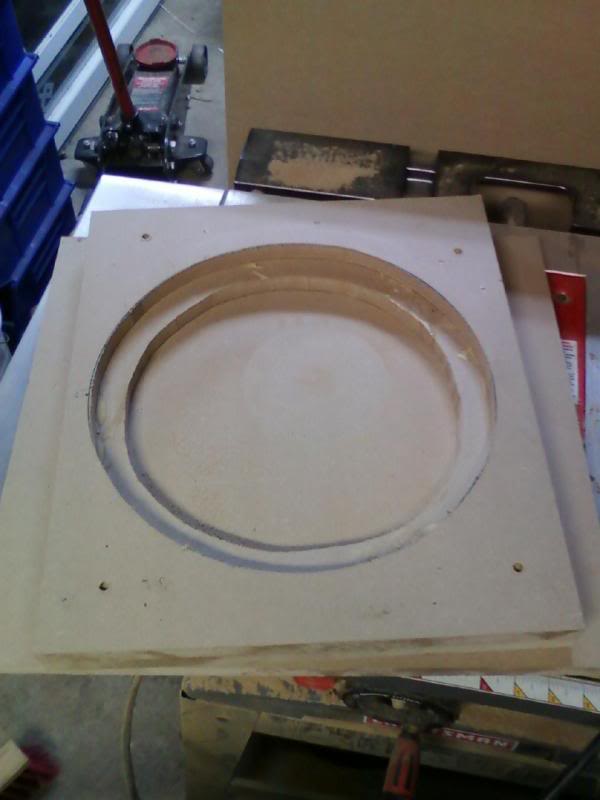

Going to have the face doubled faced and the sub flush mounted.



The face is not secured in but I sat it in place.

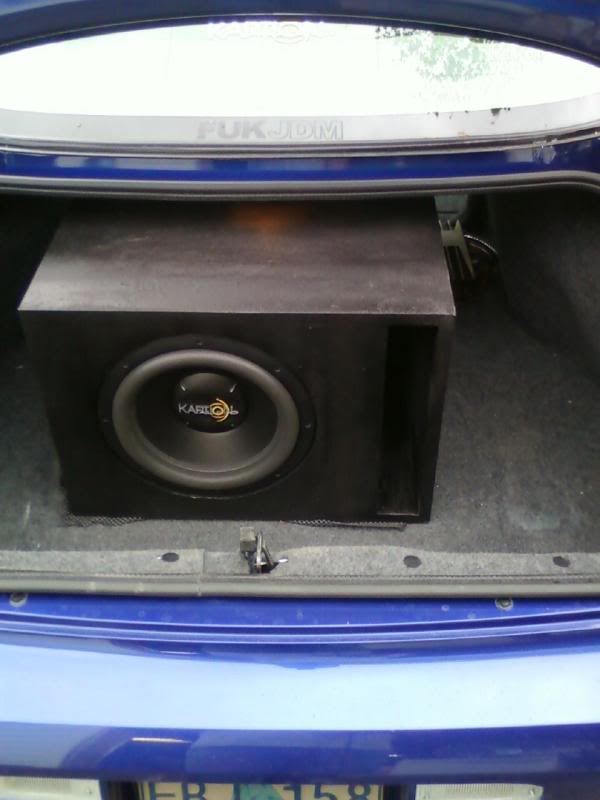

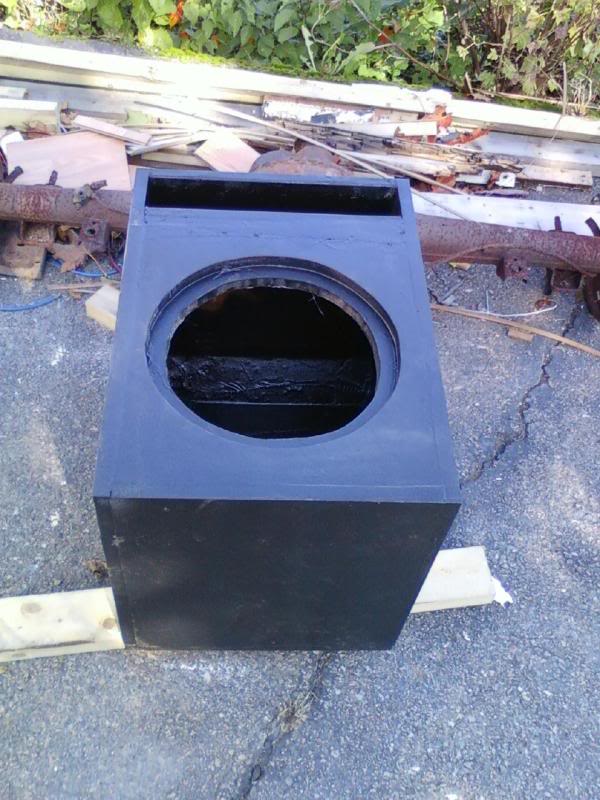

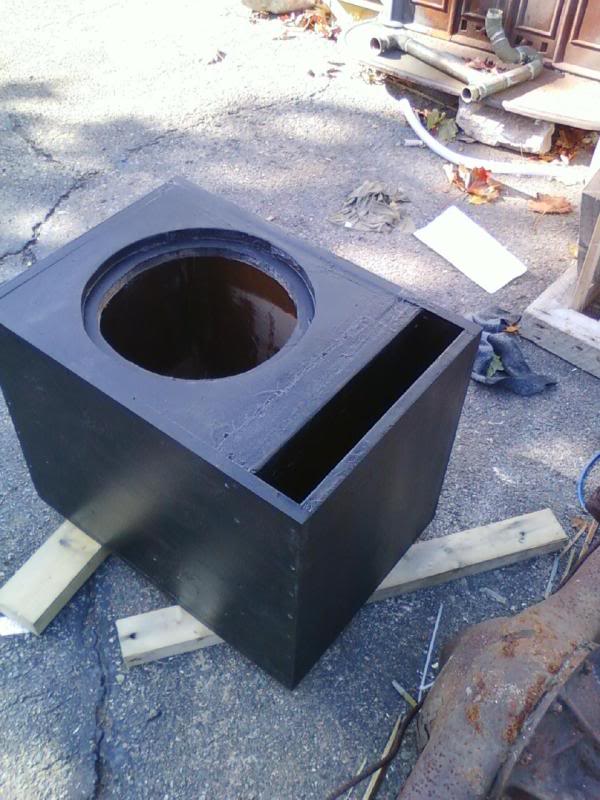

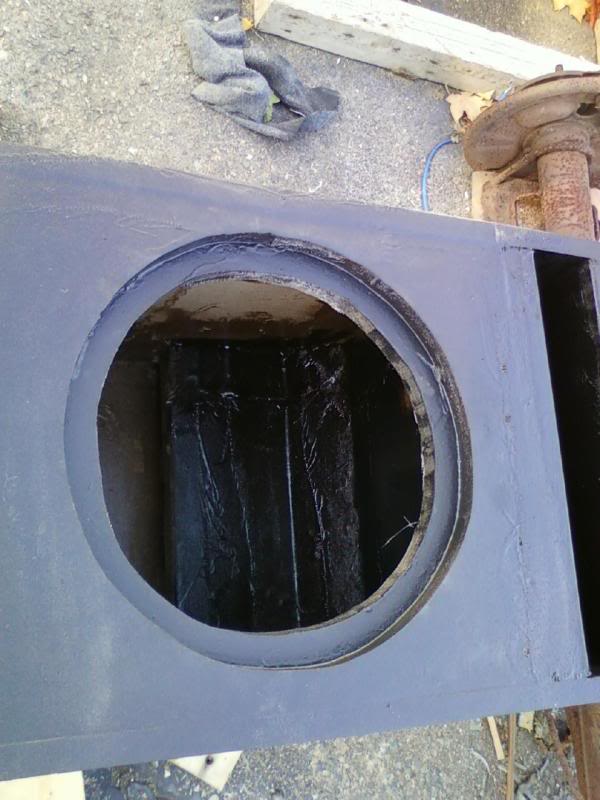

Well its done. Not pictured is the bondo process. Only the face is done since the rest is going to see carpet.

jalat

iTrader: (6)

1. Why did you only double baffle the front and port pieces?

2. Why such a small enclosure at such a highly tuned freq?

bonang

I miswrote the frq. It is 35 hrz

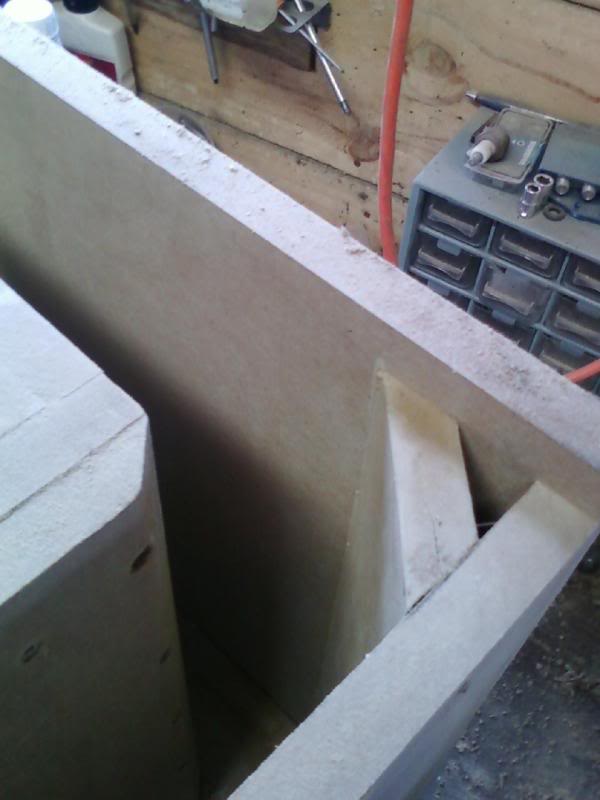

I only double faced it so I can flush mount the sub. The port is doubled becasue I was not a little to big in the volume.

Tony Dehnke

I'd round over the port - both input and output

bonang

Yea the box has changed since I took them pics. It is now body filled and painted.
