Enclosure Design & Construction Help Post and discuss your car audio box construction, design, fiberglass and other fabrication questions here.

Sub Box Screws Not Grabbing.

Thread Tools

Search this Thread

Old Oct 1, 2009 | 01:46 AM
  #11
sx4life's Avatar
1000 Watt CAFz'r
iTrader: (1)

Joined: Mar 2007
Posts: 1,832
i used kitchen cabinet screws deck screws would work great, and as said t-nuts are always an option they wont spin unleass u over tighten them
Old Oct 1, 2009 | 07:27 AM
  #12
zoomer's Avatar
500 Watt CAFz'r
iTrader: (3)

Joined: Mar 2006
Posts: 598

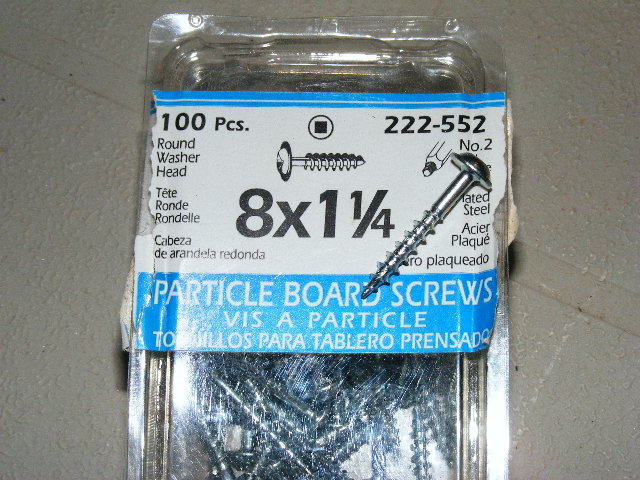

I like these types.. particle board screw...yes predrill a bit first.
A good tip is to get scraps of 3/4 plywood and cut small blocks say 1" x 2" and glue them on the underside of the box to take the screws better. Or use them to put Tnuts in. 3/16 or #32 should be good enough. Remember you have to drill a hole in the wood that is larger than the screw to fit them. I then hammer them in. Sometimes you can put them directly into particle board. try it first.

one nice thing about using Tnuts is you can use fancy allen bolts...
Attached Thumbnails Sub Box Screws Not Grabbing.-dscf3249.jpg
Old Oct 1, 2009 | 09:56 AM
  #13
LaZyLuke's Avatar
50 Watt CAFz'r
iTrader: (2)

Joined: Dec 2007
Posts: 419
Originally Posted by UNRATED
get some T-Nuts
might be tricky to install to mdf from behind but they sure hold nicely
Old Oct 1, 2009 | 10:12 AM
  #14
avidedtr's Avatar
2000 Watt CAFz'r
iTrader: (11)

Joined: Dec 2006
Posts: 2,544
I like these
Old Oct 1, 2009 | 02:52 PM
  #15
ShootenEmUp's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Sep 2009
Posts: 11
Thanks for all the advice everyone! I went ahead and used number 12: 1 & 3/4 deck screws (had them handy here in the shop). They definitely grabbed the MDF better and pulled the sub nice and snug to the enclosure. Although they worked well those hex screws (pictured below) would probably look much nicer than the silver ones. Eventfully when I get my other sub I’m going to do the switch. Is it a bad idea to remove the current ones and go ahead and put the hex ones in, or should I just leave them now that they are in?
Old Oct 1, 2009 | 03:02 PM
  #16
DeadlySones's Avatar
2000 Watt CAFz'r
iTrader: (4)

Joined: Mar 2009
Posts: 3,751
Those hex heads should have more meat on them than the deck screws.
Old Oct 1, 2009 | 03:42 PM
  #17
veeman's Avatar
2000 Watt CAFz'r
iTrader: (3)

Joined: Nov 2004
Posts: 2,455
2 words...duct tape...you can do anything with that stuff!
Old Oct 1, 2009 | 03:52 PM
  #18
DeadlySones's Avatar
2000 Watt CAFz'r
iTrader: (4)

Joined: Mar 2009
Posts: 3,751
Originally Posted by veeman
2 words...tuck tape...you can do anything with that stuff!
or .... ^^^^^^^^
Old Oct 1, 2009 | 10:33 PM
  #19
mustaine4prez's Avatar
50 Watt CAFz'r

Joined: Nov 2008
Posts: 223
weird.... this thread has the little symbol beside it indicating that I am subscribed but I'm clearly not. This is my first post on this topic. (glitchy)
oh well. since Im here Ill include my two cents.

Originally Posted by avidedtr
I like these
These are the ones I use. and obviously pre-drilled hols.

Important thing to remember, Allot of people drill the screws in way to aggressive. After you pre-drill the holes,set the clutch on your drill so it does not over tighten and strip the MDF.
MDF splits very easily. Once you strip those holes your pretty much out of luck. gotta patch em and drill new ones in different spots which will force you to turn your sub to an angle. for a protectionist as myself, this will not due.
When people come to be with leaking boxes, 90% of the time its from poorly maintained screw holes.
Its not a race, set the clutch on your drill, if your drill does not have a clutch then I would just screw them in by hand. do it right, take your time and your box will last longer then you.

I make fiberglass boxes that run from $400 all the way up to $2000. when the customer comes to pick up there new box I often train them on this just in case they decide to remover the sub themselves at some point. You think Its just screwing in a few holes"how hard can it be"? but after you striped those holes in that 800 dollar box you'll be kicking yourself. trust me.
Old Oct 1, 2009 | 10:36 PM
  #20
mustaine4prez's Avatar
50 Watt CAFz'r

Joined: Nov 2008
Posts: 223
Originally Posted by veeman
2 words...duct tape...you can do anything with that stuff!

Duct tape Is awesome. there's no place for it in your car tho. or any kind of tape for that matter.

Last edited by mustaine4prez; Oct 1, 2009 at 10:40 PM.
