10-28-2013, 08:52 PM

searcher79

0 Watt CAFz'r

Thread Starter

Join Date: Oct 2013

Posts: 5

unknown deck

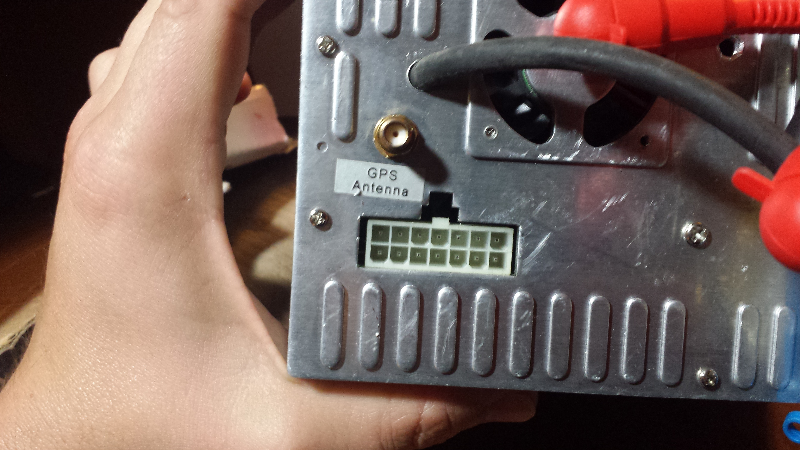

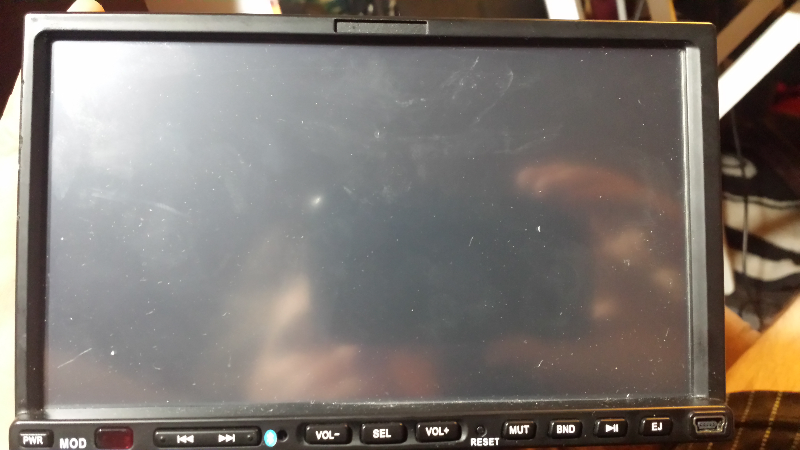

So this deck looks fancy but needs a wire harness and I have no clue what brand it is. Yes I looked all over the deck remote and the box there is no brand of any kind. Looks like the name was above the screen in the middle of the deck but is no longer attached.
I got it with a car. Was not installed. I want to try it out.

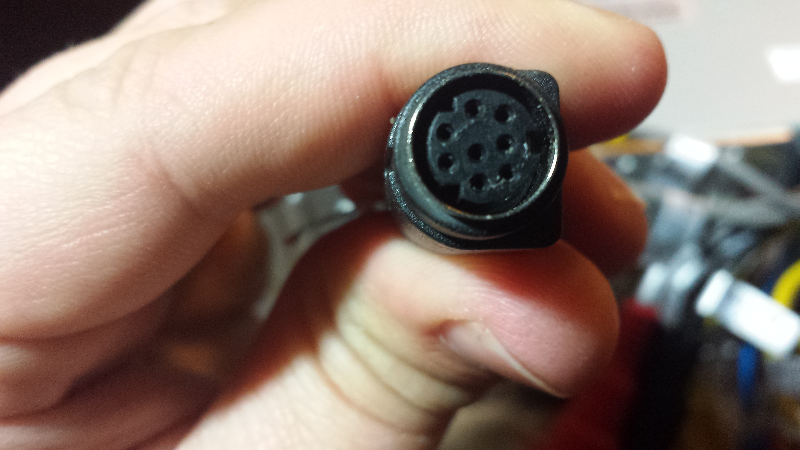

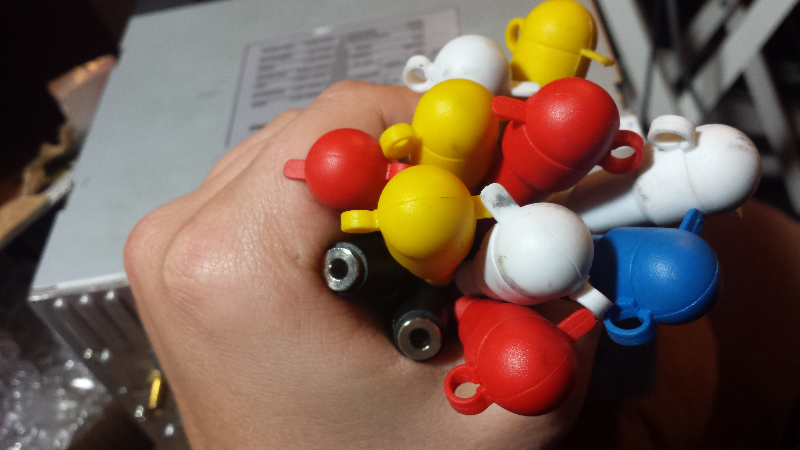

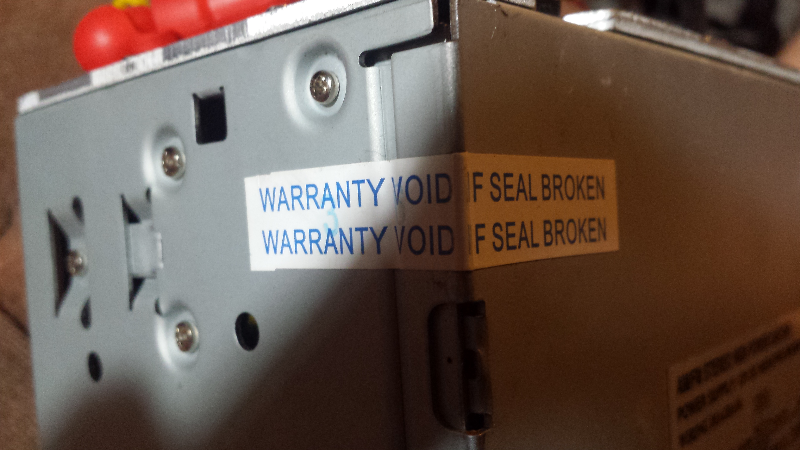

Took numerous pictures of it if someone needs more to help identify let me know.
Any help would be great thanks.

Attached Thumbnails

unknown deck-forumrunner_20131028_204750.png

unknown deck-forumrunner_20131028_204804.png

unknown deck-forumrunner_20131028_204816.png

unknown deck-forumrunner_20131028_204829.png

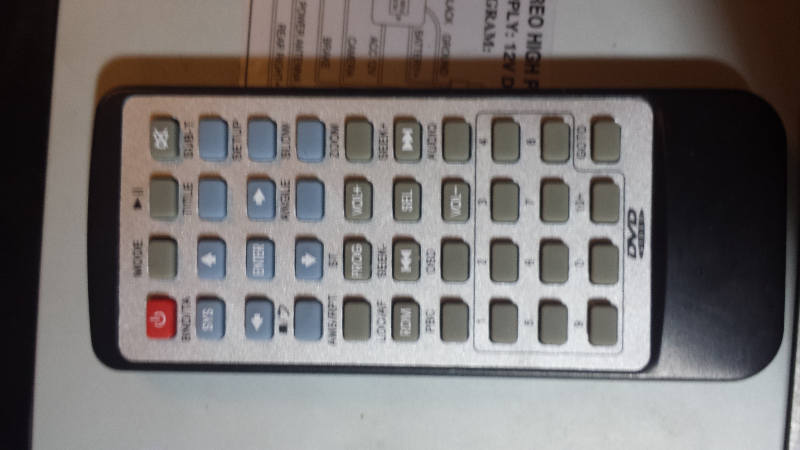

unknown deck-forumrunner_20131028_204839.png

unknown deck-forumrunner_20131028_204849.png

unknown deck-forumrunner_20131028_204857.png

unknown deck-forumrunner_20131028_204913.png

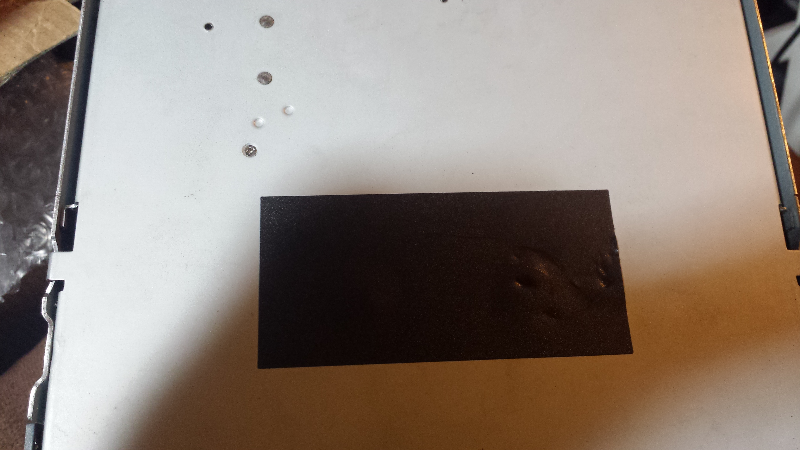

unknown deck-forumrunner_20131028_204923.png

unknown deck-forumrunner_20131028_204937.png

10-28-2013, 10:11 PM

ToxicAcoustiks

50 Watt CAFz'r

Join Date: Jun 2008

Posts: 157

it truly is unknown. They are made in hong kong and generally and sold on eBay. You can try searching ebay for that unit or one similar and contacting the seller and seeing if they'll send you out just the harness. Odds are it will work for yours.

Innovatek is quite similar to that if I remember correctly.

10-29-2013, 11:20 AM

monsoon520

0 Watt CAFz'r

Join Date: Oct 2013

Posts: 16

that remote looks very similar to the one i had in my integra..i dont rermember the brand tho..i do have pics of my integra and the double din installed as soon as i get home i will check!

10-29-2013, 01:57 PM

searcher79

0 Watt CAFz'r

Thread Starter

Join Date: Oct 2013

Posts: 5

Quote:

Originally Posted by monsoon520

that remote looks very similar to the one i had in my integra..i dont rermember the brand tho..i do have pics of my integra and the double din installed as soon as i get home i will check!

Thank you very much

10-31-2013, 01:45 AM

monsoon520

0 Watt CAFz'r

Join Date: Oct 2013

Posts: 16

Valor was the brand of mine.. Try that

10-31-2013, 06:43 AM

searcher79

0 Watt CAFz'r

Thread Starter

Join Date: Oct 2013

Posts: 5

Thank you I will look it up. Hopefully I can find a harness that resembles the sticker and be able to get it for a reasonable price.

10-31-2013, 11:20 AM

monsoon520

0 Watt CAFz'r

Join Date: Oct 2013

Posts: 16

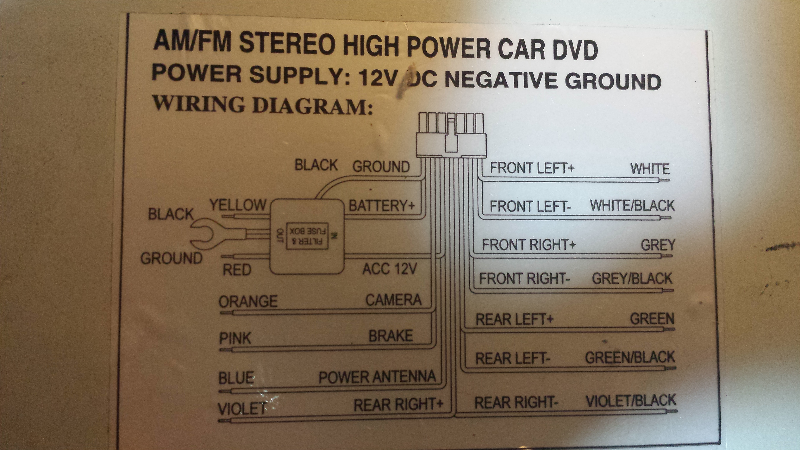

worst case..shouldn't be to hard to make a harness for it i mean you already have the wiring diagram..

10-31-2013, 12:36 PM

searcher79

0 Watt CAFz'r

Thread Starter

Join Date: Oct 2013

Posts: 5

Yea I juat dont know what fuse size to use and what wires to run thru it. It looks like more than just the power wire. I have never ran into this problem before so I never paid much attention to the harness. So what type of connections so I need to plug into the radio? I know I need an in line fuse but what size? Do I need to run more than 1 wire thru it? What wire size do I use?

10-31-2013, 12:53 PM

monsoon520

0 Watt CAFz'r

Join Date: Oct 2013

Posts: 16

id say about 14-16 gauge wire,as far as fuses go most (that ive seen) has had a 20/25 amp fuse..you can buy an inline filter it helps to reduce wine that you might get...so the inline fuse will go on the power(red) and the filter will be on the ground(blk) and thats pretty much it
