i'm halfway thru. give me 15 minutes



yeah man no rush i was just curious

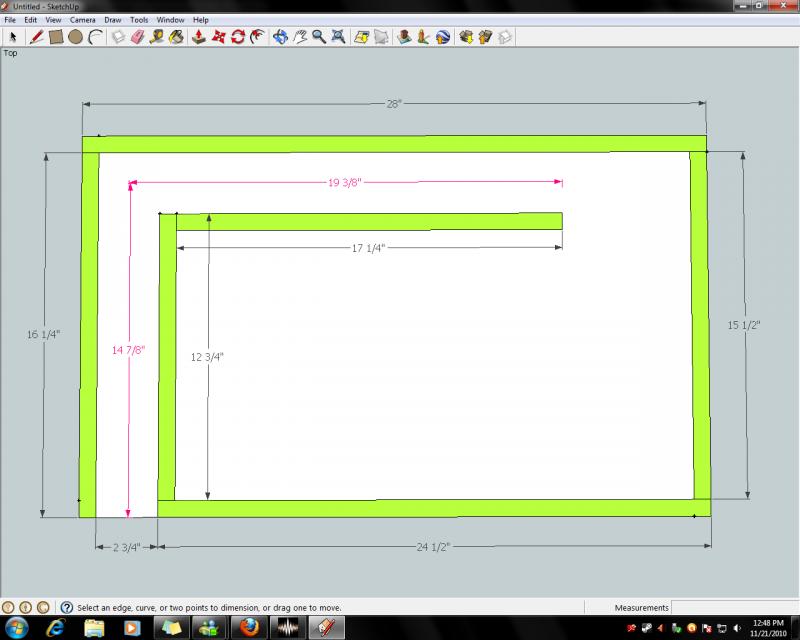

yeee no worries, i'm blasting house music and using my program for the design, just using google sketchup to make the bluprint

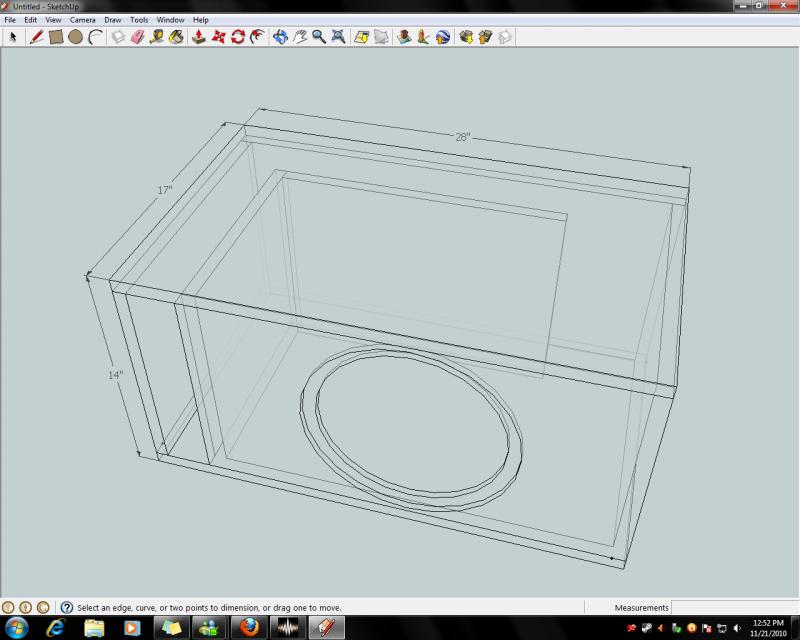

This will be a low end monster.

2 cubic feet
Tuned @ 33hz
34.38 sq in of port

Top & Bottom = 28" x 17"
Front = 24.5" x 12.5"
Back = 28" x 12.5"
L Side = 16.25" x 12.5"
R Side = 15.5" x 12.5"
Port 1 = 12.75" x 12.5"
Port 2 = 17.25" x 12.5"

In case you were curious, the pink dimensions represent the length of the port



alright man, you're the expert, looks good to me, whats the damage for that box?



33hz is low for a street box. I built one that low for someone before and they ended up using their crappy prefab instead saying it was louder.

With just a 12 I would go higher

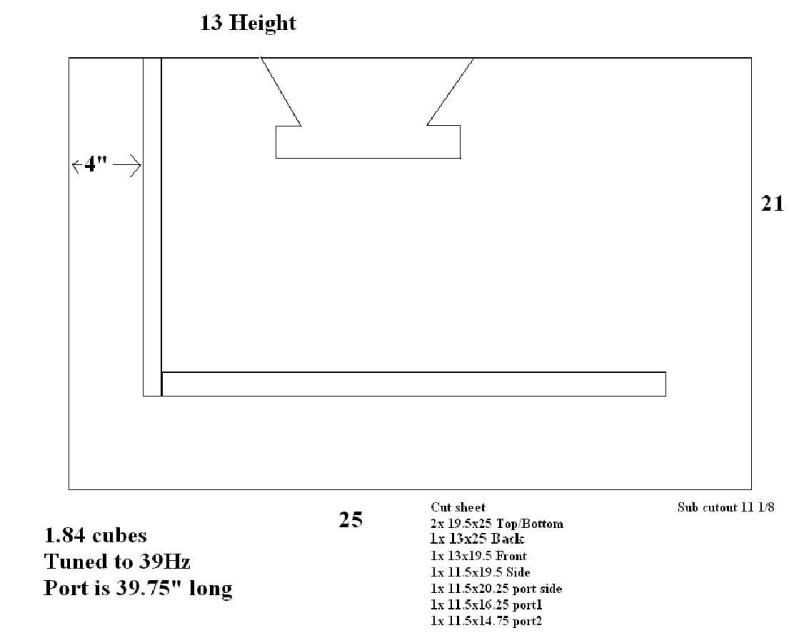

Here's a older deisgn I made for someone.



your design looks fine, but knowing the parameters of this subwoofer, tuning high wont yield good results. tuning low will give a 'flatter' response throughout the freq range rather than having a higher tuned enclosure which might sound louder at certain freq because it is 'peaky'



i dont build during the winter, as my garage is packed with my dad's cars and its cold as f

as for prices and such, you must contact me via PM so i dont breech any rules of CCA (i've been warned too many times)



tried sending u a pm but it said you need delete some messages
