Hi guys

Can somebody please help with some box specs or let me know if i am doing something wrong?

I have a 1962 mini panelvan... trying to build the car for stock2.

- 2 x starsound 12s
- 1 x starsound 15k
- 1 x datasafe hx505

the current box i built is a slot port - around 2.8cuft.

the car plays around 68hz...

best i got was a 152.2dbs

what am i doing wrong?
colin1013 is offline
Old 06-01-2011, 02:46 AM
  #2
0 Watt CAFz'r
Thread Starter

Join Date: Aug 2009
Posts: 45

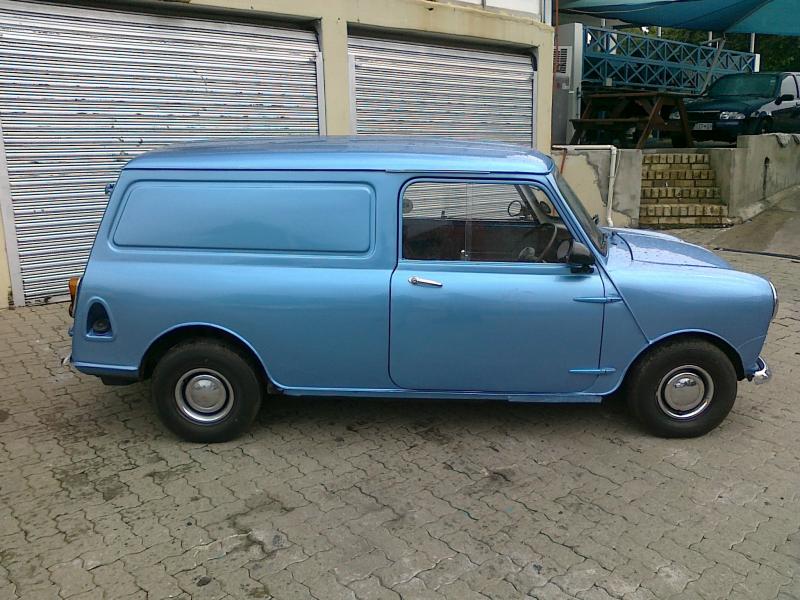

the van
Attached Thumbnails Mini Help-09042010173.jpg
colin1013 is offline
Old 06-01-2011, 02:49 AM
  #3
0 Watt CAFz'r
Thread Starter

Join Date: Aug 2009
Posts: 45

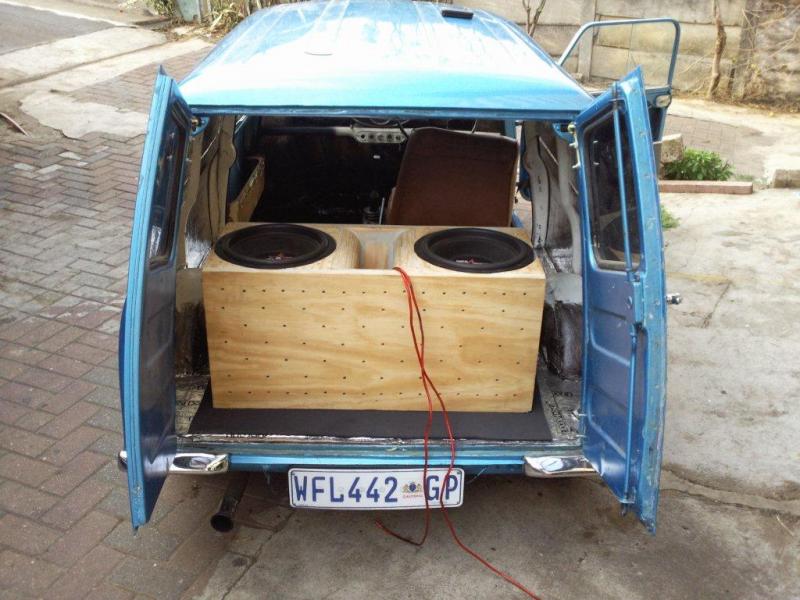

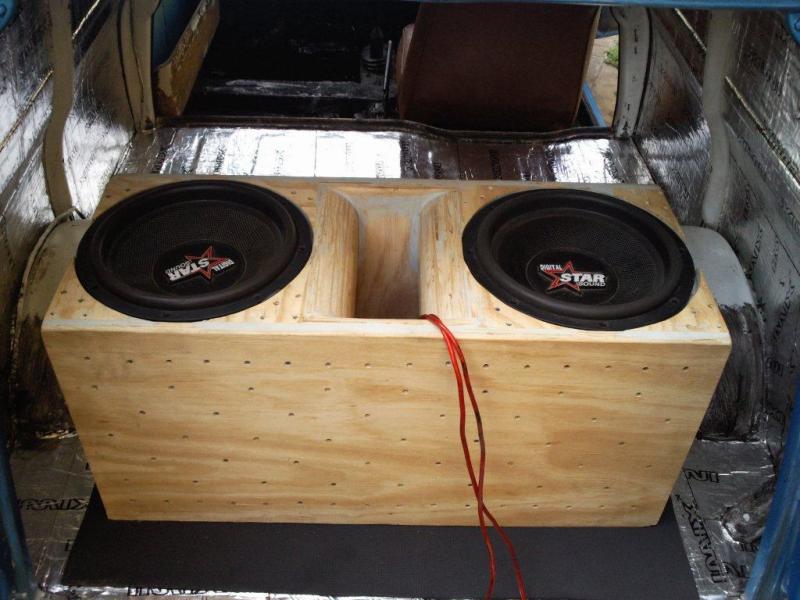

the box
Attached Thumbnails Mini Help-photo277copy-1-.jpg   Mini Help-photo277copy-2-.jpg
colin1013 is offline
Old 06-02-2011, 05:50 AM
  #4
0 Watt CAFz'r
Thread Starter

Join Date: Aug 2009
Posts: 45
so many views and no response?
colin1013 is offline
Old 06-05-2011, 12:05 AM
  #5
50 Watt CAFz'r

Join Date: Dec 2010
Posts: 89
that is pretty cool

you should build an ugly box (see Yuli and DJ topics) with room for a easily tuned port, they use flared metal ports and pvc/sonotube pipes. You can get massive gains by tweaking box volume (movable back wall) and port lenght.
Murilo is offline
Old 06-14-2011, 03:16 AM
  #6
0 Watt CAFz'r
Thread Starter

Join Date: Aug 2009
Posts: 45
this is all new to me...

can you send me the links to these topics please...

what cuft should a 12s box be to play around 68hz?
colin1013 is offline
Old 06-14-2011, 11:42 AM
  #7
0 Watt CAFz'r

Join Date: Mar 2007
Posts: 7
Did you get a data sheet with your 12s subs?
If so, get the Thiele/Small parameters for Fs (Hz) and Vas (ft3). Once you have that, put it into this formula and it should give you the ft3 that the box should be.. so for example, my Compliance Volume (Vas) is 2.40, my Free-Air Resonance (Fs) is say 37, and I want to tune the box for 68Hz..

So you put it into the equation below and you get a number like .33ft3 MINUS the driver.. 68Hz is REALLY high for 12's.. most guys tune around 32-40Hz max from what I hear.. Basically the higher the tuning freq., the smaller the box..

The equation is this:
Volume = Air Compliance / (Tuning Frequency/Fs) ^1/0.31

I'm sure there's probably a calculator out on the net somewhere that would do this in a second..

If you were tuning it at say 32Hz, your box volume would be about 3.8ft3. (That's my JBL GTi1200 T/S specs).

Remember to include driver and port ft3 as well before you build the box. These would be inside dimensions as well.

Good Luck.
dbking is offline
Old 06-28-2011, 08:40 AM
  #8
0 Watt CAFz'r
Thread Starter

Join Date: Aug 2009
Posts: 45
thanks for the help guys... new box built... car is up to 156.7 now... still lots more work to do though...
colin1013 is offline
Old 06-28-2011, 08:41 AM
  #9
0 Watt CAFz'r
Thread Starter

Join Date: Aug 2009
Posts: 45
will post pics 2moro
colin1013 is offline
Old 06-28-2011, 02:59 PM
  #10
Level 3 Supporter

Join Date: Feb 2011
Posts: 391
That's a huge db gain! Congrats! Did u build a box with some adjustment or another beauty like the original? How did u calculate port size? Have u tried the box pointed in all directions? An inch or two either way CAN equal a db if you're lucky.
