yukon build

Old 04-10-2013, 01:56 AM
  #1
50 Watt CAFz'r
Thread Starter

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120

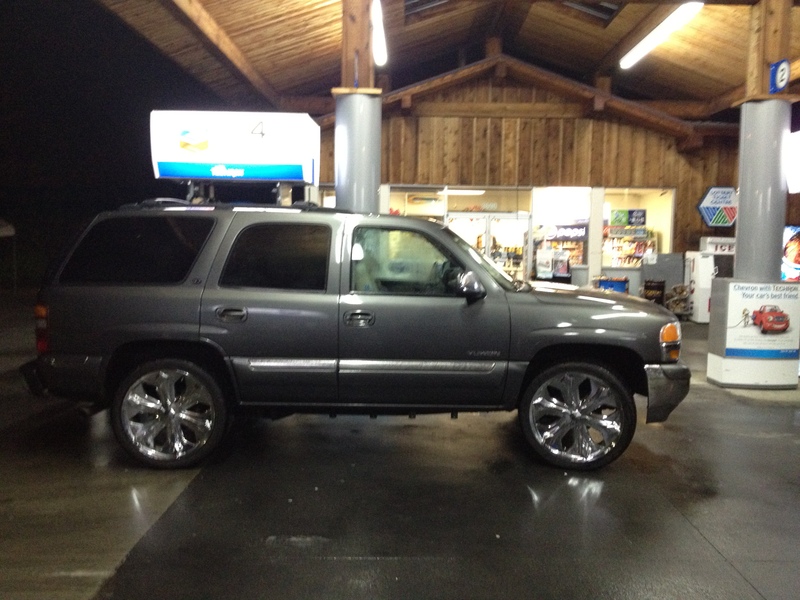

yukon build

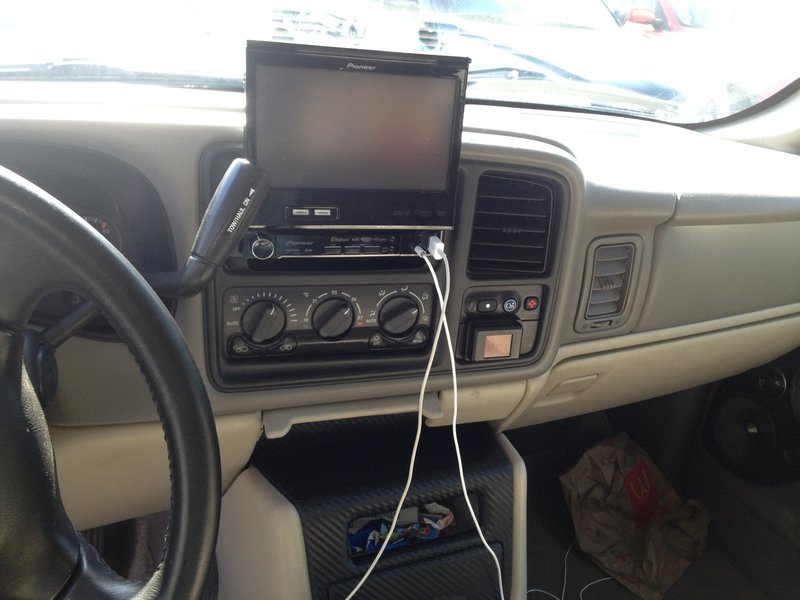

pioneer 6300bt
concept 50x4
saz-2500

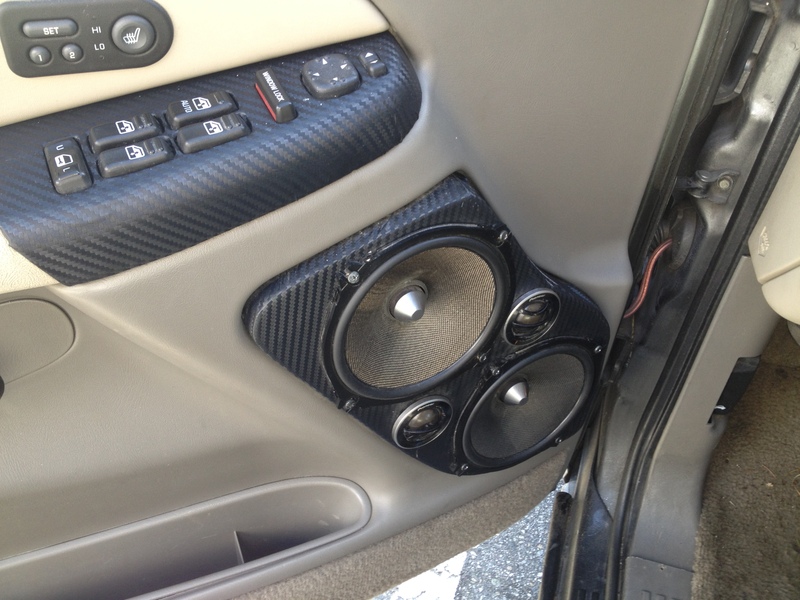

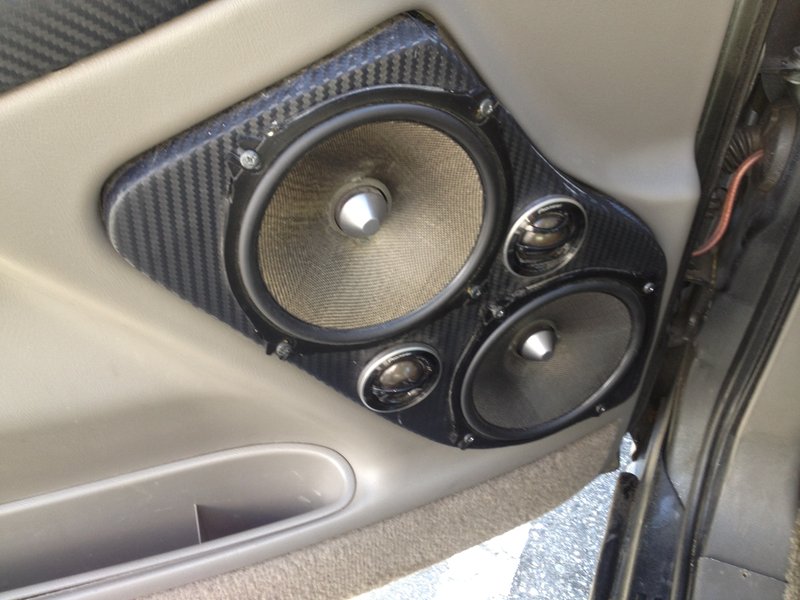

pioneer ts-1720c
sa-15"x4"old
zv3 15"x2 "new"

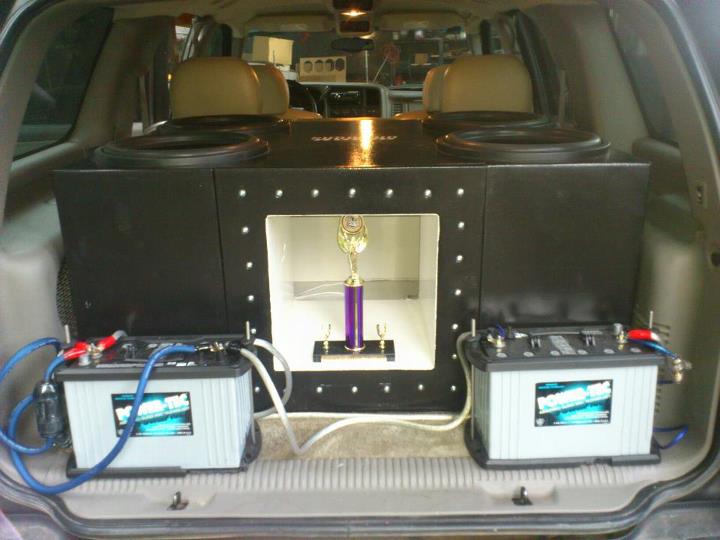

powertec 3100 x2 "batts"
knukoncept wires/fuses

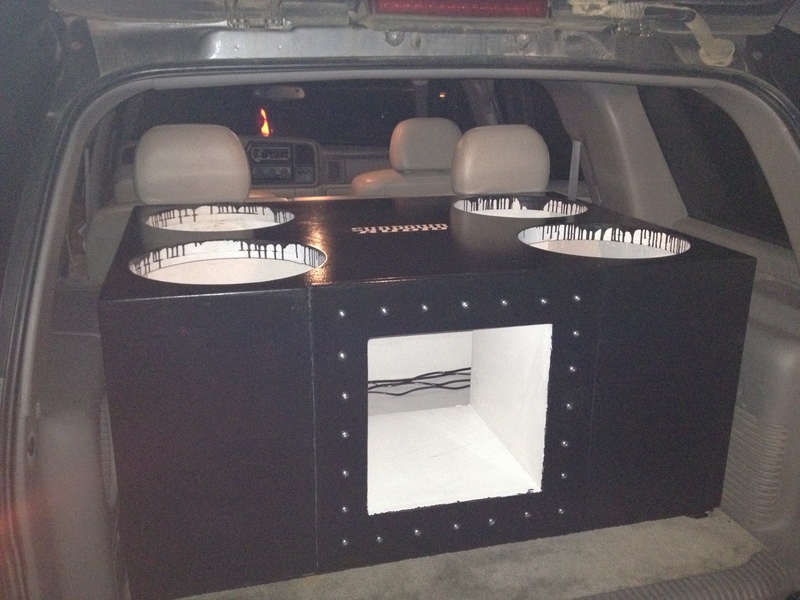

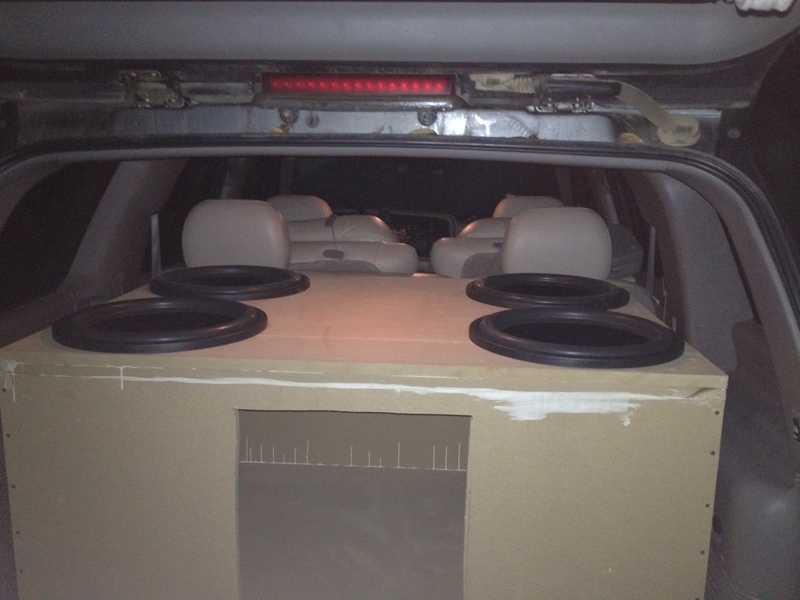

Attached Thumbnails yukon build-img0067ov.jpg   yukon build-img0674wn.jpg   yukon build-img0673zd.jpg   yukon build-img0672y.jpg   yukon build-img0071yxf.jpg

yukon build-img0201th.jpg   yukon build-img0203se.jpg   yukon build-56223710151855969205188.jpg

Last edited by leagumdrops; 04-10-2013 at 03:38 AM.
leagumdrops is offline
Old 04-10-2013, 02:00 AM
  #2
50 Watt CAFz'r
Thread Starter

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120
we we not happy with the performance only achieving 148 db.

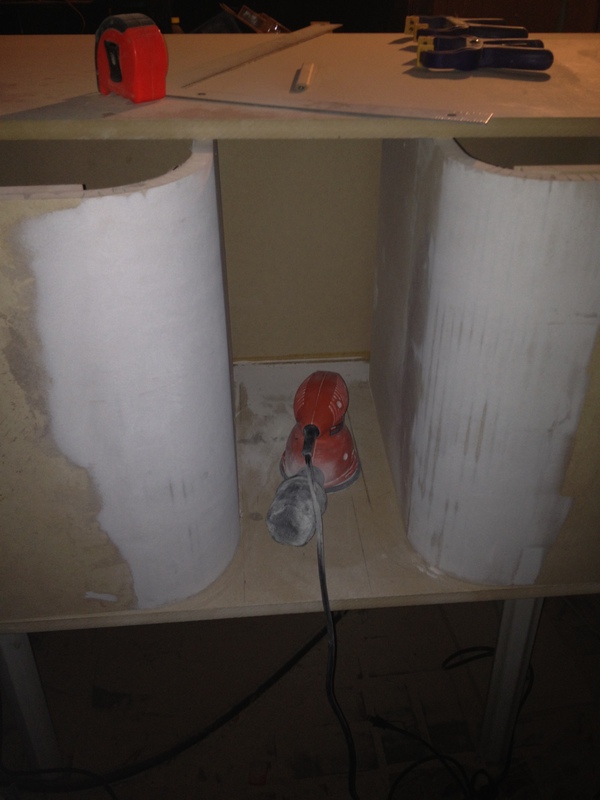

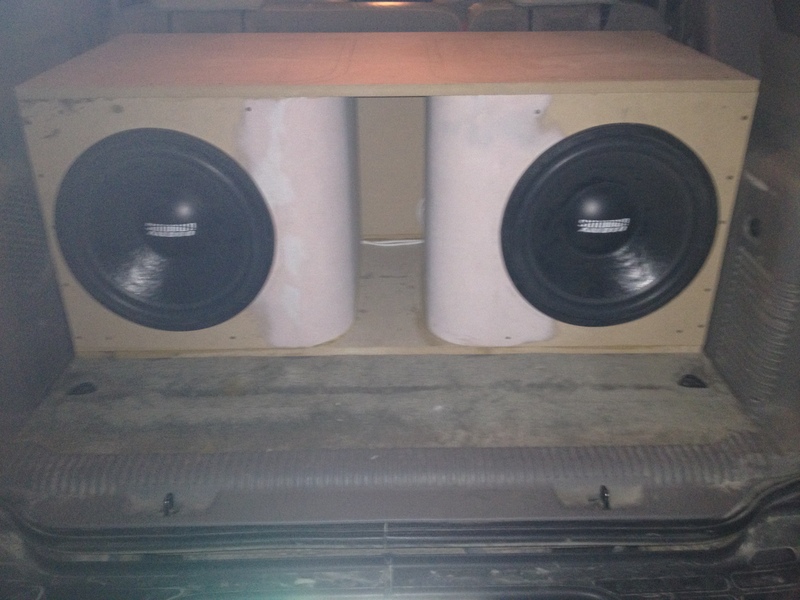

we decided we did not have enough power for a sub up port back application so we went to work...






Attached Thumbnails yukon build-img0446yz.jpg   yukon build-img0449vc.jpg   yukon build-img0465kx.jpg
leagumdrops is offline
Old 04-10-2013, 02:06 AM
  #3
50 Watt CAFz'r
Thread Starter

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120

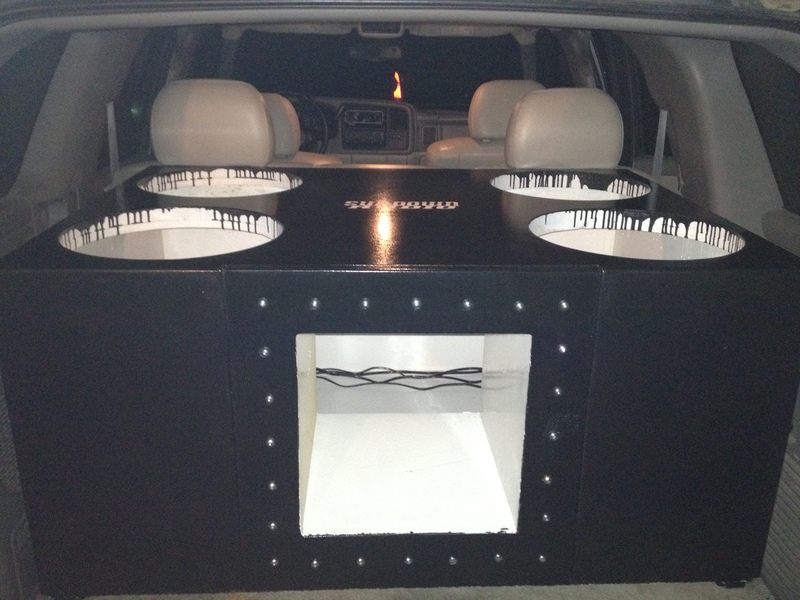

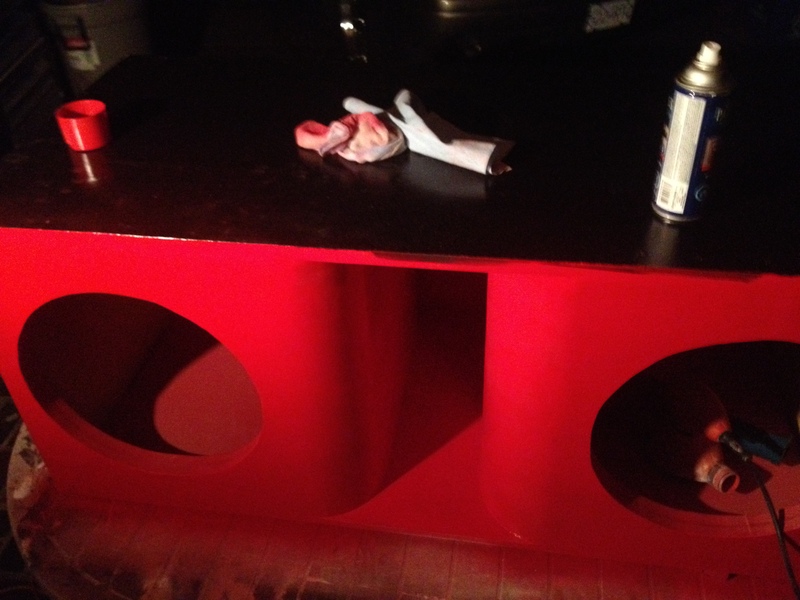

so this turned out good with more output than the 4x15"s sa's but two things we wanted to do..
1 get more motor force
2 get rid of that awful red

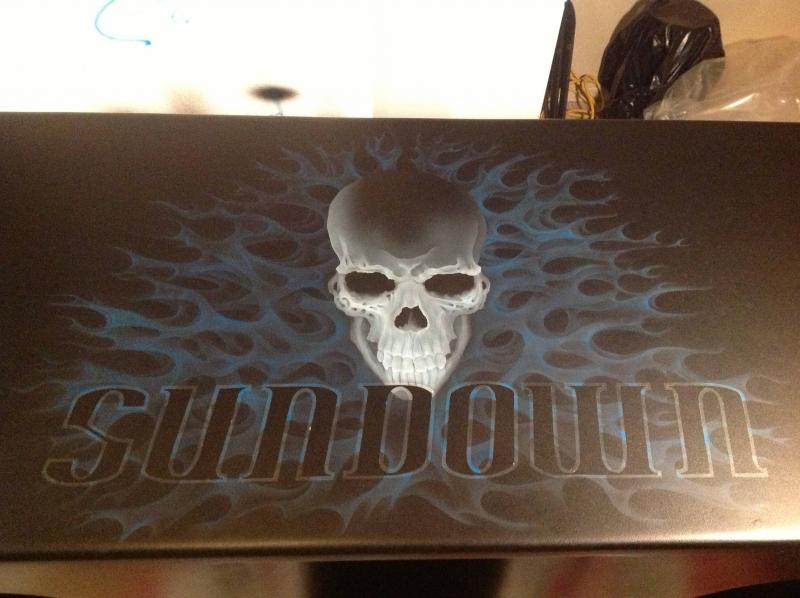

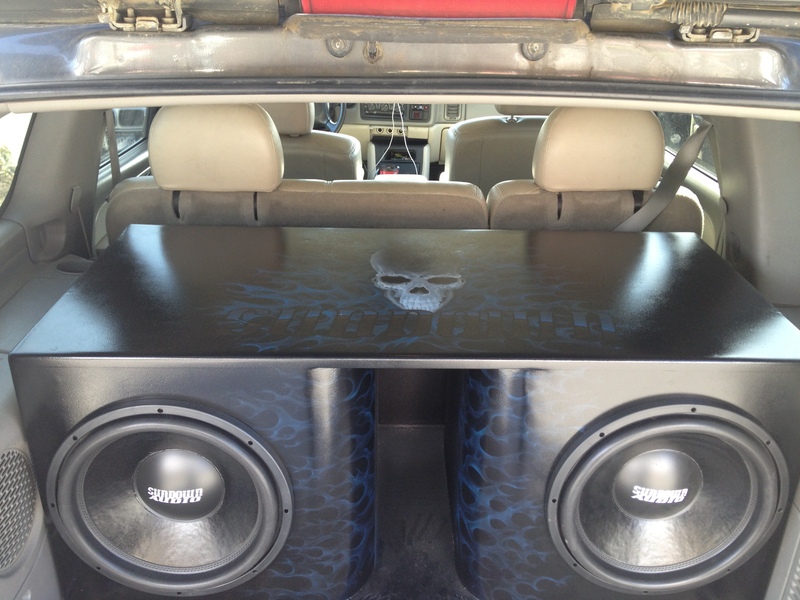

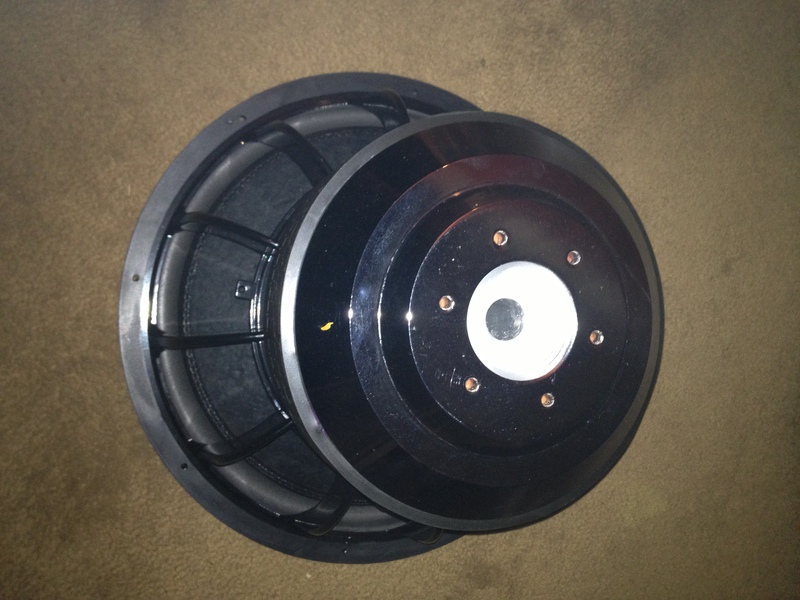

sold the sa-15"s and got two sundown zv3's 15's



Attached Thumbnails yukon build-photoywj.jpg   yukon build-img0473ri.jpg   yukon build-img0676fg.jpg
leagumdrops is offline
Old 04-10-2013, 02:11 AM
  #4
50 Watt CAFz'r
Thread Starter

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120
the output from the zv3's over the sa'a even on this low of power is staggering and sounds even better.

so far have not had the chance to get it on the meter but i will post results when we do.
to the ear its the loudest its ever been but the meter may say different
leagumdrops is offline
Old 04-10-2013, 09:22 AM
  #5
500 Watt CAFz'r
iTrader: (1)

IT Hz's Avatar

Join Date: May 2009
Posts: 737
Badass !!!!! Nice work on the enclosure. Next time you "bend wood" make it so the cuts are done on the inside of the box.

Last edited by IT Hz; 04-10-2013 at 09:24 AM.
IT Hz is offline
Old 04-10-2013, 02:36 PM
  #6
50 Watt CAFz'r
Thread Starter

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120
Originally Posted by IT Hz View Post
Badass !!!!! Nice work on the enclosure. Next time you "bend wood" make it so the cuts are done on the inside of the box.
the cuts are on the inside and fiberglassed
leagumdrops is offline
Old 04-10-2013, 08:44 PM
  #7
500 Watt CAFz'r
iTrader: (1)

IT Hz's Avatar

Join Date: May 2009
Posts: 737
my bad, the one picture looks as though it was done on the outside. What did you tune the enclosure to?
IT Hz is offline
Old 04-10-2013, 09:59 PM
  #8
50 Watt CAFz'r
Thread Starter

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120
its tuned to 30hz truck peaks at 38 . we tuned higher before but it was a little harsh for daily prob gave up a db or two but plays 20hz no problem

Last edited by leagumdrops; 04-10-2013 at 10:02 PM.
leagumdrops is offline
Old 04-10-2013, 11:49 PM
  #9
500 Watt CAFz'r
iTrader: (1)

Sonic's Avatar

Join Date: May 2012
Posts: 539
Very nice mann, those z's in that box looks wicked !
Sonic is offline
Old 04-11-2013, 10:18 AM
  #10
50 Watt CAFz'r
Thread Starter

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120
thanks man!!
leagumdrops is offline
