Ok this is what i have in my boat

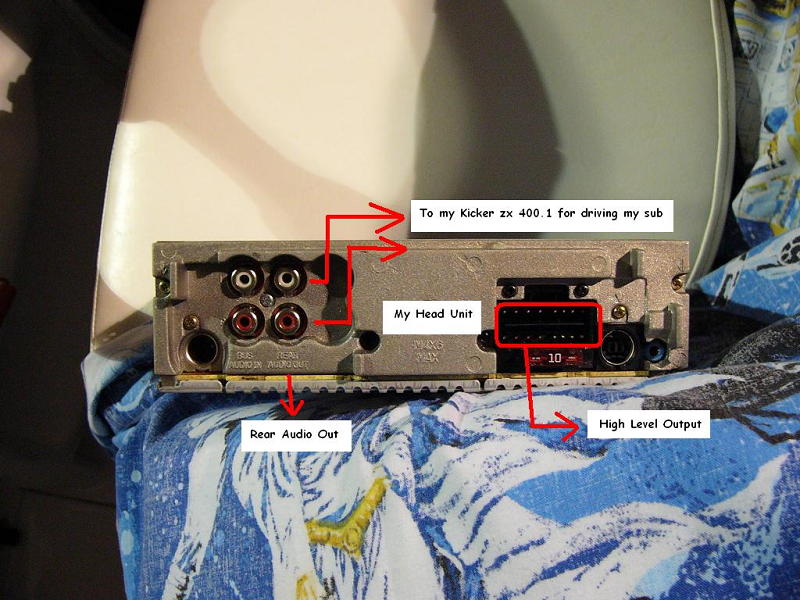

Head unit CDX-F5000 Sony output 4 X 23 Watts RMS Speaker Level and 1 audio Rear Out ( RCA )
My Amp a Power Acoustic PS-4 800 4 X 85 w RMS ...driving four speaker
- 2 Sony Dual cone XS-MP61 ( 20 W rms 4 ohms ) and
- 2 Kicker KM 620 Coaxial ( 65 W rms 4 ohms )
My other amp for my sub is a Kicker zx400.1 mono and the sub is a RockFord M110S4 200 Watts Rms 4 ohms.....

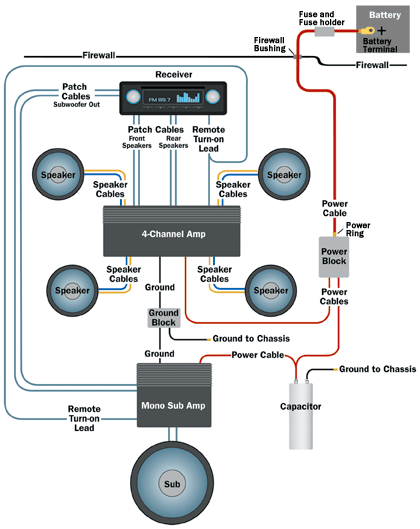

My question is ......i find this drawing ...and to connect the Head Unit to PS-4 800 what is the best way ...what i have found is
1- Take the the four Speaker Level...and buy a LOC ( Line Output Converter ) SLC-4 Scosche ...and drive the amp
2- Buy a EQ ....and use the output ( 4 RCA ) and drive my amp
3- Buy a Crossover ...with four rca output
Wich way is the best ??? i am not a guru in audio system ...and i made some search on loc ...and not found any con ....can you help me
thank`s in advance ...and hope my question is clear



Ok maybe i am not very well understand...... what i need is how to connect a Head Unit ....to my amp to drive my 4 speaker ....my amp have only 4 preamp input RCA .....what is my best choice ???
1- Take the the four Speaker Level...and buy a LOC ( Line Output Converter ) SLC-4 Scosche ...and drive the amp
2- Buy a EQ ....and use the output ( 4 RCA ) and drive my amp
3- Buy a Crossover ...with four rca output
Thank's again to take time to respond me



ok here goes - see if i got this right.

You have 4 outputs from your head unit right. front and rear, but no sub out.

If this is the case buy a splitter that changes the single rear output to two ouputs - curcuit city has them.

run the one output to your to your 4 channel and the other to your sub. use the volume remote off the sub amp, looks like a telephone jack, to control the sub volume. set your gains and HP / LP (60-80 for the sub)so they blend properly.

If your head unit has no pre outs i would recommend looking for a different unit. Those converters are garbage for the most part unless you send big bucks, and replacing the head unit is cheaper.

Hope this helps.



AudioControl LC8
typ thing will work
but i like what he/she said
"If your head unit has no pre outs i would recommend looking for a different unit. Those converters are garbage for the most part unless you send big bucks, and replacing the head unit is cheaper."



What I did was use a LOC. and ran those RCAs to a crossover unit. Then those RCA's to your amp.

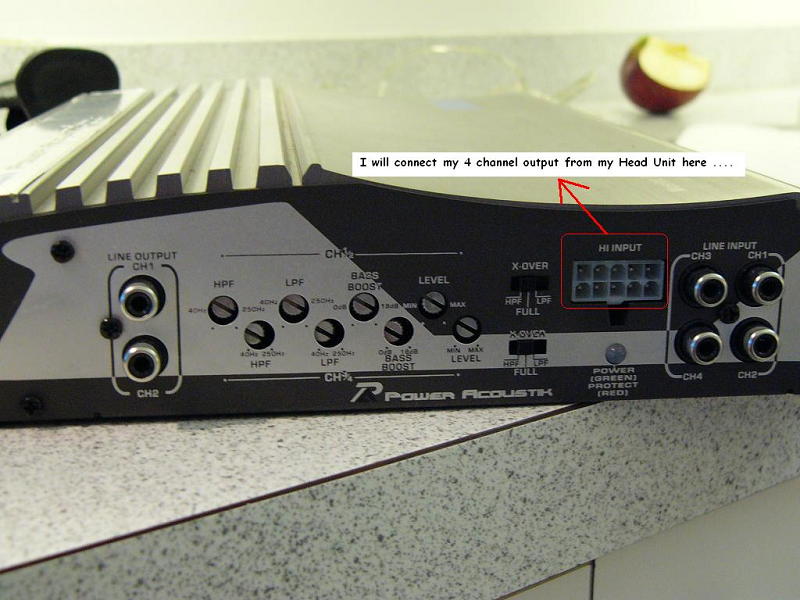

Sorry guy ....i made a mistake ... my 4 way amp have hi level input ..... ok i will run 10 feet of cable ( my head unit to my PS4-800 amp ) .... wich choice you like the most ;
1- Head Unit Hi level to Hi level input Amp
2 - use LOC to connect my head unit to my Amp
Thank`s again to take time for respond me
