legn8er

Information on my system is located on this thread:

http://www.canadiancaraudio.com/online/general-spl/29886-own-subwoofer-enclosure-will-new-amp.html#post274595

I am in need of help for somone to explain what and how I connect this amp instead of my old one to become Bridges at 4OHM - 600 RMS thanks.

97'scort

To properly bridge that sub you will take the positive wire from the first output to the subwoofers, and the negative return to the negative connection on the SECOND output. Then all you need to do is make sure your subs are providing 4 ohms of resistance, as this amp is not 2 ohm stable.

Do you have the CL12D2 or CL12D4 subs?

legn8er

I have, CL12D4 can you please give me your aim or msn that you can guide me through, Ima newb and would like to get it wired today...

97'scort

I'm at work until 5:30 MST So no MSN here.

If you have the D4's, here's how you want to wire them (sorry the image is tiny, but it's straight from the Kaption manual for those subs).

legn8er

http://www.soundbuggy.com/forum/files/dcp_6853_697.jpg

this is the pic of the slots... what do i do with them ***** prior to wiring, do i set them somewhere? before wiring, or what do i do, i dont kno where to start.

legn8er

that pic doesnt help me, lol I dono what to do

97'scort

heh, give me a minute and I'll draw this out for you.

legn8er

Thx appreciate it alot, maybe its easier for me to Take a pic of my other system, like how the wires go from my old amp, and all you can do is tell me what wire (color) goes to what slot on the pic of the new amp.

legn8er

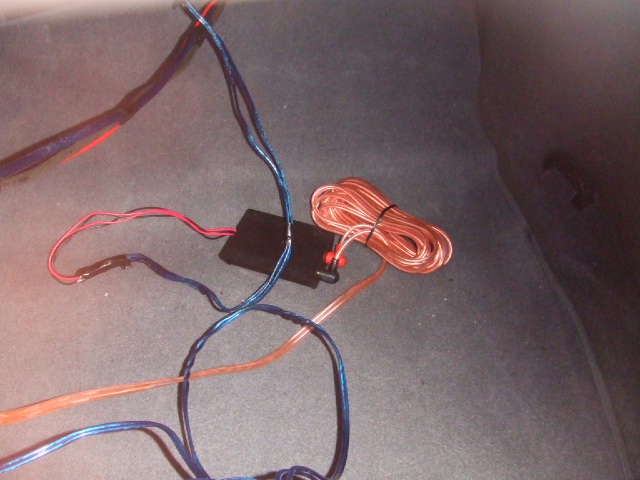

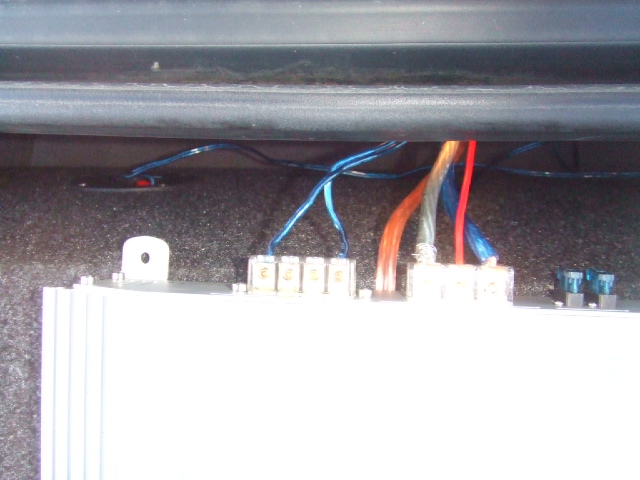

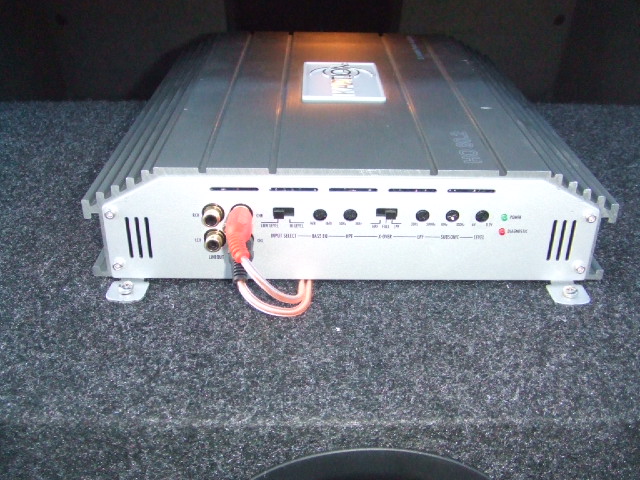

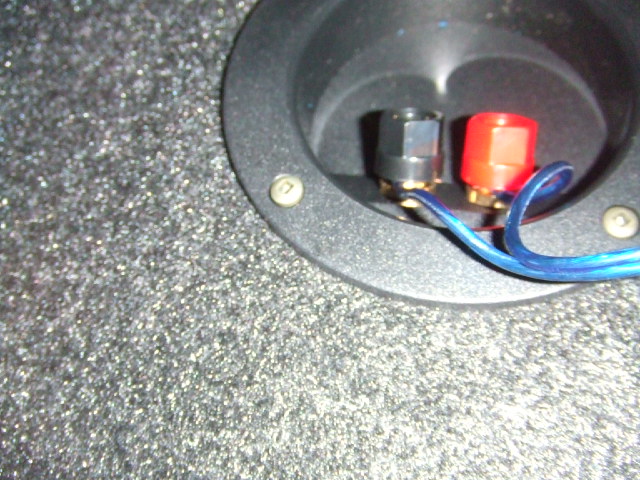

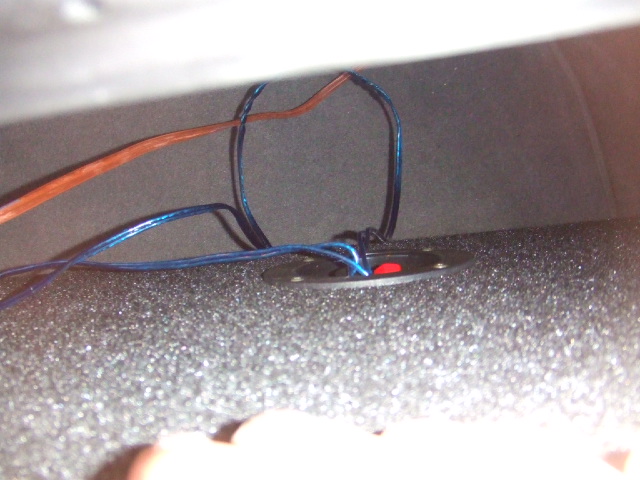

Here are the pics of old amp, now what do i remove from old amp and where to put each wire in the new amp?

97'scort

Hey, sorry for bailing on you earlier. An IT guy came down just as I was typing my reply and informed me that they're cutting off my internet since apparently I use it too much at work. Oh well. If you still need a hand let me know.
