How do you wire diodes in parallel?


Old 03-07-2010, 11:40 PM
  #1
Level 3 Supporter
Thread Starter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
How do you wire diodes in parallel?
im planing on putting 4-5 1A diodes in paralle, how do i do it?

anyone has a diagram?
Father Yuli is offline
Reply
Old 03-08-2010, 01:18 AM
  #2
Level 3 Supporter
iTrader: (1)

stephenfleming's Avatar

Join Date: May 2000
Posts: 716
Why do you need to put so many diodes in parallel?
But if you really need to, just make sure you have them all the oriented the same way.
Then just connect the all the same ends together.
stephenfleming is offline
Reply
Old 03-08-2010, 05:09 AM
  #3
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Diodes are usually wired in a series. Why do you need to wire them in parallel?

Anyhow, they either have a ring around the edge of the diode that indicates the cathode (-) or the leg that is shortest (on LED types) is the ground.

To wire them in parallel, do like stephen said, just solder the ends together in the proper polarity. What are you trying to do?

HTH

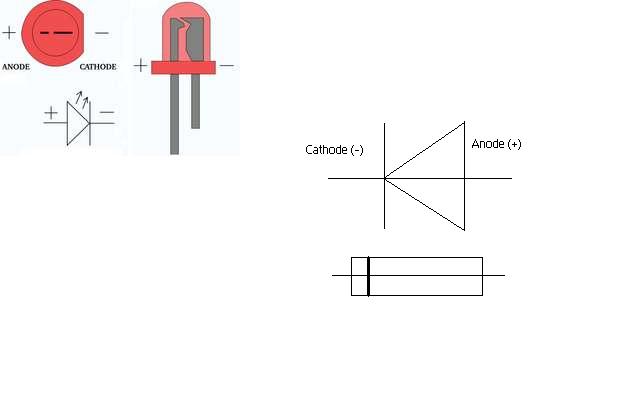

Attached Thumbnails How do you wire diodes in parallel?-diodes.jpg
Last edited by DeadlySones; 03-08-2010 at 05:41 AM.
DeadlySones is offline
Reply
Old 03-14-2010, 09:26 PM
  #4
2000 Watt CAFz'r
iTrader: (11)

BigRedGuy's Avatar

Join Date: Nov 2000
Posts: 2,383
Talking
Originally Posted by N130Gv2
Diodes are usually wired in a series. Why do you need to wire them in parallel?

Anyhow, they either have a ring around the edge of the diode that indicates the cathode (-) or the leg that is shortest (on LED types) is the ground.

To wire them in parallel, do like stephen said, just solder the ends together in the proper polarity. What are you trying to do?

HTH
He's building a 65" LED TV to go with the new TFOne Home Theater sub.....
BigRedGuy is offline
Reply
Old 03-15-2010, 11:03 PM
  #5
Level 3 Supporter
Thread Starter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
anyone here electrician?
Father Yuli is offline
Reply
Old 03-16-2010, 07:56 AM
  #6
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Originally Posted by Father Yuli
anyone here electrician?
....................
Last edited by DeadlySones; 03-16-2010 at 08:00 AM.
DeadlySones is offline
Reply
Old 03-16-2010, 04:53 PM
  #7
4000 Watt CAFz'r
iTrader: (5)

zzzzzzz's Avatar

Join Date: Jan 2005
Posts: 4,643
i will look and cut a link for you soon but now i need to get my son would say 8pm or so
zzzzzzz is offline
Reply
Old 03-16-2010, 05:45 PM
  #8
4000 Watt CAFz'r
iTrader: (5)

zzzzzzz's Avatar

Join Date: Jan 2005
Posts: 4,643
LED series parallel array wizard
zzzzzzz is offline
Reply
Old 03-16-2010, 05:50 PM
  #9
Level 3 Supporter
iTrader: (1)

stephenfleming's Avatar

Join Date: May 2000
Posts: 716
Why not make it easy on yourself, and get a 5amp diode?
They do exist, a good shop should have a few kicking around.
Hell I might even have some.
stephenfleming is offline
Reply
Old 03-16-2010, 05:52 PM
  #10
1000 Watt CAFz'r
iTrader: (-1)

Menace's Avatar

Join Date: Jan 2007
Posts: 1,153
Originally Posted by Father Yuli
anyone here electrician?
Call peter.. he will tell u for sure. He is electrician/ bass head maybe god lol
Menace is offline
Reply
