Anyone see problems with this?

Thread Tools

Search this Thread

Old 02-05-2011, 11:28 PM
  #1
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Scotch03's Avatar

Join Date: Dec 2010
Posts: 215
Anyone see problems with this?

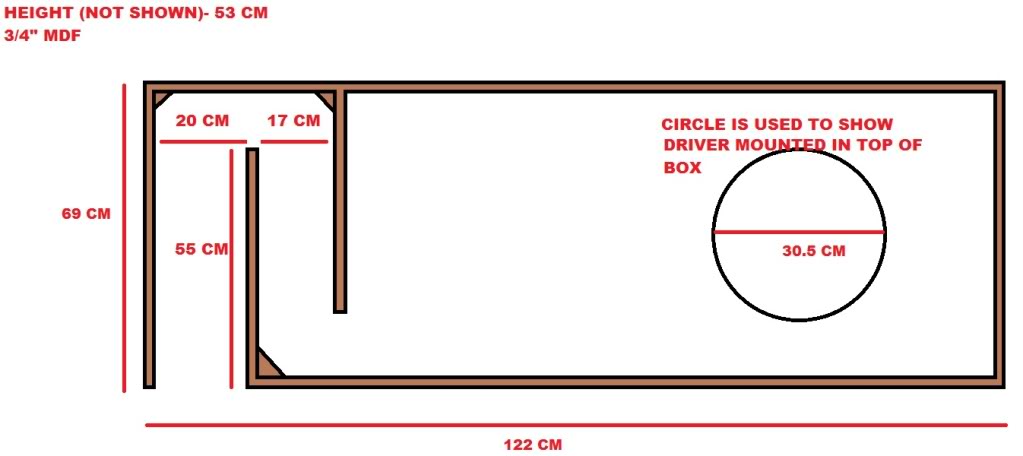

Name: SUBBOXDESIGN.jpg Views: 31 Size: 38.2 KB
Scotch03 is offline
Reply
Old 02-05-2011, 11:33 PM
  #2
Level 3 Supporter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
wow cm's

you must be eastern european
Father Yuli is offline
Reply
Old 02-06-2011, 01:07 AM
  #3
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Scotch03's Avatar

Join Date: Dec 2010
Posts: 215
Im CANADIAN Come'on Yuli!
Scotch03 is offline
Reply
Old 02-06-2011, 06:32 AM
  #4
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
The port looks all f'd up... 17cm, to less than 14cm (around the bend) to 20cm... I think its time to go back to the drawing board...
DeadlySones is offline
Reply
Old 02-06-2011, 09:30 AM
  #5
50 Watt CAFz'r

leagumdrops's Avatar

Join Date: Jan 2011
Posts: 120
no it a transmission line i believe it is suppose to get wider with each bend but im not sure how to build this box and most of these have more channels
leagumdrops is offline
Reply
Old 02-06-2011, 09:50 AM
  #6
2000 Watt CAFz'r
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
I know how transmission lines work... this definitely isn't one.... his inner port board is too long.. you can't start with 17cm, turn in an area of less than 14cm then open up to 20cm... port will be choked.
Last edited by DeadlySones; 02-06-2011 at 12:46 PM.
DeadlySones is offline
Reply
Old 02-06-2011, 11:22 AM
  #7
2000 Watt CAFz'r
iTrader: (6)

jalat's Avatar

Join Date: Mar 2008
Posts: 2,736
Originally Posted by DeadlySones
I know how transmission lines work... this definitely isn't one.... his inner port board is too long.. you can't start with 17cm, turn in an area of 14cm then open up to 20cm... port will be choked.
correct.



for your own sake, get some who knows something about enclosure to design one for you.
jalat is offline
Reply
Old 02-06-2011, 02:31 PM
  #8
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Scotch03's Avatar

Join Date: Dec 2010
Posts: 215
Haha alright guys, I've never made a ported box, I make sealed haha
Scotch03 is offline
Reply
Old 02-06-2011, 02:40 PM
  #9
2000 Watt CAFz'r
iTrader: (6)

jalat's Avatar

Join Date: Mar 2008
Posts: 2,736
give me max dimensions, and subwoofer used and i'll design something for you
jalat is offline
Reply
Old 02-06-2011, 04:55 PM
  #10
50 Watt CAFz'r
Thread Starter
iTrader: (1)

Scotch03's Avatar

Join Date: Dec 2010
Posts: 215
The outer dimensions are my max dimensions. And its for the RE 12 XXX that I sold to my friend.
Scotch03 is offline
