dont let people design it for you

1. half the time they only THINK they can "design"

2. you wont learn anything that way

first box isnt gonna be perfect. just build it and see how it turns out, from there you can go on to the next one with adjustments you want.



Well I'm good at making boxes, but I've only made fiberglass sealed boxes for smaller subs. Making a ported box that has enough structure to support a 70 pound subwoofer is a little different. lol.



typical yuli statement



Yuli knows his though. Gotta admit.

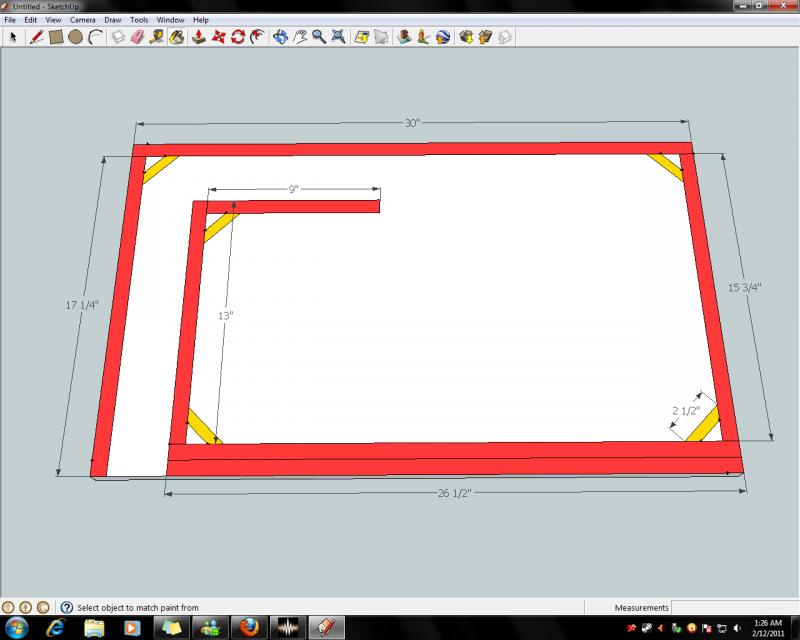

2.3 cubic feet
Tuned @ 34hz
34 sq in of port

Top & Bottom = 30 x 18
Back = 30 x 12.5
Front baffles = 26.5 x 12.5
L Side = 17.25 x 12.5
R Side = 15.25 x 12.5
Port 1 = 13 x 12.5
Port 2 = 9 x 12.5

45 degree angles should be 2.5" in width and then 45'd



i fixed that for you.

we're talking music here.



Thanks jalat!!



buddy

you dont know what loud music is.



Loud music hurts... ....BAAAD... and I'm not even thaaat loud.



Yuli are you looking at your craps LOL
That box on the 1st page is NFG but I too would make if I
Thought I was on to a good box (it is just wood ) when you play it you will see if it is a good box

The port is f-ed up and if it is a line then you need to look it up to see what it looks like
