Box Build 10" Alpine Type r

Thread Tools

Search this Thread

Old 04-10-2010, 10:40 AM
  #1
0 Watt CAFz'r
Thread Starter

UNRATED's Avatar

Join Date: Feb 2009
Posts: 45
Box Build 10" Alpine Type r

1.6 cubes @ 35 hz

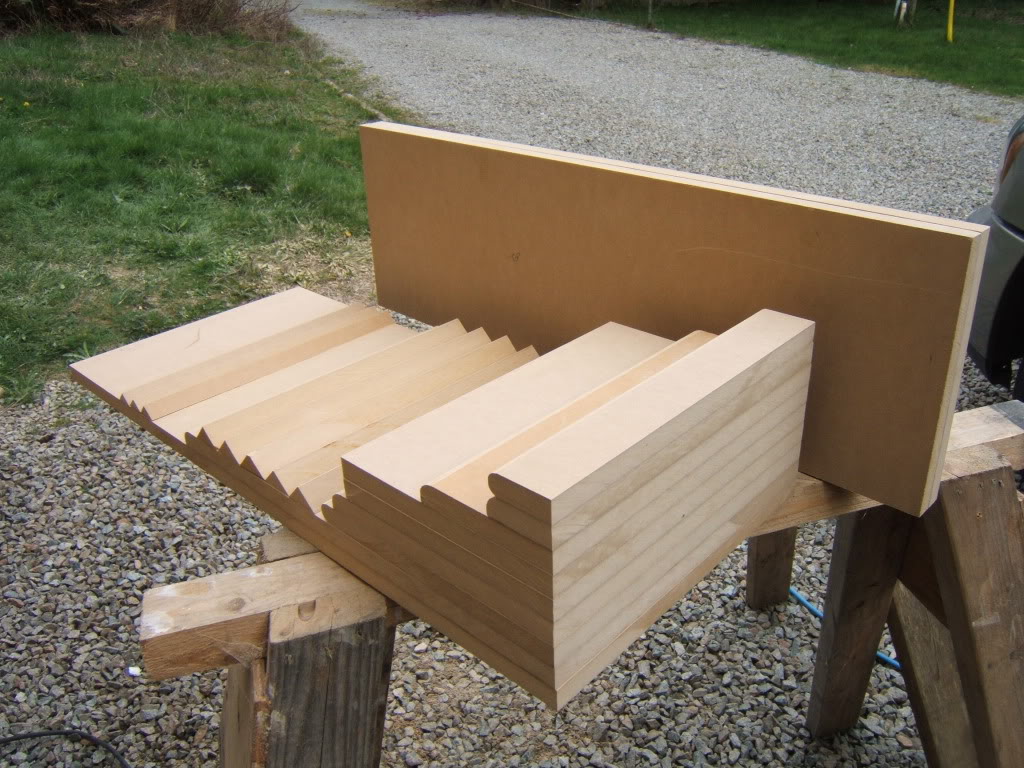

Name:  DSCF8254.jpg
Views: 87
Size:  171.0 KB

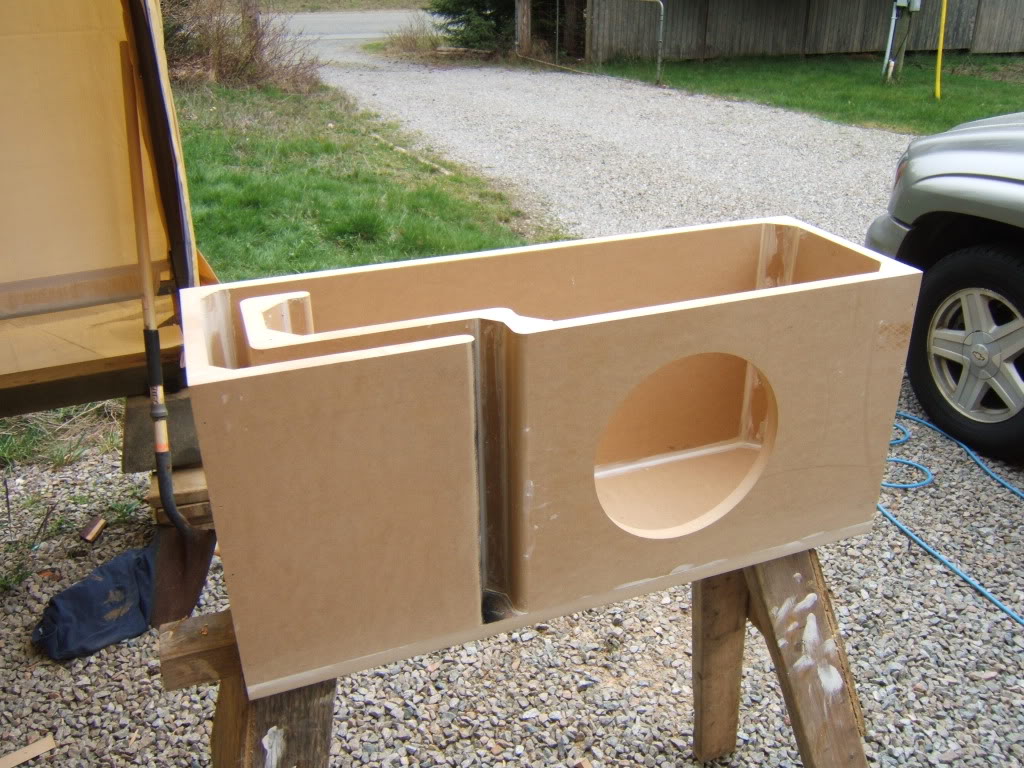

Name:  DSCF8261.jpg
Views: 49
Size:  175.3 KB

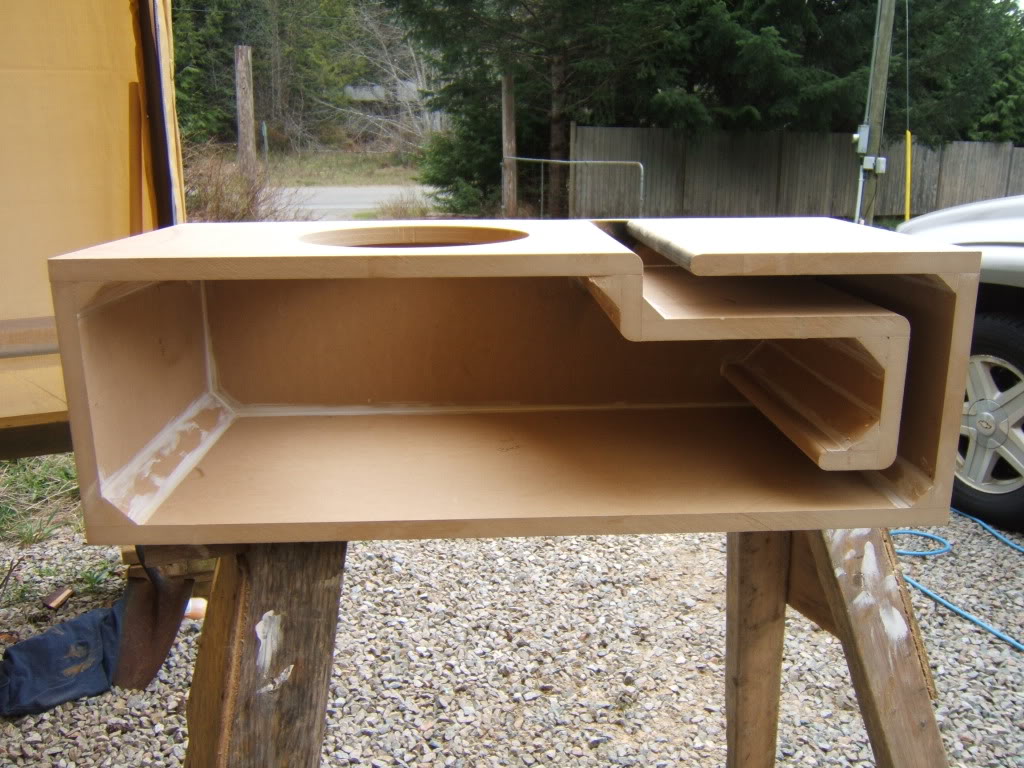

Name:  DSCF8262.jpg
Views: 85
Size:  156.8 KB

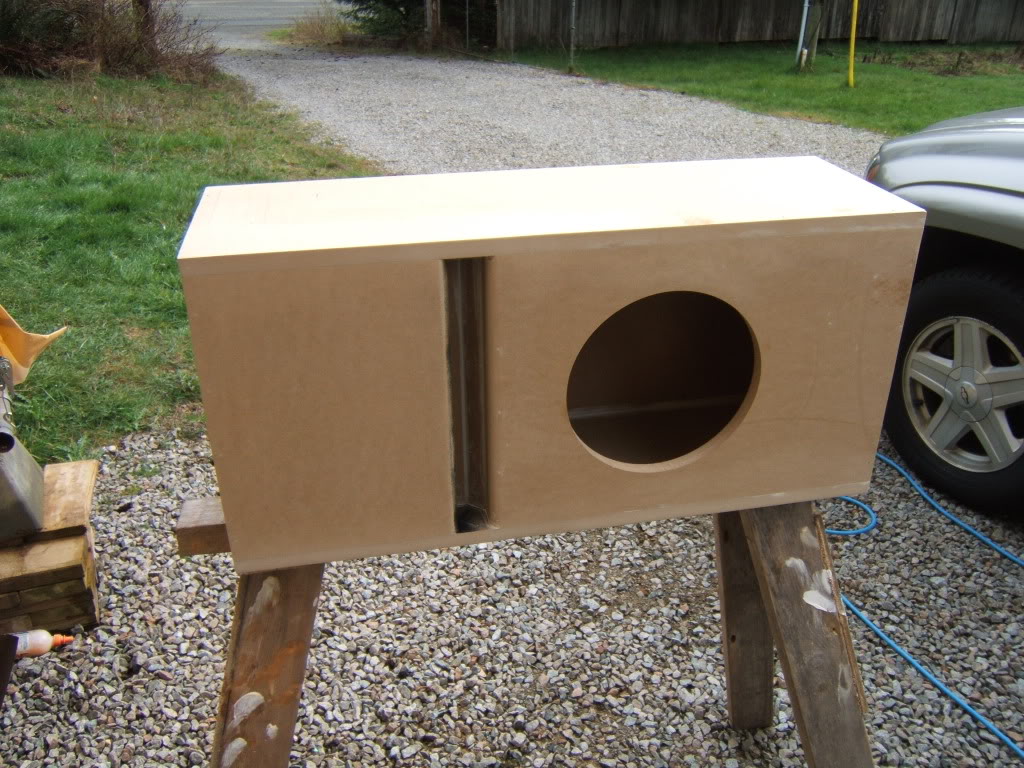

Name:  DSCF8266.jpg
Views: 98
Size:  184.2 KB

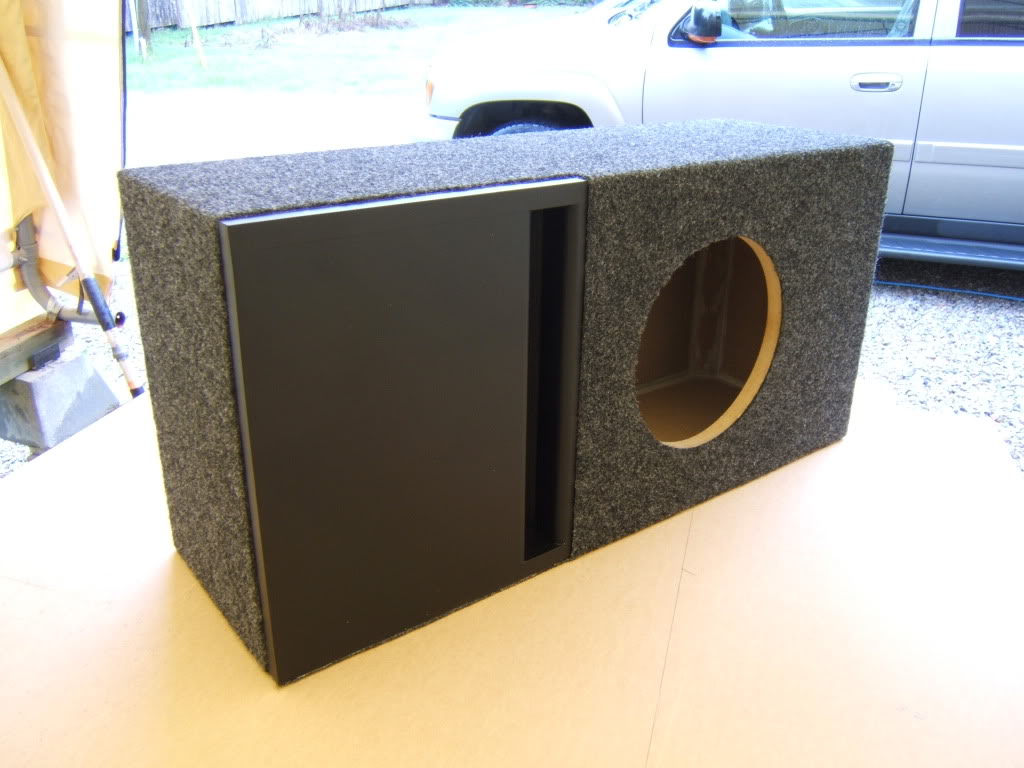

Name:  DSCF8268.jpg
Views: 178
Size:  102.1 KB

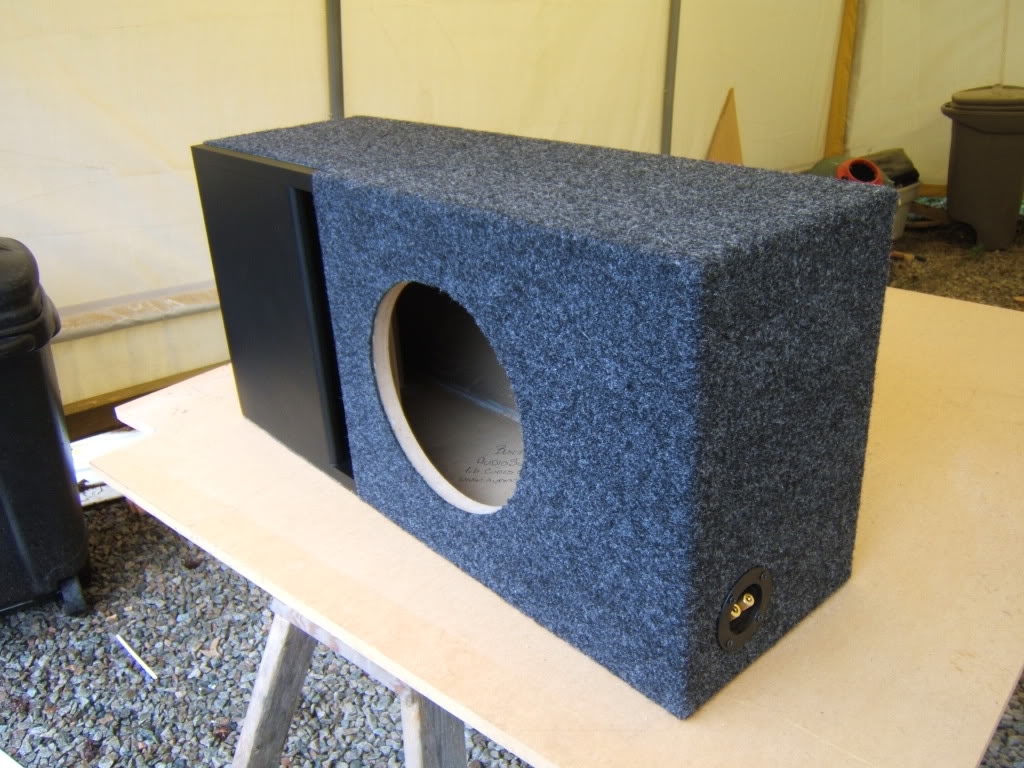

Name:  DSCF8274.jpg
Views: 45
Size:  145.9 KB
UNRATED is offline
Old 04-10-2010, 10:47 AM
  #2
500 Watt CAFz'r
iTrader: (1)

Denonite's Avatar

Join Date: Dec 2008
Posts: 968
nice build. I would have double baffled the speaker mount for a flush mounting myself, but nice work otherwise.
Denonite is offline
Old 04-10-2010, 10:48 AM
  #3
0 Watt CAFz'r
Thread Starter

UNRATED's Avatar

Join Date: Feb 2009
Posts: 45
Originally Posted by Denonite
nice build. I would have double baffled the speaker mount for a flush mounting myself, but nice work otherwise.
i would have but had limited space to work with
UNRATED is offline
Old 04-10-2010, 11:02 AM
  #4
500 Watt CAFz'r
iTrader: (1)

Denonite's Avatar

Join Date: Dec 2008
Posts: 968
I thought you might be limited given the depth of the box. Great skills though, very neat and sturdy looking build.
Denonite is offline
Old 04-10-2010, 04:26 PM
  #5
500 Watt CAFz'r

Njord's Avatar

Join Date: Oct 2007
Posts: 519
Here are the 'installed' pictures (its just sitting there at the moment) A really tight fit between the box and the middle seat belt (Bad measuring on my part) I think it worked out for the better though. it stopped the rear deck from rattling.

Sounds amazing. it was exactly what I was looking for. A little louder (its wayyy louder VS the sealed box it was in) and deeper. No port noise so far, so there is probably none. I'm very happy with how this turned out. Money well spent for sure.

Sorry about the picture quality.

Njord is offline
Old 04-10-2010, 04:30 PM
  #6
0 Watt CAFz'r

tdisport's Avatar

Join Date: Mar 2009
Posts: 22
Wow good job on the box. Looks very solid and clean.
tdisport is offline
Old 04-10-2010, 04:45 PM
  #7
0 Watt CAFz'r
Thread Starter

UNRATED's Avatar

Join Date: Feb 2009
Posts: 45
Looks great in there Njord... :-)
UNRATED is offline
Old 04-10-2010, 08:08 PM
  #8
1000 Watt CAFz'r
iTrader: (1)

Lord Huggington's Avatar

Join Date: Apr 2006
Posts: 1,462
Looks sweet & weird as hell, why didn't you do an L-shaped port? With 3 corners vs. 1, you're losing air flow.
Lord Huggington is offline
Old 04-10-2010, 08:19 PM
  #9
0 Watt CAFz'r
Thread Starter

UNRATED's Avatar

Join Date: Feb 2009
Posts: 45
Originally Posted by rbgnwa45
Looks sweet & weird as hell, why didn't you do an L-shaped port? With 3 corners vs. 1, you're losing air flow.
with the L shape port 3/4 of the port would have been blocked so we centered the port for better airflow into the cabin of the vehicle
UNRATED is offline
Old 04-10-2010, 08:54 PM
  #10
500 Watt CAFz'r

Njord's Avatar

Join Date: Oct 2007
Posts: 519
Originally Posted by rbgnwa45
Looks sweet & weird as hell, why didn't you do an L-shaped port? With 3 corners vs. 1, you're losing air flow.
What I wanted was to have this box firing into the cabin. Firing into the trunk isn't an option for me, so its obvious from the install pictures that a regular L port would not work.
Njord is offline
