can someone check my math?

Thread Tools

Search this Thread

Old Jan 27, 2009 | 04:58 PM
  #1
t-spat's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Jul 2006
Posts: 26
can someone check my math?

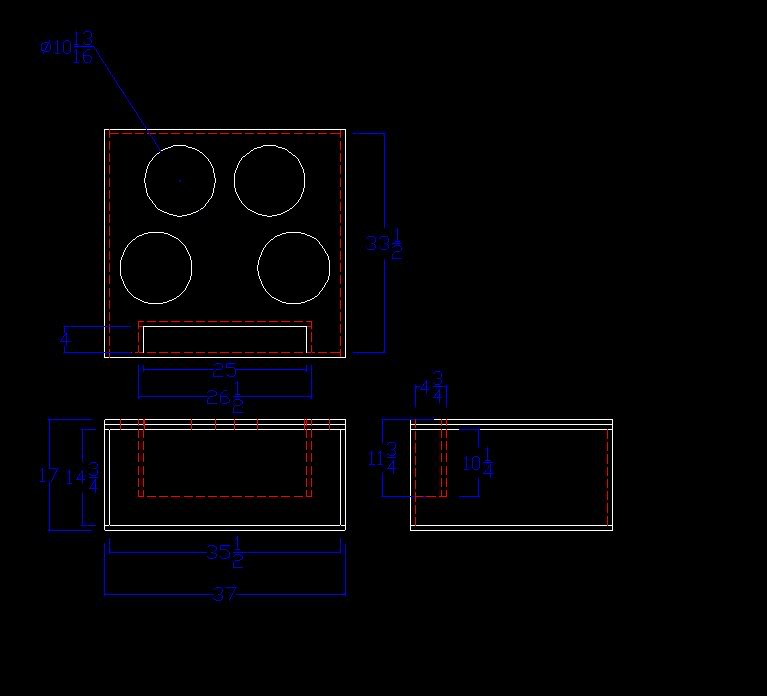

im putting 4 12" RF T112D2 in my 2002 4dr blazer and this the box that i have come up with and i was juss wondering if someone can double check my math for me on this one Name:  newsubbox1.jpg
Views: 88
Size:  24.8 KB

interior dimensions are 35.5 x 33.5 x 14.75 . . . 10.15 ft^3
port size 25 x 4 x 11.75 tuned to 36hz
port displacement 26.5 x 4.75 x 10.25 . . . 0.75ft^3
4 sub displacement .32 ft^3

10.15 - .75 - .32 = 9.08ft ^3

is this math correct?

also i am firing the port upwards cuz the box takes up the entire cargo area so i cant fire it backwards
Attached Images
File Type: jpg
Old Jan 27, 2009 | 06:17 PM
  #2
oakley1984's Avatar
50 Watt CAFz'r

Joined: May 2007
Posts: 77
the maths spot on
Old Jan 27, 2009 | 07:24 PM
  #3
t-spat's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Jul 2006
Posts: 26
thx you, also should this box pound pretty good, and would it get low notes or is the tuning at 36 alil high?
Old Feb 18, 2009 | 01:17 AM
  #4
greatone007's Avatar
0 Watt CAFz'r

Joined: Nov 2008
Posts: 8
That should POUND! What kind of amp(s) you going to be running this with?
Old Feb 18, 2009 | 03:59 PM
  #5
danyman's Avatar
1000 Watt CAFz'r
iTrader: (1)

Joined: Aug 2007
Posts: 1,978
make sure you have internal bracing or that box will flex hahahaha
Old Feb 18, 2009 | 04:23 PM
  #6
t-spat's Avatar
Thread Starter
0 Watt CAFz'r

Joined: Jul 2006
Posts: 26
im goin to be using a RF T20001bd and yes the box has internal bracing
Old Feb 18, 2009 | 04:43 PM
  #7
Denonite's Avatar
500 Watt CAFz'r
iTrader: (1)

Joined: Dec 2008
Posts: 968
to be ...don't forget to account for the bracing as well...though I doubt you'd be able to hear the difference due to the volume difference. If that doesn't pound...something is definitely not working properly, or hooked up wrong...that has to pound by any definition of pounding!!!
