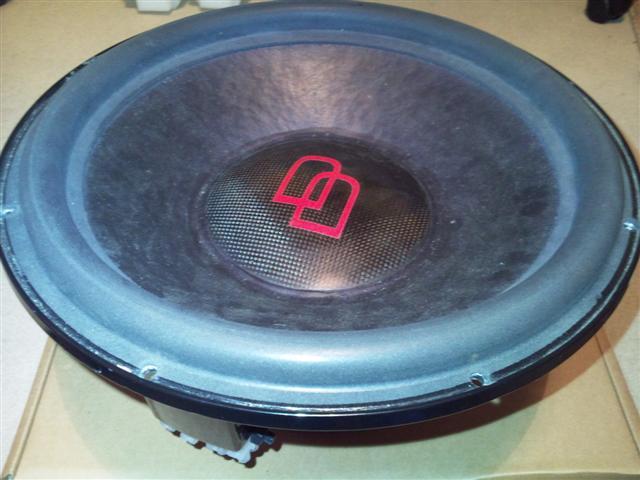

DD3515 with carbon fibre dust cap dual 2ohm
#1
DD3515 with carbon fibre dust cap dual 2ohm
i have purchase a DD3515 with carbon fibre dust cap dual 2ohm from a friend,can some one please let me know the full speaker parameters as i cant seem to find for dual 2 ohm version.also can any one tell me its rms have seen roughly 1200 rms does carbon fibre dust cap increase rms if so how much?.need to no how much is speaker dispacement for one of these drivers,also i have about 40.5 inches width 14 inches deph 16 inches height external 1inch all round 2 inch baffle roughly 4.45cft with out speaker displacement. not sure on what the best tuning for dd3515.i want to be as loud as db possible and low damm low i want to be playing music 140 db plus do you guys think thats possible? all help thanked in advance.can any one tell what motor is fitted,also i was told the carbon fibre dustcap doubles the power is that true?
#2
forget the bit about the dust cap,some one was have a laugh.

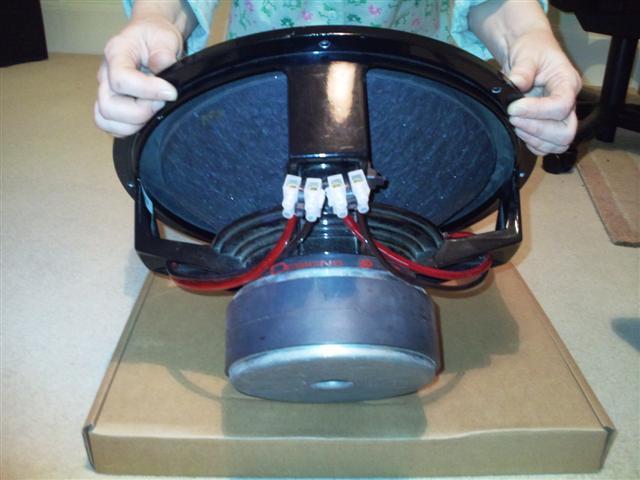

found 3 stickers hope this helps.
11-2004 i know this one build date
DD35K 2/2 not sure about this i no its dual 2ohm dont know what k means
11445 dont know what it means
found 3 stickers hope this helps.
11-2004 i know this one build date
DD35K 2/2 not sure about this i no its dual 2ohm dont know what k means
11445 dont know what it means
#4
question 1. can some one please let me know the full speaker parameters as i cant seem to find for dual 2 ohm version.question 2 also can any one tell me its rms have seen roughly 1200 rms.
question 3. height =18 depth =14.5 width =40.5 .what would be the best tuning for this size cab, front baffle 2 inches the rest 1 inch.
i want to be as loud as db possible and low damm low i want to be playing music 140 db plus do you think thats possible.question 4 is this standard speaker weight 11kg or has this unit had upgrades pics above to look at.thank you for any help so far.
question 3. height =18 depth =14.5 width =40.5 .what would be the best tuning for this size cab, front baffle 2 inches the rest 1 inch.
i want to be as loud as db possible and low damm low i want to be playing music 140 db plus do you think thats possible.question 4 is this standard speaker weight 11kg or has this unit had upgrades pics above to look at.thank you for any help so far.
#5
SPECIFICATIONS
Series 3500e
Voice Coil Diameter 3"
Magnet Weight 200 oz
Power Handling RMS/Peak 1200/4800
Suspension Travel 80 mm
Nominal Impedance D .5 - 4.0 Ohm
DC Resistance D .5 - 3.6 Ohm
Model 3510e 3512e 3515e 3518e
Rec Box (cubic ft) 1.5 2.5 4 6
Port Area (sq in) 24 40 64 100
Port Length (inches) 23 22 21 20
Woofer Diameter 10" 12" 15" 18"
Free Air Resonance
33 Hz 32 Hz 30 Hz 27 Hz
Qts 0.35 0.36 0.38
Qes 0.38 0.39 0.41
Qms 4.33 4.81 5.05
Vas 18L 40L 112L
Sensitivity 86.5 dB 89 dB 92 dB 93 dB
Shipping Weight 33 lbs 35 lbs 37 lbs 42 lbs
Series 3500e
Voice Coil Diameter 3"
Magnet Weight 200 oz
Power Handling RMS/Peak 1200/4800
Suspension Travel 80 mm
Nominal Impedance D .5 - 4.0 Ohm
DC Resistance D .5 - 3.6 Ohm
Model 3510e 3512e 3515e 3518e
Rec Box (cubic ft) 1.5 2.5 4 6
Port Area (sq in) 24 40 64 100
Port Length (inches) 23 22 21 20
Woofer Diameter 10" 12" 15" 18"
Free Air Resonance
33 Hz 32 Hz 30 Hz 27 Hz
Qts 0.35 0.36 0.38
Qes 0.38 0.39 0.41
Qms 4.33 4.81 5.05
Vas 18L 40L 112L
Sensitivity 86.5 dB 89 dB 92 dB 93 dB
Shipping Weight 33 lbs 35 lbs 37 lbs 42 lbs
