Double 15" TF One box build
O.K. So a friend from school had a sheet of 1" MDF "just sitting around", so he gave it to me. Thanks Chuck!

So time to start building. Box will be 7cuft after displacements. 3.5cuft per side tuned to 38hz.

Pics coming soon. lol
DeadlySones is offline
Reply
Old 12-02-2009, 09:31 AM
  #2
2000 Watt CAFz'r
Thread Starter
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751

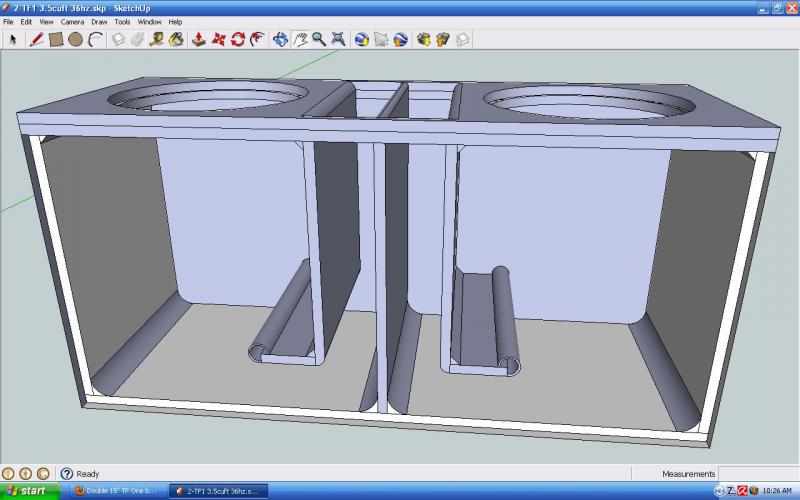

This is the design.

Double 15" TF One box build-double-15-tf1.jpg

Some pics of the progress.

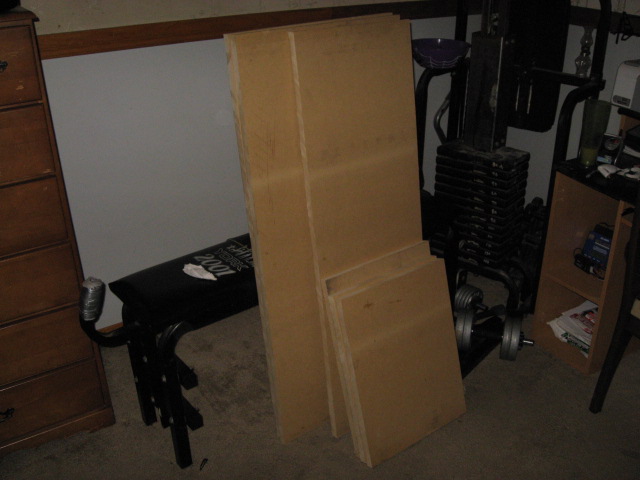

Double 15" TF One box build-img_1425.jpg

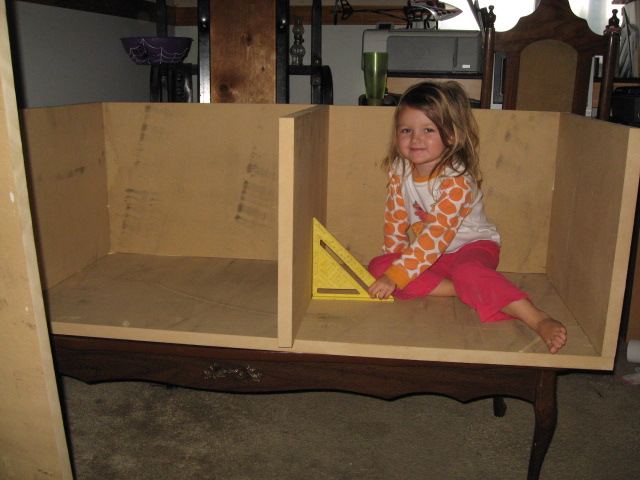

Double 15" TF One box build-img_1426.jpg

This box is HUGE & going to be REALLY heavy!!
Last edited by DeadlySones; 12-02-2009 at 09:46 AM.
DeadlySones is offline
Reply
Old 12-02-2009, 09:50 AM
  #3
2000 Watt CAFz'r
iTrader: (20)

Killer_klown187's Avatar

Join Date: Dec 2005
Posts: 2,810
Nice progress Paul...
Get it finished!! lol
Killer_klown187 is offline
Reply
Old 12-02-2009, 09:56 AM
  #4
2000 Watt CAFz'r
Thread Starter
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Thanks, only problem is I need more wood.

Need 1/2 sheet of 3/4" for the top double baffle, and 1/4 sheet of 1" to finish the removable ports.

Don't worry bro, I'll git-ur-doooone. lol Then I'll need to figure out where the amps are going. I sort of used their room for enclosure space... anywhere I can't mount them for Street C?
Last edited by DeadlySones; 12-02-2009 at 09:59 AM.
DeadlySones is offline
Reply
Old 12-02-2009, 10:56 AM
  #5
Level 3 Supporter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
attach the amps to the back of the box.

and u need another kid for the chamber on the left.
Father Yuli is offline
Reply
Old 12-02-2009, 10:58 AM
  #6
500 Watt CAFz'r

d4rin's Avatar

Join Date: May 2007
Posts: 849
Yeah I can just imagine how heavy it will be once it's done
d4rin is offline
Reply
Old 12-02-2009, 11:01 AM
  #7
2000 Watt CAFz'r
iTrader: (2)

fresh1's Avatar

Join Date: Feb 2008
Posts: 2,063
I wonder if anyone ever told those crazy Mexicans that they could smuggle the small people into the US by putting them in a speaker box...
fresh1 is offline
Reply
Old 12-02-2009, 11:02 AM
  #8
2000 Watt CAFz'r
Thread Starter
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
Originally Posted by Father Yuli
attach the amps to the back of the box.

and u need another kid for the chamber on the left.
lol, the other two are at school, and she just woke up and wanted to help.

I thought it's not good to mount amps to sub enclosures. I've never done it. lol Might not have any choice.
DeadlySones is offline
Reply
Old 12-02-2009, 11:24 AM
  #9
Level 3 Supporter
iTrader: (17)

Father Yuli's Avatar

Join Date: Oct 2000
Posts: 11,606
oh u can do it without any problems. all you need is something to absorb the vibrations. like small peices of rubber between the wood and mounting holes on the amp.
Father Yuli is offline
Reply
Old 12-02-2009, 11:27 AM
  #10
2000 Watt CAFz'r
Thread Starter
iTrader: (4)

DeadlySones's Avatar

Join Date: Mar 2009
Posts: 3,751
K, cool. I think I can manage that. I used all the wood I've got. Now I have to wait for the wifee to get home from work. Hope she's got some money... lol, it's suppose to rain soon.
