First enclosure builds
03-10-2009, 01:30 PM
#1
First enclosure builds

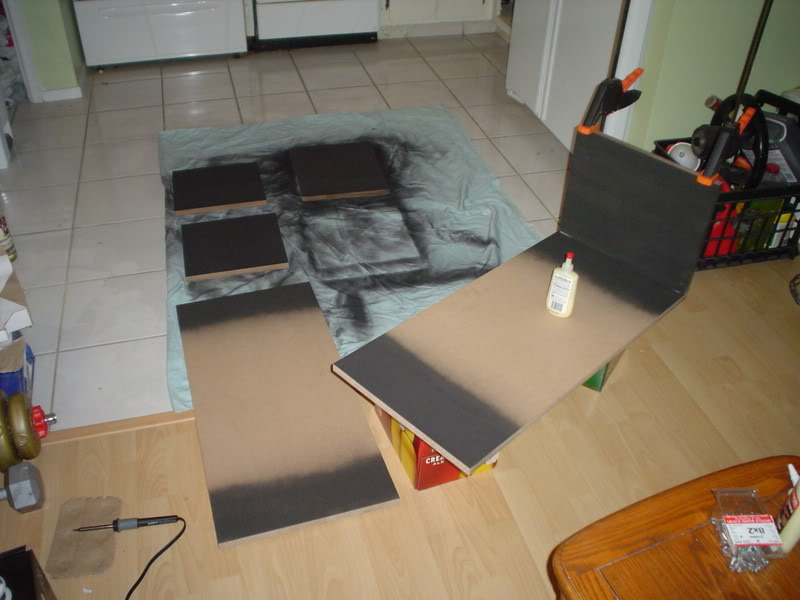

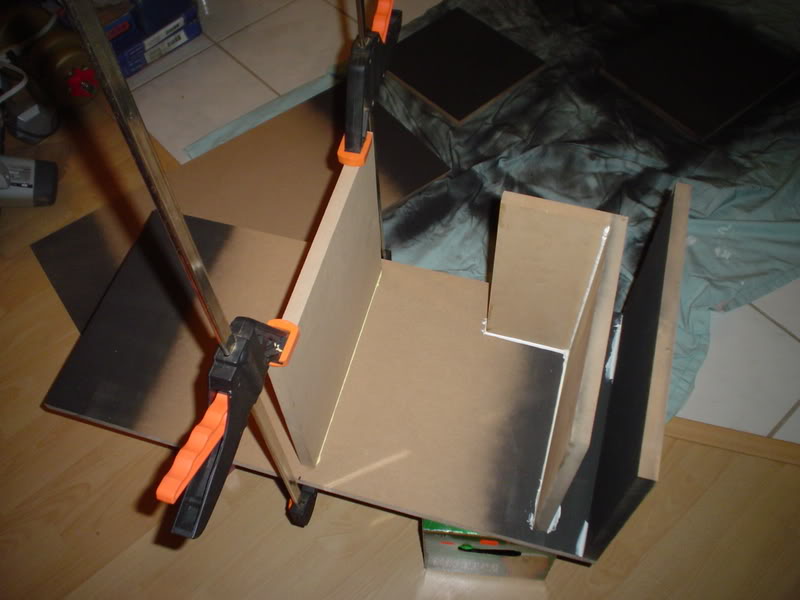

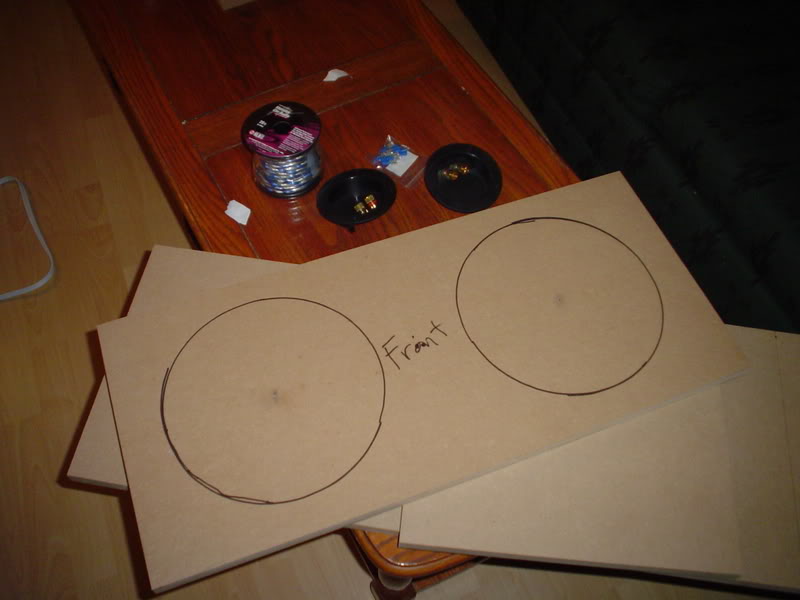

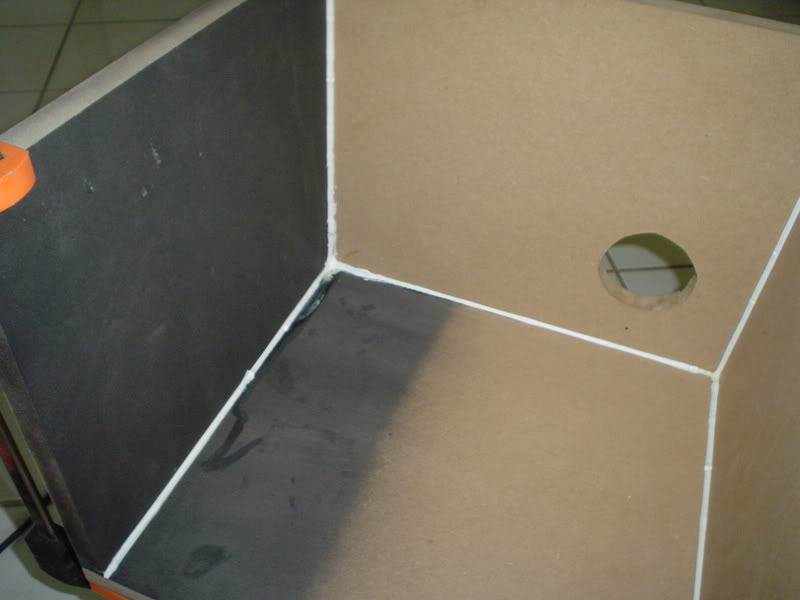

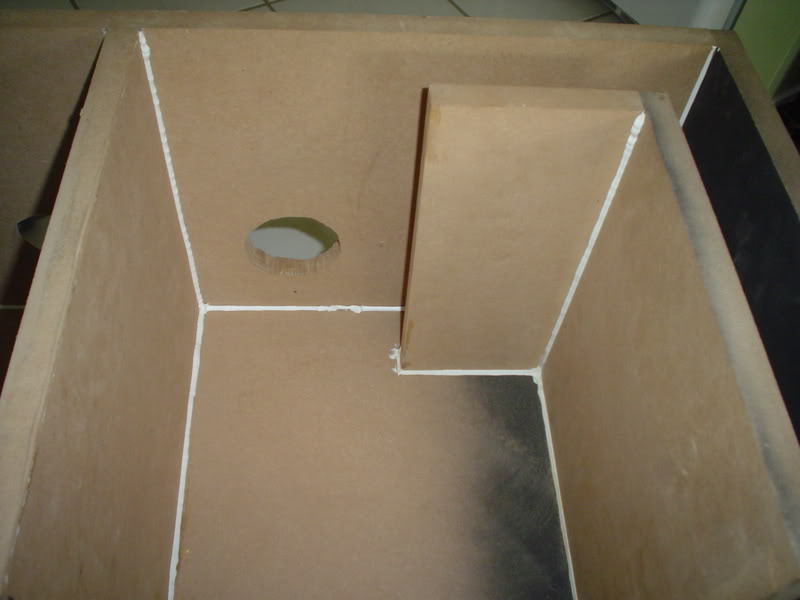

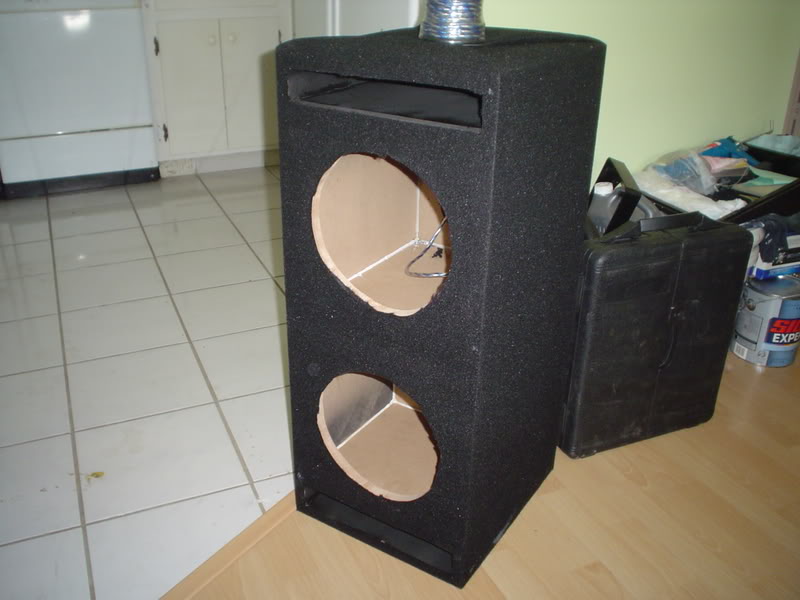

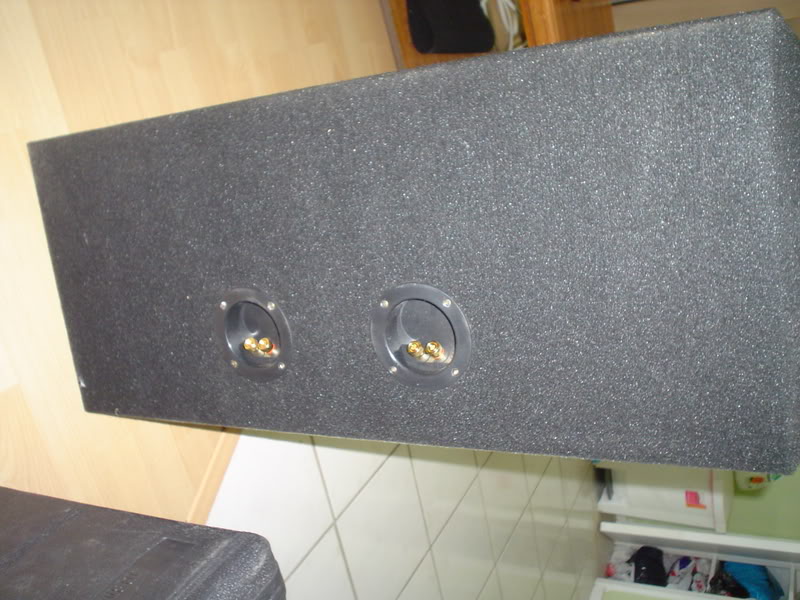

Hey Guys, i built my first box last month, and now im building another for a friend. I just need to know if there are things im doing wrong or things i could do better since i'll most likely be making more enclosures. Here are some pics. I dont have as many of the actual build of the first, but my second i do.

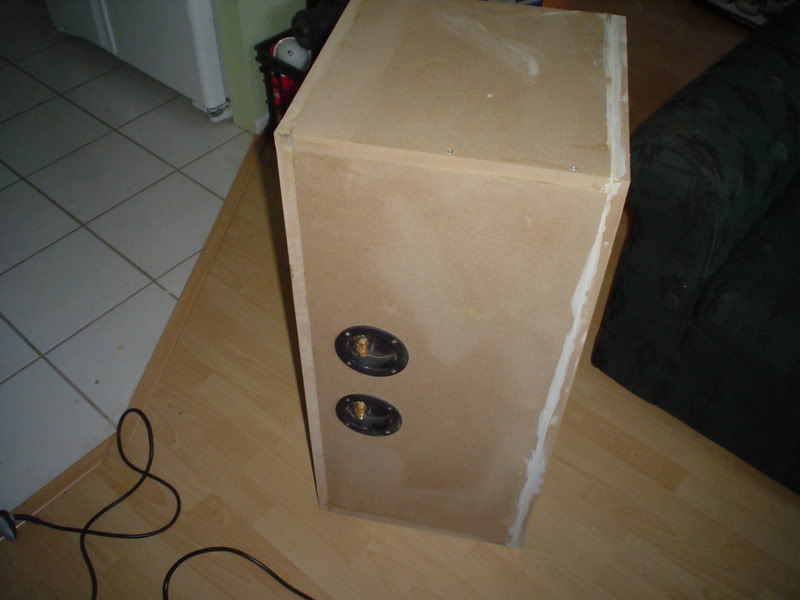

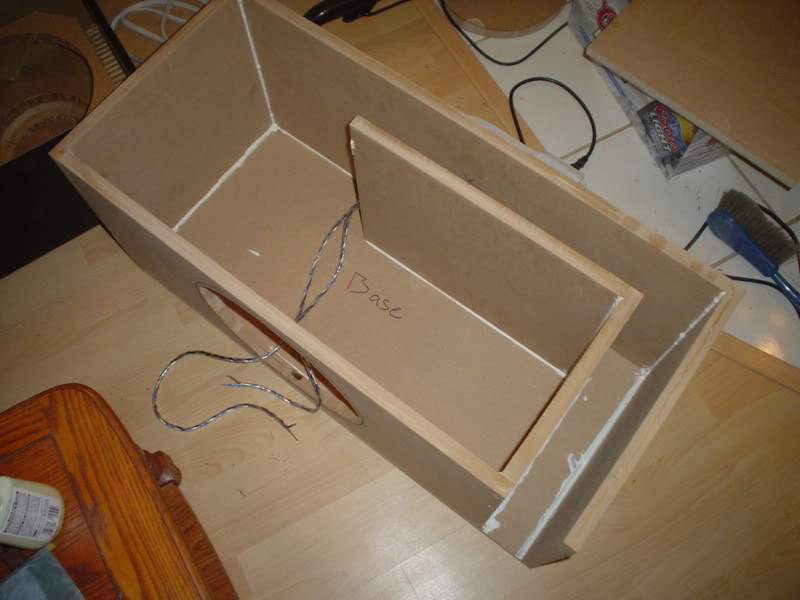

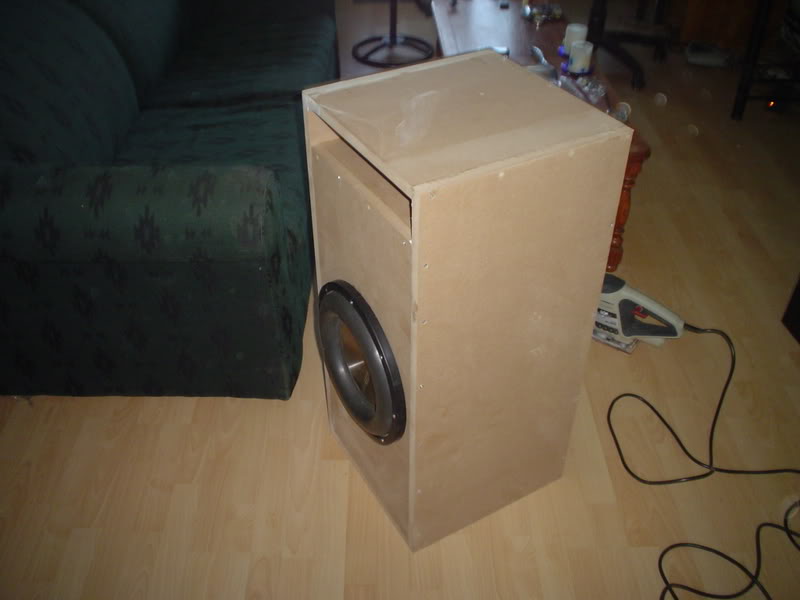

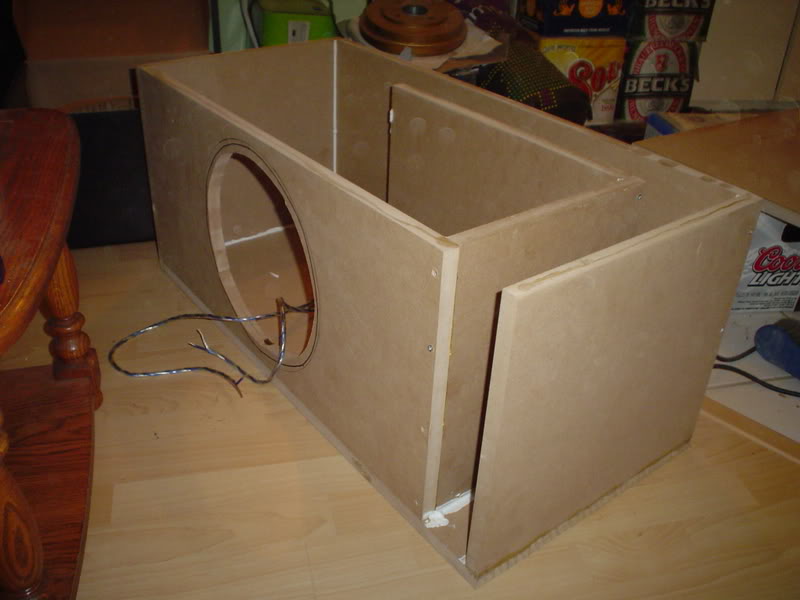

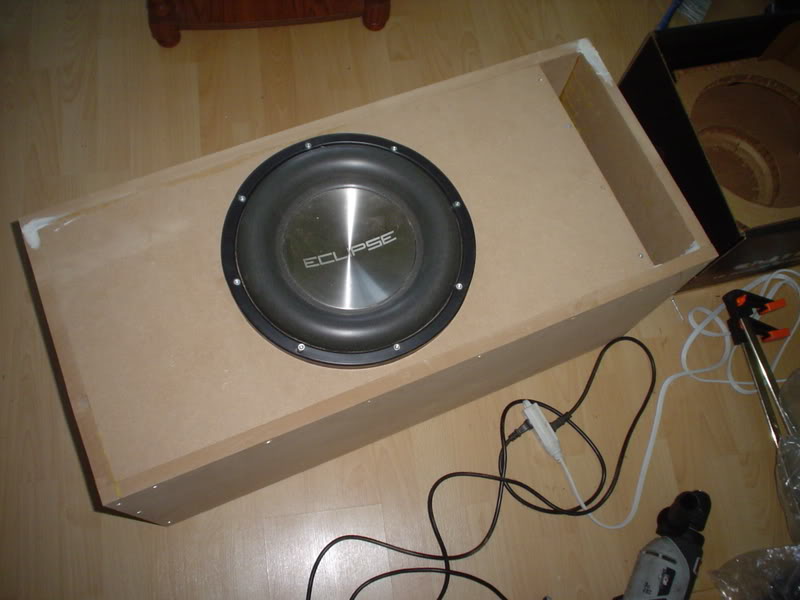

First one was for an Eclipse 12" Titanium, 3 cu. ft. @ 30hz
First one was for an Eclipse 12" Titanium, 3 cu. ft. @ 30hz
03-10-2009, 03:10 PM
#7
2000 Watt CAFz'r
Join Date: Jan 2001
Posts: 2,026

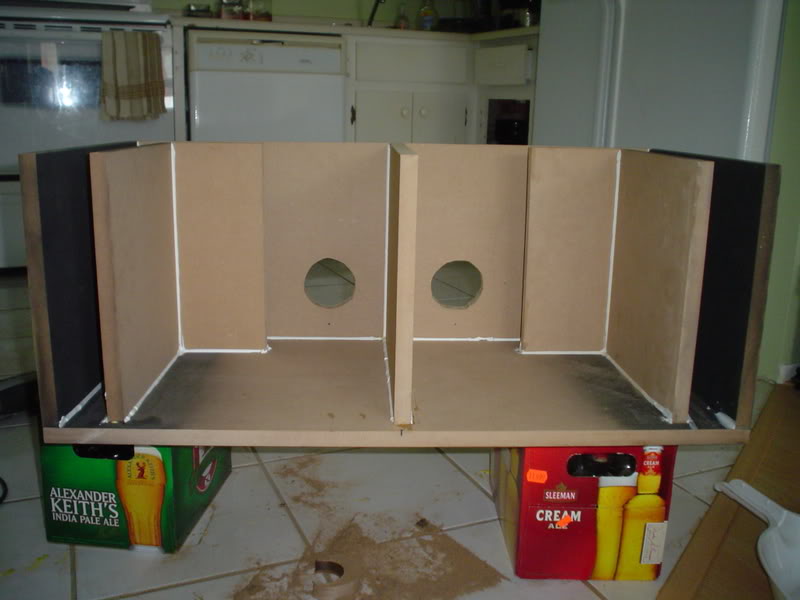

The boxes look great . . . but your beer should be in the fridge, not under the box

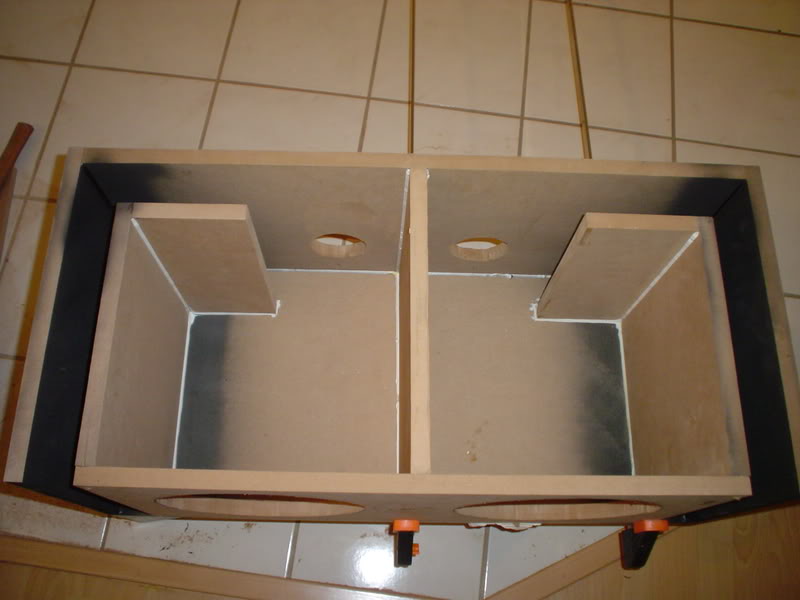

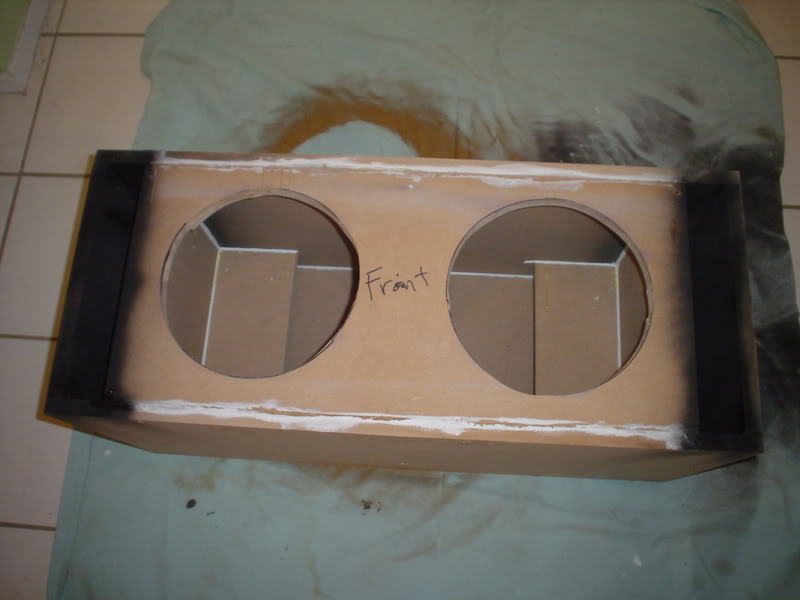

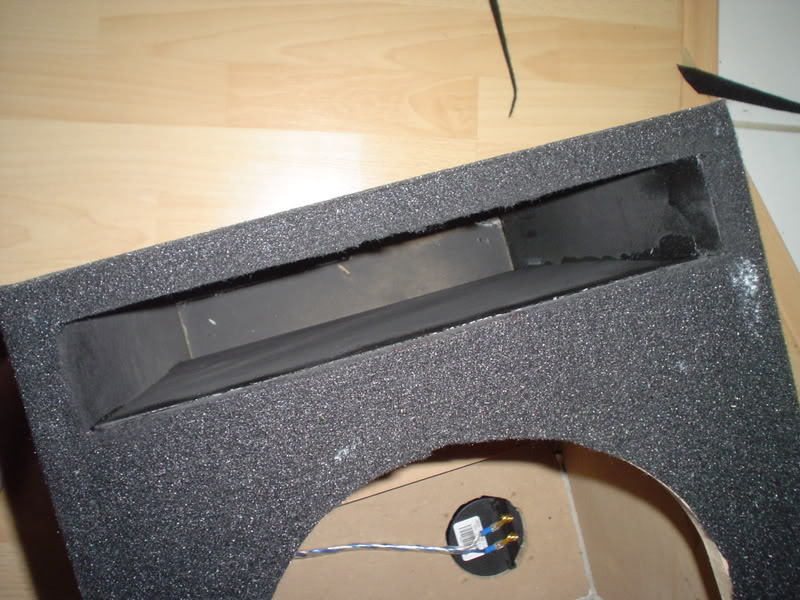

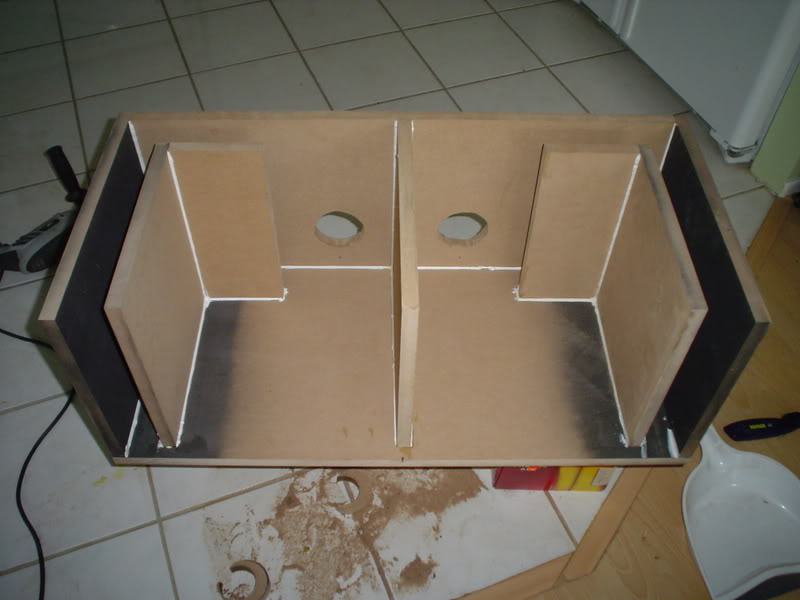

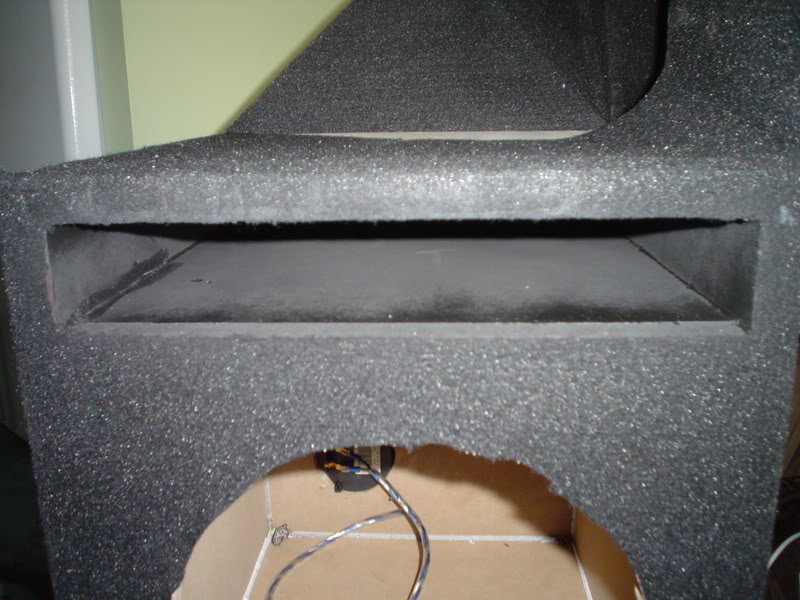

The box for the MTXs looks a little bit small for 2.8 cubes (1.4 cubes per chamber). Did you factor in port displacement and add that to the over all volume?
The box for the MTXs looks a little bit small for 2.8 cubes (1.4 cubes per chamber). Did you factor in port displacement and add that to the over all volume?
Last edited by maltesechicken; 03-10-2009 at 03:13 PM.
03-10-2009, 03:39 PM
#8
EDIT: Just reread what you wrote, misunderstood...So the ports arent considered part of the volume?
Last edited by jcoleman_11; 03-10-2009 at 03:43 PM.
03-10-2009, 04:13 PM
#9
2000 Watt CAFz'r
Join Date: Jan 2001
Posts: 2,026
No the ports are not considered part of the box volume. By looking at the pictures, I would guess that the ports are around 0.2 - 0.3 cubic feet so you are effectively working with a box volume of 1.1 - 1.2 per driver . . . then with the smaller volume, the same length ports mean the ports are tuned to a higher frequency. Ported boxes can be a real pain that way.
03-10-2009, 04:30 PM
#10
No the ports are not considered part of the box volume. By looking at the pictures, I would guess that the ports are around 0.2 - 0.3 cubic feet so you are effectively working with a box volume of 1.1 - 1.2 per driver . . . then with the smaller volume, the same length ports mean the ports are tuned to a higher frequency. Ported boxes can be a real pain that way.
