tricky box for 10" mtx..

Old 11-08-2009, 03:52 PM
  #1
50 Watt CAFz'r
Thread Starter

weirdo's Avatar

Join Date: Nov 2007
Posts: 146
tricky box for 10" mtx..

hey looking for help from all you master box builders...

http://www.mtx.com/caraudio/products...ta_MZS1004.pdf

there is the tech data for the sub... heres the kicker.. i need the ported box to be no more than 18" high and i would love to have the port below the sub in the middle... so that when i open up the pass through... whammo theres the sub and the port .. get the idea.. let me know what you all come up with guys
weirdo is offline
Old 11-08-2009, 04:31 PM
  #2
2000 Watt CAFz'r
iTrader: (6)

jalat's Avatar

Join Date: Mar 2008
Posts: 2,736
what do you mean by, 'open up the pass through'... just to clearify
jalat is offline
Old 11-08-2009, 04:35 PM
  #3
50 Watt CAFz'r
Thread Starter

weirdo's Avatar

Join Date: Nov 2007
Posts: 146
in my back seat there is a center section that folds down and access to the trunk
weirdo is offline
Old 11-08-2009, 04:54 PM
  #4
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
You want to keep the same factory specs just make the box taller so you can fit the port on the bottom? That port is tuned to around 42hz.... Is this going in your SQ car? maybe something closer to 38hz??? Subs FS is 35.5hz so it doesn't leave a lot of room to play with.
DeadlySones is offline
Old 11-08-2009, 04:56 PM
  #5
50 Watt CAFz'r
Thread Starter

weirdo's Avatar

Join Date: Nov 2007
Posts: 146
Originally Posted by N130Gv2 View Post
You want to keep the same factory specs just make the box taller so you can fit the port on the bottom? That port is tuned to around 42hz.... Is this going in your SQ car? maybe something closer to 38hz??? Subs FS is 35.5hz so it doesn't leave a lot of room to play with.
def not in the sq car just for my winter beater and its system, and yea id like a box desighn just like you said a bit taller to get the port underneath the sub.. would be so much appreciated
weirdo is offline
Old 11-08-2009, 05:00 PM
  #6
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
Not sure if Jalat is already working on one for you, but as soon as I pickup the wife from work I'll design you something. Shouldn't take too long. Did you want to keep the higher port tuning. Or go a little lower? Wife's done at 7:00. Should have something for you by 8:00 ish.
DeadlySones is offline
Old 11-08-2009, 05:04 PM
  #7
50 Watt CAFz'r
Thread Starter

weirdo's Avatar

Join Date: Nov 2007
Posts: 146
a little lower would be amazing!!

you guys are the best

i am only good at desighning the sq sealed boxes not much on this ported stuff but i need the bump for the 10" lol
weirdo is offline
Old 11-08-2009, 05:14 PM
  #8
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751
Design is done, I'll sketch it up after I get home. Looks like external dimensions will be:

17H x 17.5W x 14.75D. Port will have same port area only a little longer. 16x1.5x 25.5 (mid 38hz tuning) Same internal volume.
DeadlySones is offline
Old 11-08-2009, 05:15 PM
  #9
50 Watt CAFz'r
Thread Starter

weirdo's Avatar

Join Date: Nov 2007
Posts: 146
ooooo im exited to see!!!!
weirdo is offline
Old 11-08-2009, 06:18 PM
  #10
2000 Watt CAFz'r
iTrader: (4)

Join Date: Mar 2009
Posts: 3,751

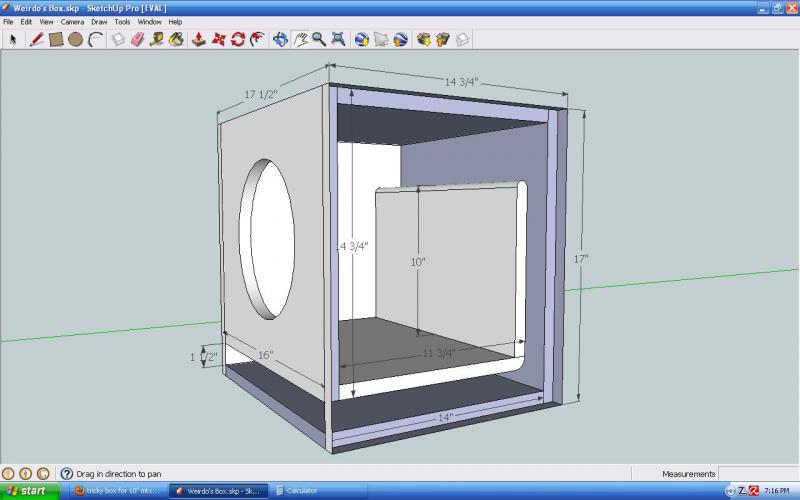

Happy box building. 1.45 @ just about 38hz. Oops forgot to add the sub hole dimension. It's 9 1/8" centered. ENJOY. Rounding port edges will help reduce port noise.
Attached Thumbnails tricky box for 10" mtx..-weirdos-box.jpg

Last edited by DeadlySones; 11-08-2009 at 06:30 PM.
DeadlySones is offline
