Verifying Port dimensions and splitting box design

Old 05-22-2019, 02:29 PM
  #1
0 Watt CAFz'r
Thread Starter

rsmithcbk's Avatar

Join Date: May 2019
Posts: 8
Verifying Port dimensions and splitting box design

Just had a quick question. Im taking some 15's I had in a previous build and putting them into a different car (2008 pontiac Grand prix) I am building a slot ported box for 2 skar audio evl 15's with the SPEAKERS AND SLOT FACING FRONT ( current box dimensions are( 35" W x 15.5" H x 34" D)with 3/4 MDF @ 8.82 cubes gross. I made about 10 card board box mock ups to test fit a box in the trunk which has a terrible shape... so the box dimensions are restricted to what will actually fit in the trunk. My current design is going to have latches (2 on each side and 2 on top) to take the back of the box off for both installation and optional trunk storage as I also do a lot of camping. My question is Port Dimensions. I have come up with a port of 4'W x 14"H x 12"D. I wanted to tune close to 30 hz- I have used multiple port calculators -Slot Port Width is restricted to only 4 inches due to box width and port Height is max at 14 inches. The Skar EVL 15 has an xmas of 23.5mm. Almost every calculator says a port length of 12-13 inches. Does this sound ok? it sounds short but all the reading I have done states usually the length is calculated on box depth and xmas. I wanted to get some opinions before I build the port. I though of doing to round ports but my thought is a slot port in the center will also act as bracing for the box and keep it simple and functional. The calculators say the same depth for 2 six inch round ports anyway so it would be about the same. I know that the round ports will reduce noise but bracing for the ports would probably take up more internal box volume than the slot port design.




















Last edited by rsmithcbk; 05-22-2019 at 06:47 PM.
rsmithcbk is offline
Old 05-22-2019, 09:31 PM
  #2
0 Watt CAFz'r
Thread Starter

rsmithcbk's Avatar

Join Date: May 2019
Posts: 8

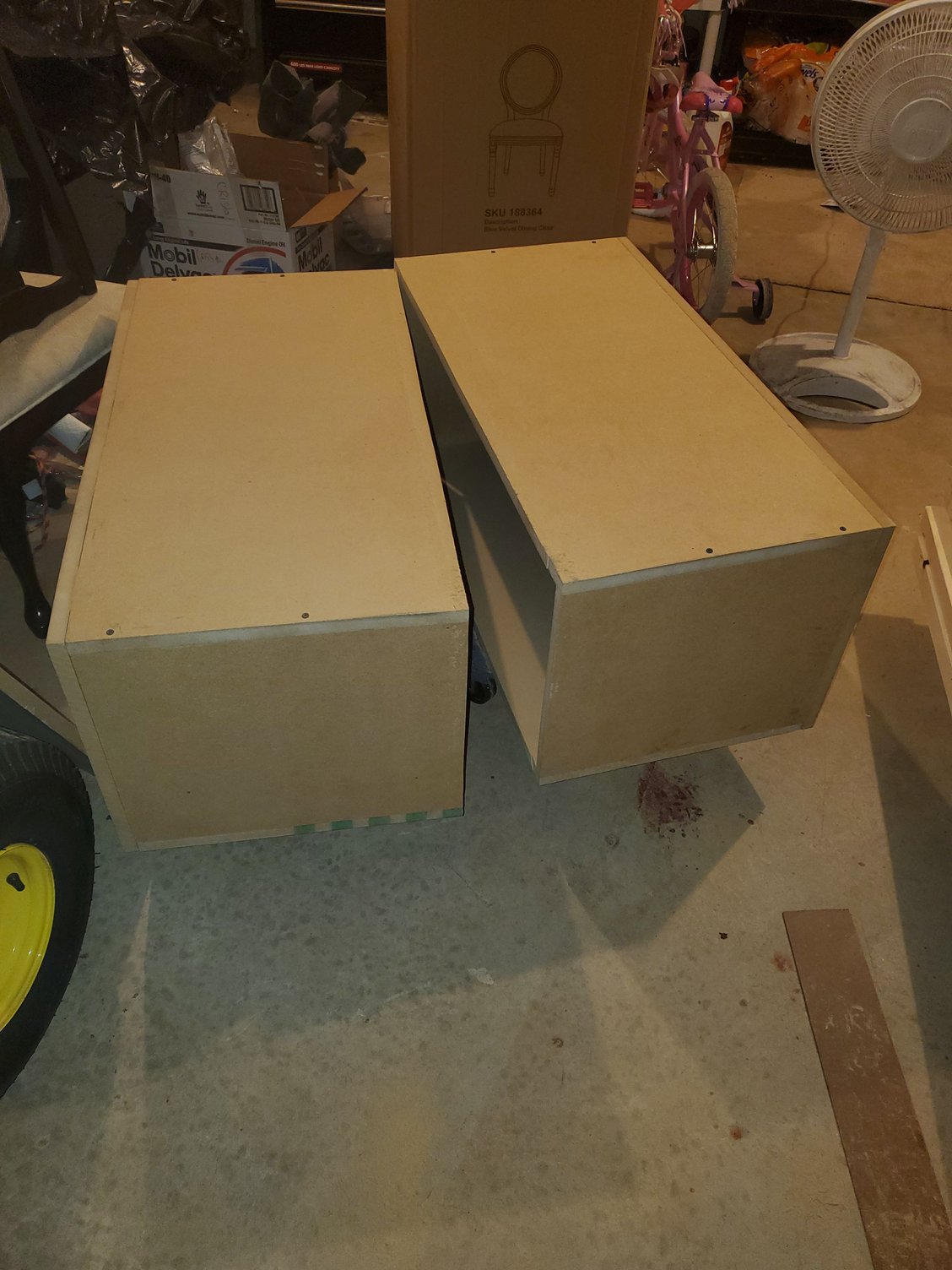

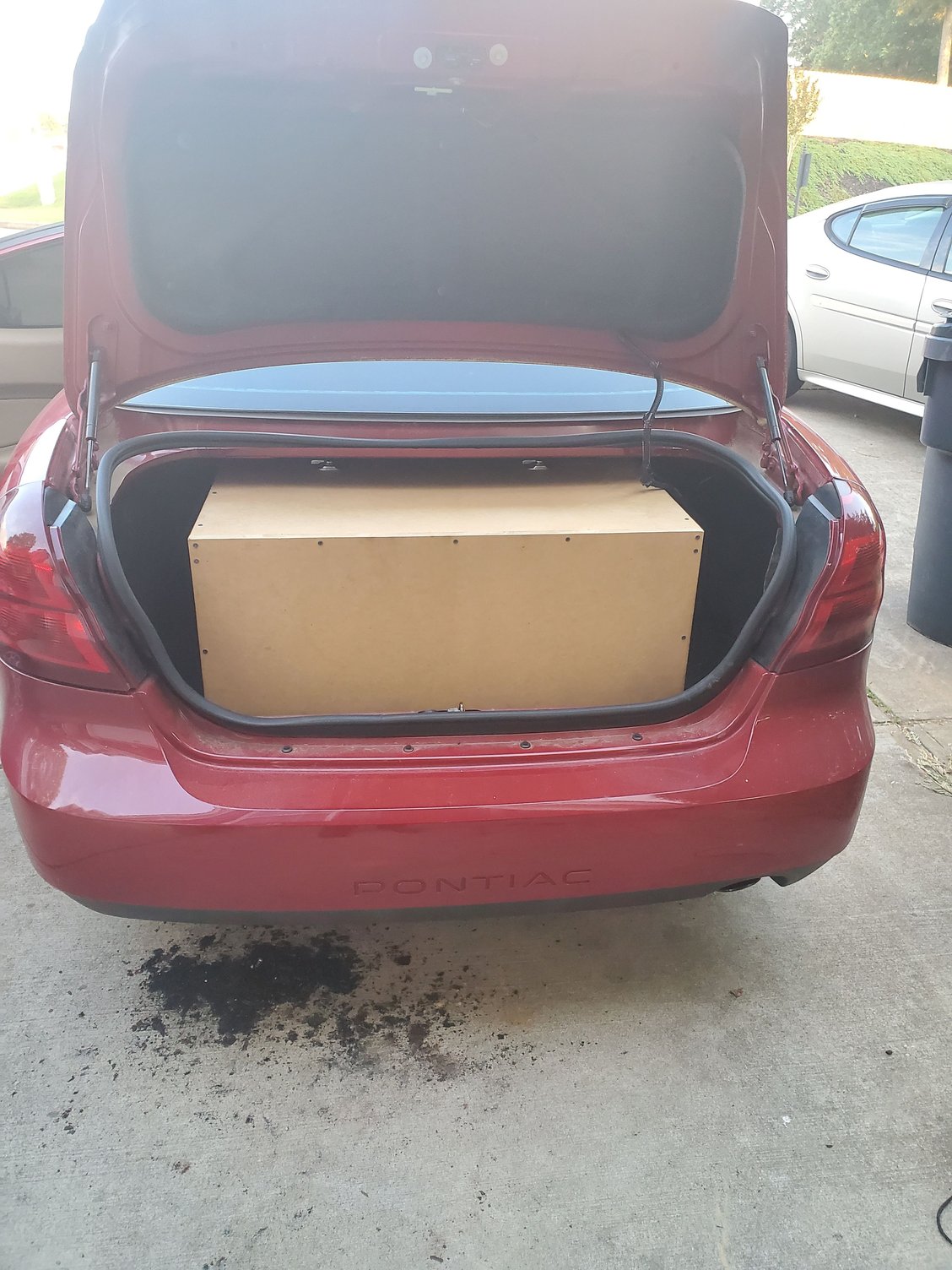

Update on progress
rsmithcbk is offline
Old 05-24-2019, 11:51 AM
  #3
0 Watt CAFz'r
Thread Starter

rsmithcbk's Avatar

Join Date: May 2019
Posts: 8


rsmithcbk is offline
Old 05-29-2019, 05:40 PM
  #4
0 Watt CAFz'r
Thread Starter

rsmithcbk's Avatar

Join Date: May 2019
Posts: 8


rsmithcbk is offline
Old 05-29-2019, 05:42 PM
  #5
0 Watt CAFz'r
Thread Starter

rsmithcbk's Avatar

Join Date: May 2019
Posts: 8
So far the port design sounds great FYI. The roof has a dent so most of the noise I hear is that dent wobbling along with various headliner rattles. The box design is working well. I am now tearing it down to fiber glass resin the interior and bed liner the exterior of the box.
rsmithcbk is offline
Old 05-29-2019, 05:46 PM
  #6
0 Watt CAFz'r
Thread Starter

rsmithcbk's Avatar

Join Date: May 2019
Posts: 8
rsmithcbk is offline
Old 05-30-2019, 07:23 PM
  #7
0 Watt CAFz'r
Thread Starter

rsmithcbk's Avatar

Join Date: May 2019
Posts: 8
Thumbs up Here's a link of the very first power up


Last edited by rsmithcbk; 05-30-2019 at 07:26 PM. Reason: Forgot a title for the link
rsmithcbk is offline
