2007 Ford F350 Crew Cab Build

First off, the pics are huge, sorry for that, hit the back button NOW if your short on bandwidth!
Someday i'll figure out how to resize them properly

I said I would share my build on here when I was done....probably with never be "done" so here it is:

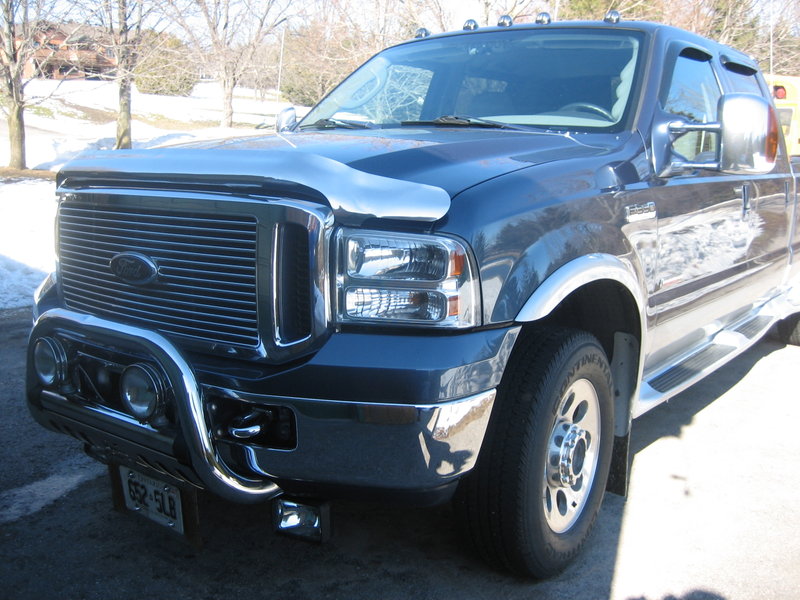

Here's the victim:



What came out: Alpine W205, Parrot BT kit, some infinity speakers & a couple of Infinity amps.

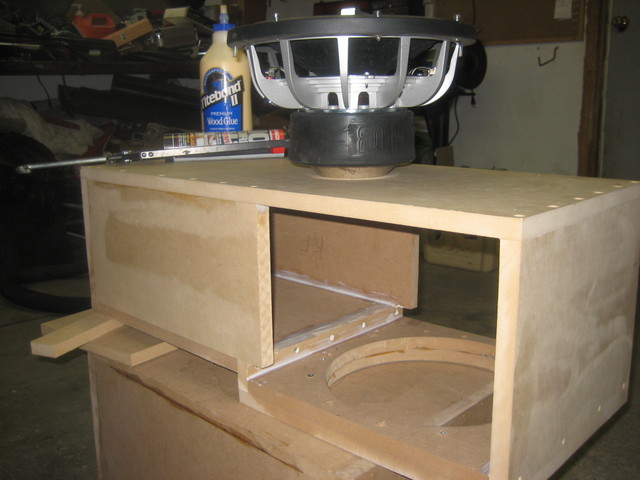

Sub box with 12" RD Sonance:





Something to stretch cloth over:

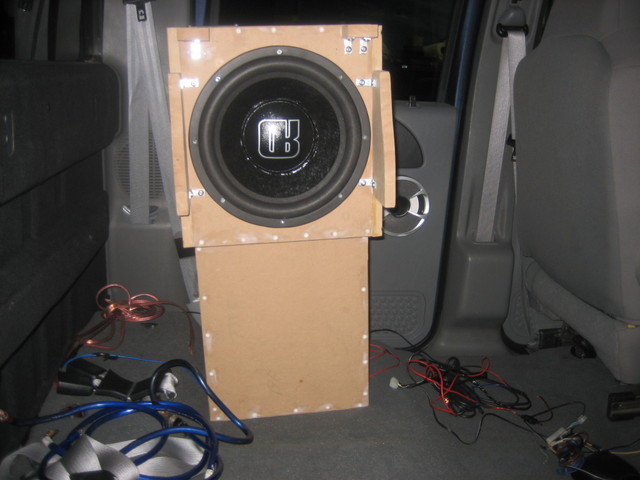

Sub box slid into frame:

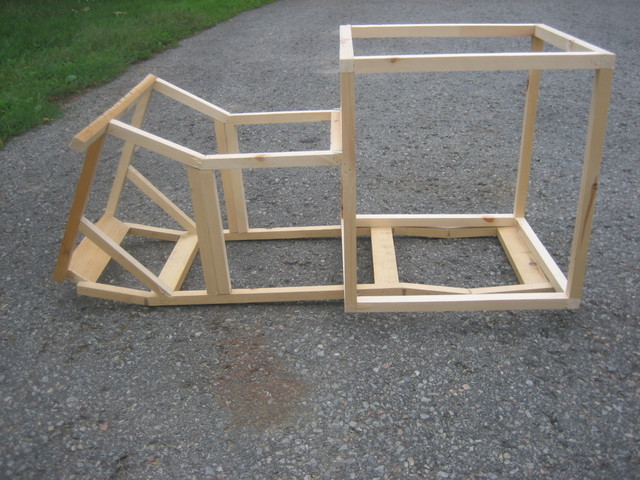

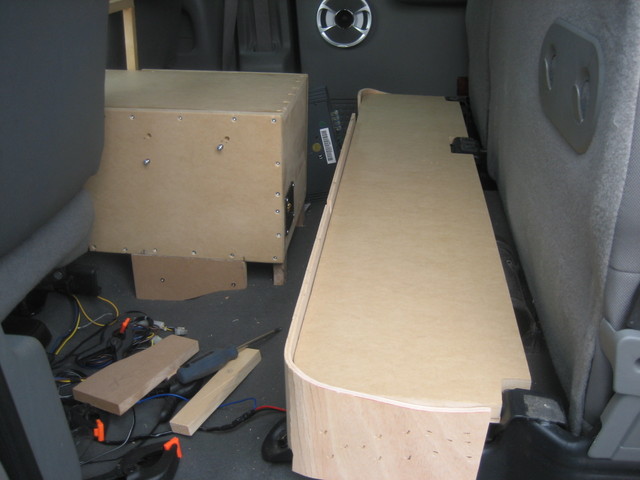

Rear seat framed up:

Attached Thumbnails 2007 Ford F350 Crew Cab Build-2007f350upload20909002rt0.jpg   2007 Ford F350 Crew Cab Build-2007f350pics20909009ra1.jpg   2007 Ford F350 Crew Cab Build-92910u.jpg   2007 Ford F350 Crew Cab Build-92919.jpg   2007 Ford F350 Crew Cab Build-9296.jpg

2007 Ford F350 Crew Cab Build-92925.jpg   2007 Ford F350 Crew Cab Build-92923.jpg

Last edited by Phil G.; 04-10-2014 at 01:40 PM.
Phil G. is offline
Old 04-10-2014, 12:37 PM
  #2
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146
Fiberglass & Filler

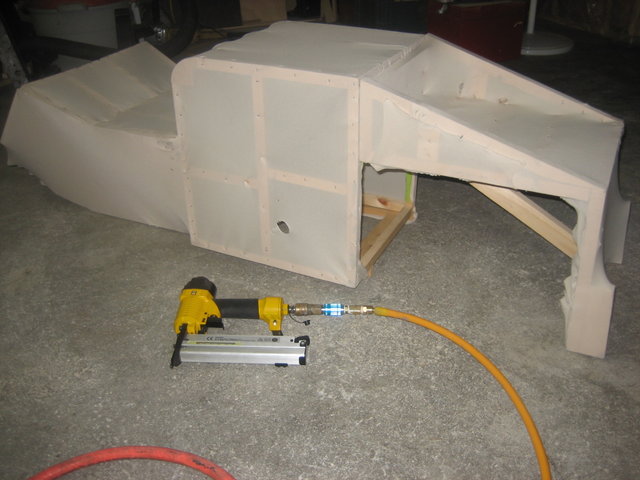

Stretched:



Wetted out:



Layed up & test fit:



Home for the storage bucket:



Carnage from retrieving the bucket:



Storage bucket cut from original middle seat:



Components to be cut into console:



Layed out:

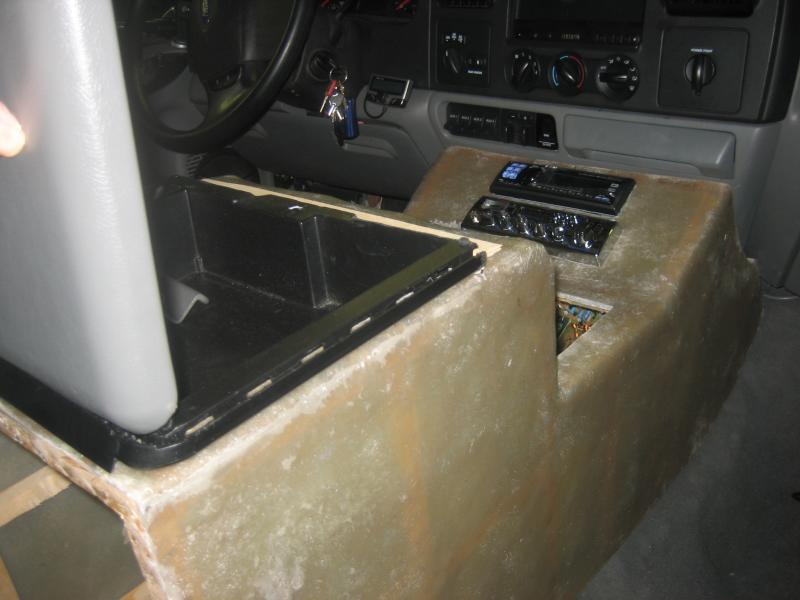

Cut in and test fitted:

Attached Thumbnails 2007 Ford F350 Crew Cab Build-img3083m.jpg   2007 Ford F350 Crew Cab Build-12update2.jpg   2007 Ford F350 Crew Cab Build-img3125f.jpg   2007 Ford F350 Crew Cab Build-img3133u.jpg   2007 Ford F350 Crew Cab Build-img3130ro.jpg

2007 Ford F350 Crew Cab Build-img3141e.jpg   2007 Ford F350 Crew Cab Build-leftsidecomplete.jpg   2007 Ford F350 Crew Cab Build-img3126x.jpg   2007 Ford F350 Crew Cab Build-img3123s.jpg
Phil G. is offline
Old 04-10-2014, 12:54 PM
  #3
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146

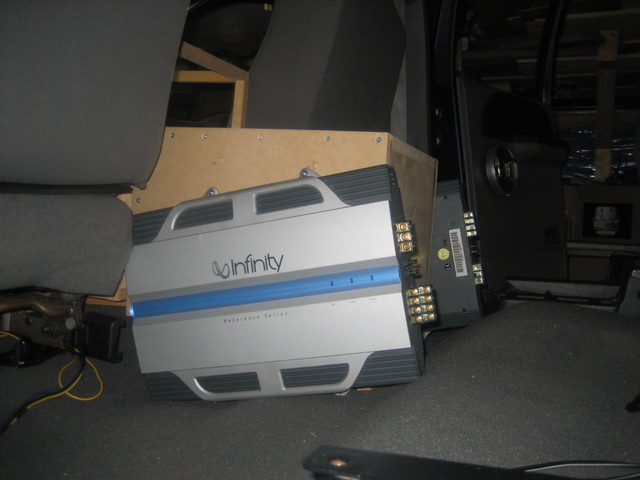

Original plan was to hang the amps on sub box and mount Power distribution & Inverter under the seat:





This plan was abandoned once the decision was made to physically downsize the amps.

Replacement amps:



Speakers were replaced with a couple set's of JL's going here:



Mounted on these:



Tweeters later got switched out with a pair of Alpine's...the JL's could rip your eardrums out from 50'....

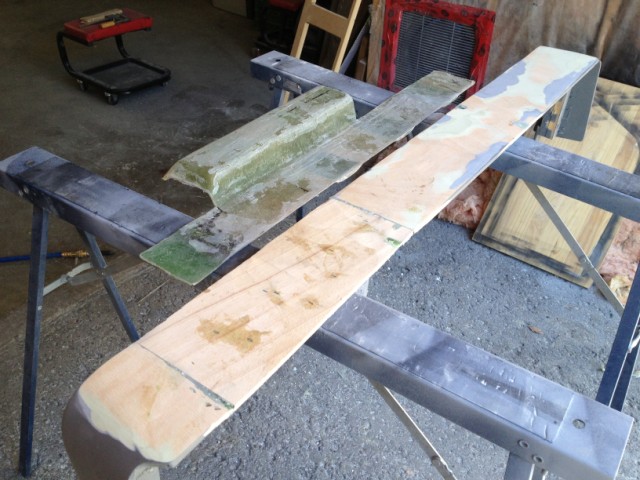

Reworked the under seat area to hold amps and processor plus fab'd up a mount for the rear wall to hold power distribution & Inverter:




Now that everything has a home, time to start the finishing....
Attached Thumbnails 2007 Ford F350 Crew Cab Build-92914.jpg   2007 Ford F350 Crew Cab Build-101513.jpg   2007 Ford F350 Crew Cab Build-pbmf.jpg
Phil G. is offline
Old 04-10-2014, 01:00 PM
  #4
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146
sanding....filling....sanding....filling...sand... OK you get the idea:

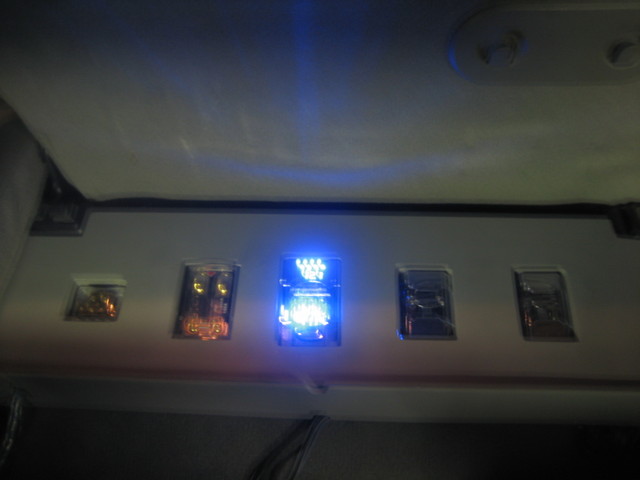

fab'd up a bucket to hold the switches:

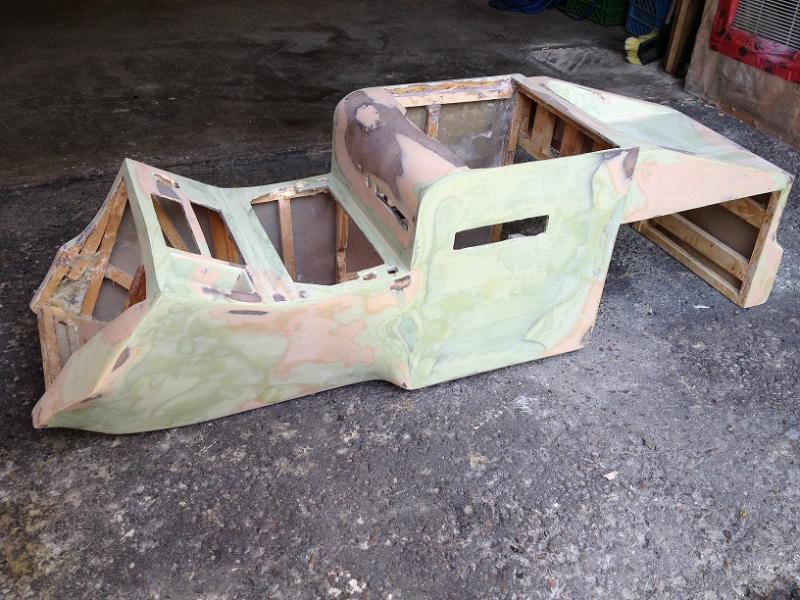

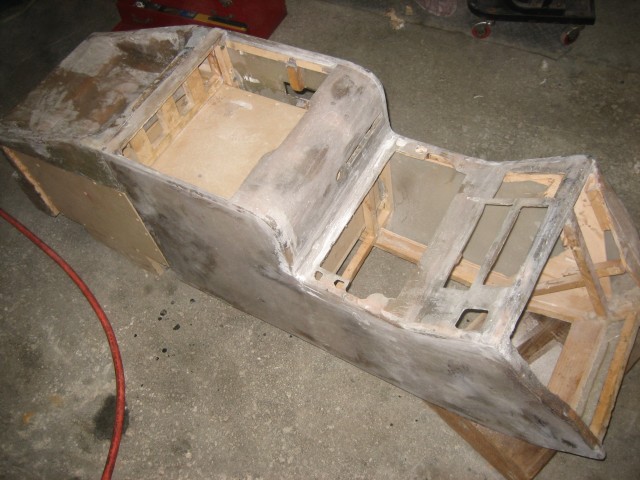

Ready for Primer:

Attached Thumbnails 2007 Ford F350 Crew Cab Build-4rsfillerready.jpg   2007 Ford F350 Crew Cab Build-preprimer.jpg
Phil G. is offline
Old 04-10-2014, 01:11 PM
  #5
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146
Sub Box Mod

Before Priming I decided I had to do something with the side of the box that was originally slated to have amps on it....so...

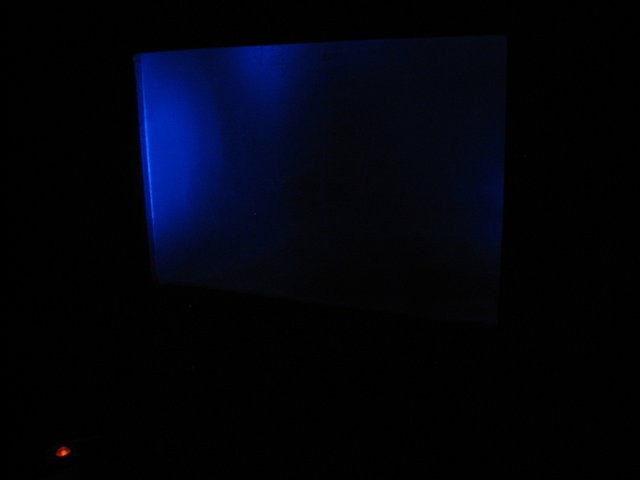

Played around with some LED's

Attached Thumbnails 2007 Ford F350 Crew Cab Build-subled.jpg
Phil G. is offline
Old 04-10-2014, 01:16 PM
  #6
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146
Time to Prime





Attached Thumbnails 2007 Ford F350 Crew Cab Build-primedds1.jpg
Phil G. is offline
Old 04-10-2014, 01:22 PM
  #7
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146

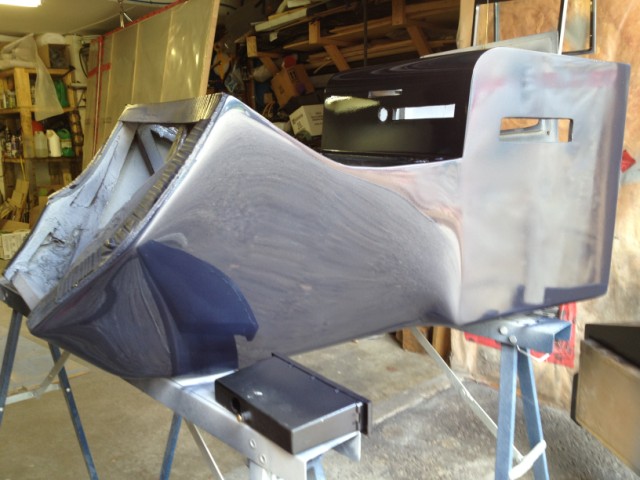

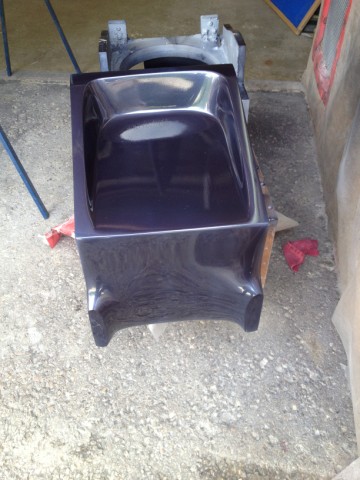

Add some colour:

Rear wall power distro/Inverter mount:



Under Seat components:



Sub window panels:



Rear Rack:



Main Console:

Attached Thumbnails 2007 Ford F350 Crew Cab Build-nsz.jpg   2007 Ford F350 Crew Cab Build-d310.jpg
Phil G. is offline
Old 04-10-2014, 01:37 PM
  #8
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146
Prepared the Truck for Installation

Somewhere around 125' of Be-quiet:





Rough-in the wiring:



Deadened doors and made up plugs for the large openeings:





Aero Tape around the openings:



Friction fit plugs and taped in. Removable for service:



Speaker Mounts:



Speakers and plugs installed:



Original weather shield pulled back over doors:



Replaced the Am/FM antenna with a wifi antenna:


Last edited by Phil G.; 04-10-2014 at 02:26 PM.
Phil G. is offline
Old 04-10-2014, 01:45 PM
  #9
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146
Prepared the Truck for Installation

Double post.....

Last edited by Phil G.; 04-10-2014 at 03:19 PM. Reason: duplicate
Phil G. is offline
Old 04-10-2014, 01:51 PM
  #10
50 Watt CAFz'r
Thread Starter

Phil G.'s Avatar

Join Date: Oct 2007
Posts: 146
Looking Buff..

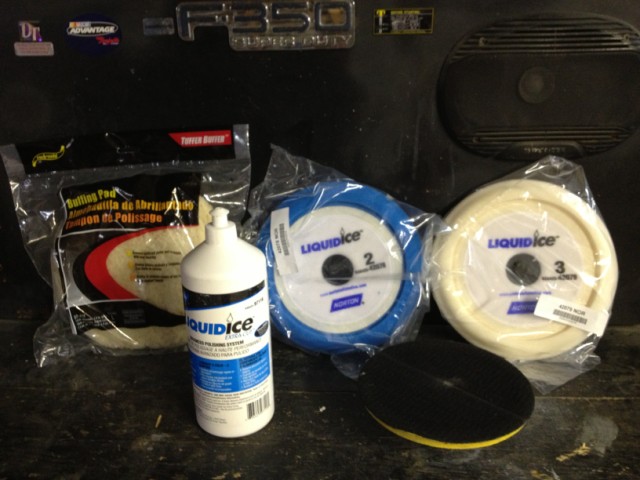

paint now needed to be buffed, I used this



After buffing & a couple coats of Zaino's polish:

Attached Thumbnails 2007 Ford F350 Crew Cab Build-i3hn.jpg
