Junk Brazilian Amps

Well brought up because of the other thread and comments made.....

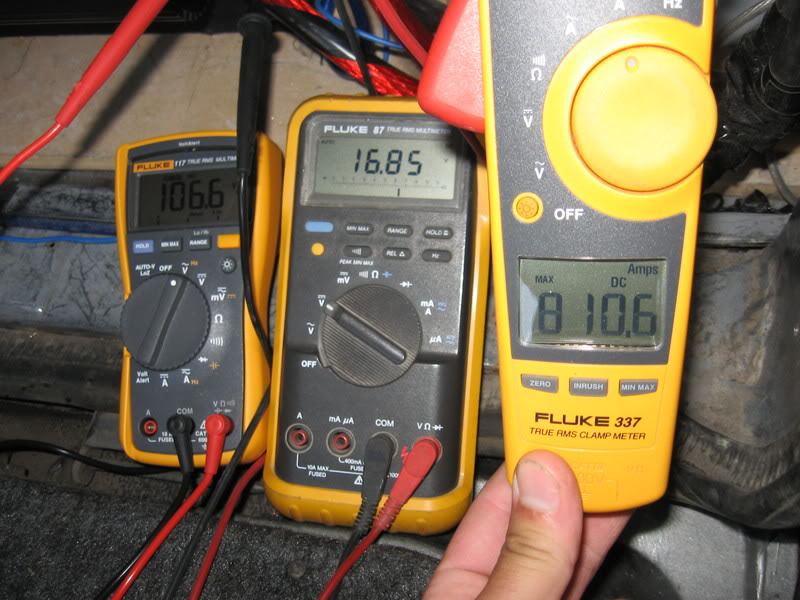

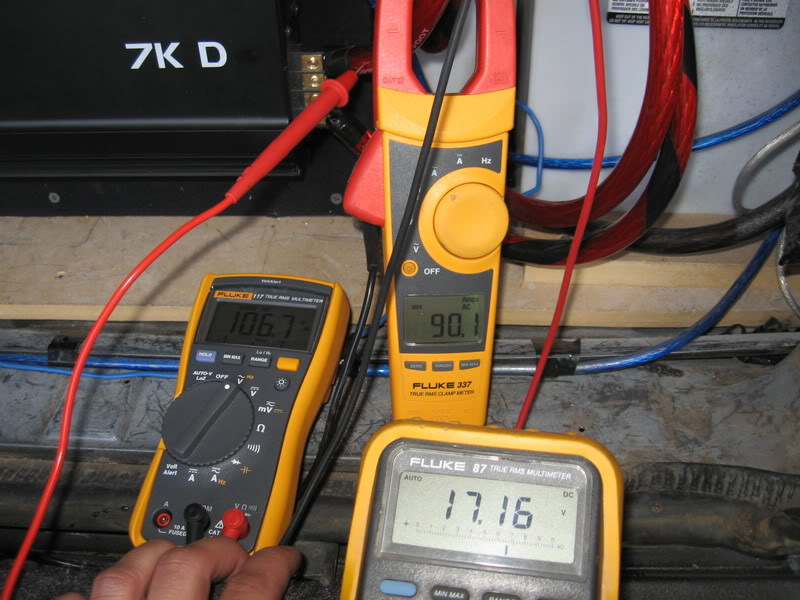

Here is some #s i have been doing with a single Stetsom 7kd in my truck.
Name a amp this size that can make this power? Brazil it on top of car audio amplifiers if you ask me.

Name: Picture299.jpg
Views: 689
Size: 86.5 KB

Name: Picture299.jpg
Views: 689
Size: 86.5 KB

Name: Picture300.jpg
Views: 528
Size: 96.2 KB

07-12-2008, 01:54 PM

Westec

1000 Watt CAFz'r

iTrader: (1)

Join Date: Apr 2003

Posts: 1,448

my DDz1a is pretty well the same numbers...

07-12-2008, 02:00 PM

ShockingCanada

1000 Watt CAFz'r

iTrader: (1)

Join Date: Feb 2001

Posts: 1,287

I can't be sure but I have a hard time believing a Z1a is doing 9500wrms even at 17volts...could be wrong though I know they are nice amps I own one and I know that they are on par with the stetsom in street not sure about 17volts though

07-12-2008, 05:27 PM

crabmustang

50 Watt CAFz'r

iTrader: (3)

Join Date: Jun 2006

Posts: 319

What impedance are you running that amp at? looks like 1.2 ohms after rise, must be starting about .125 or .25 ohms

Nice power

Garett

07-12-2008, 06:13 PM

ShockingCanada

1000 Watt CAFz'r

iTrader: (1)

Join Date: Feb 2001

Posts: 1,287

probobly 0.35ohms I would guess...maybe 0.5

07-12-2008, 07:36 PM

Mr.American Bass

Guest

Posts: n/a

We measured 90+v and 89amps in Yanivs Truck from 1 500.1 at 18v not bad for a 5k amp.

07-13-2008, 03:52 AM

Haunz

4000 Watt CAFz'r

iTrader: (3)

Join Date: Jun 2002

Posts: 4,218

^ keep in mind the measured current output into a reactive load is going to be significantly higher then it 'really is'....

you guys should try using a dummy load...

07-13-2008, 10:38 AM

johnw

500 Watt CAFz'r

iTrader: (4)

Join Date: Sep 2006

Posts: 518

Quote:

Originally Posted by Haunz

^ keep in mind the measured current output into a reactive load is going to be significantly higher then it 'really is'....

you guys should try using a dummy load...

Too bad that you dont actually use DUMMY loads in competition, so whats the point? IN CAR measurments between amps when comparing are what counts, here.

07-14-2008, 11:11 AM

The A Team

--SPECIAL ED--

Thread Starter

iTrader: (1)

Join Date: Dec 2004

Posts: 987

James you arnt getting anywhere near 9600 watts in street. lol What are you thinking???
Riprock only got 6500 from the Z2s in the trooper on 17 volts, and now they are doing 9800 with the Stetsoms.

I agree totally with johnw there, in car testing is what is important. You cant make to same power in a real car audio application as you can on the bench into resistors.

As for the impedance i am running this amp at it is 0.8 ohm and is ran daily / Bass Race / Demo'd hard!!! Rise up to 1.2 ohm very stable right now. My build is blessed with very little imp rise. =)
