Opend the Amp

Old 08-03-2006, 01:16 PM
  #1
50 Watt CAFz'r
Thread Starter

twistedsickness's Avatar

Join Date: Jun 2006
Posts: 357
Opend the Amp

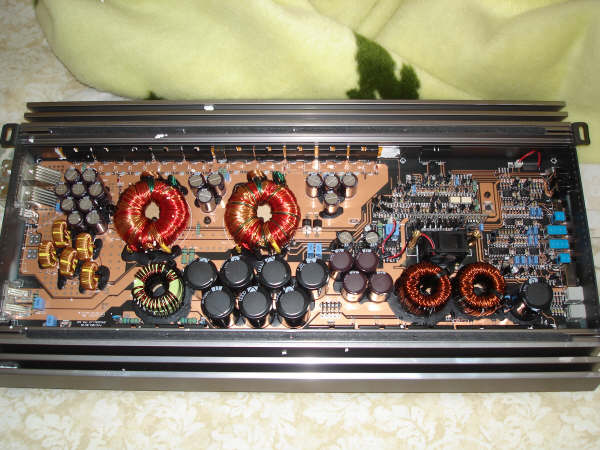

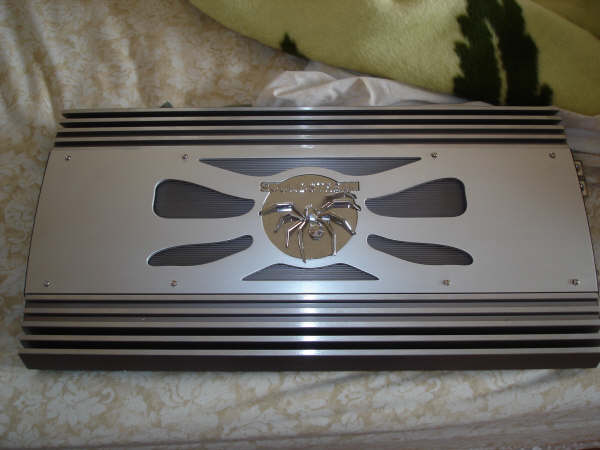

Today i just wanted to open the Amp up Soundstream 3500ClassD
Attached Thumbnails Opend the Amp-amp.jpg   Opend the Amp-open.jpg   Opend the Amp-open-2.jpg   Opend the Amp-open3.jpg
twistedsickness is offline
Old 08-03-2006, 01:30 PM
  #2
500 Watt CAFz'r

loudlemans's Avatar

Join Date: Oct 2005
Posts: 956
nice looking amp man
loudlemans is offline
Old 08-03-2006, 02:36 PM
  #3
2000 Watt CAFz'r
iTrader: (1)

SUX 2BU's Avatar

Join Date: Apr 2002
Posts: 2,351

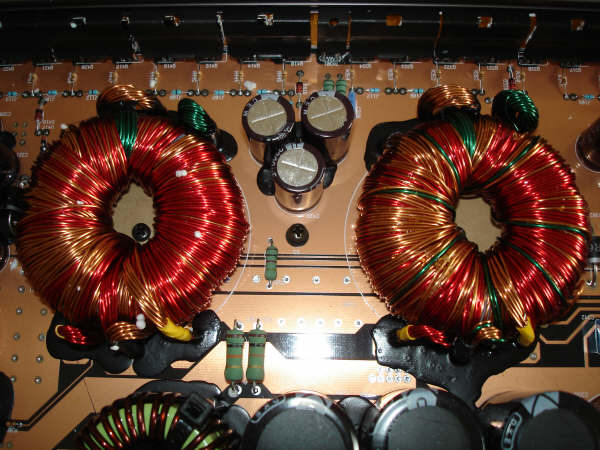

Wow, that's a lot of copper on the board! Not too often you see way more copper than you do epoxy. Better watch out or those guys on bicycles will jack your amp just to take it to the metal salvage yard
SUX 2BU is offline
Old 08-03-2006, 03:28 PM
  #4
50 Watt CAFz'r
iTrader: (3)

Join Date: Jul 2006
Posts: 103
I don't know exactly what I'm looking at inside the amp but it sure looks pretty
RScooby is offline
Old 08-03-2006, 07:59 PM
  #5
50 Watt CAFz'r

infared_vision's Avatar

Join Date: Apr 2006
Posts: 66
Originally Posted by RScooby
I don't know exactly what I'm looking at inside the amp but it sure looks pretty
i was thinking the same thing...

maybe someone could educate us ?
infared_vision is offline
Old 08-03-2006, 11:34 PM
  #6
4000 Watt CAFz'r
iTrader: (1)

Brandon's Avatar

Join Date: Jan 2001
Posts: 4,603
It's the inside of the amp.
Brandon is offline
Old 08-05-2006, 12:50 AM
  #7
50 Watt CAFz'r

Join Date: Sep 2003
Posts: 192
Hey

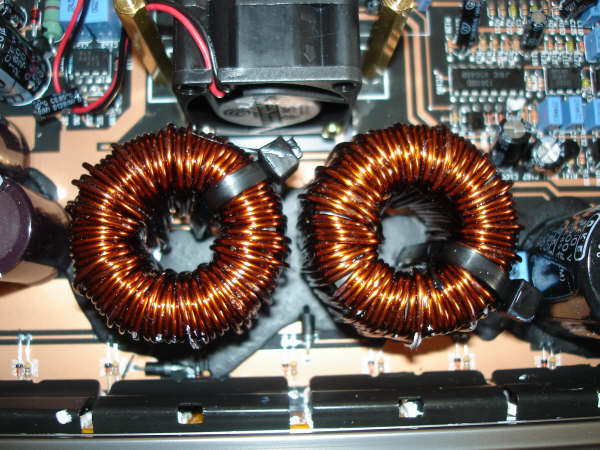

Looks nice, aside from the fan for the smoothing inductors. Glad to see the zip ties holding them to the board too, I've repaired a few amps where the inductor mass broke the leads or foils (Earthquake & US Amps). Looks much different than the old school SS stuff.

J
Jaxom is offline
Old 08-05-2006, 08:13 AM
  #8
50 Watt CAFz'r
iTrader: (2)

Join Date: Jul 2006
Posts: 124
very sexy amp
BIG UNIT is offline
Old 08-05-2006, 11:47 AM
  #9
2000 Watt CAFz'r
iTrader: (3)

Join Date: Nov 2004
Posts: 2,455
build quality looks good.
veeman is offline
Old 08-06-2006, 11:07 AM
  #10
Administrator

Dukk's Avatar

Join Date: Feb 2006
Posts: 16,855
Lightbulb

Manufacturers have done a great job of prettying up the insides of amps. These days it doesn't matter if it is an inexpensive fleabag amp or high dollar, they all look good inside.

Contrary to the amps of old. Here is a photo of the inside of an Alpine 3545, which many will argue as one of the best amps ever produced:


At that time most amps looked like this inside.
