Moley

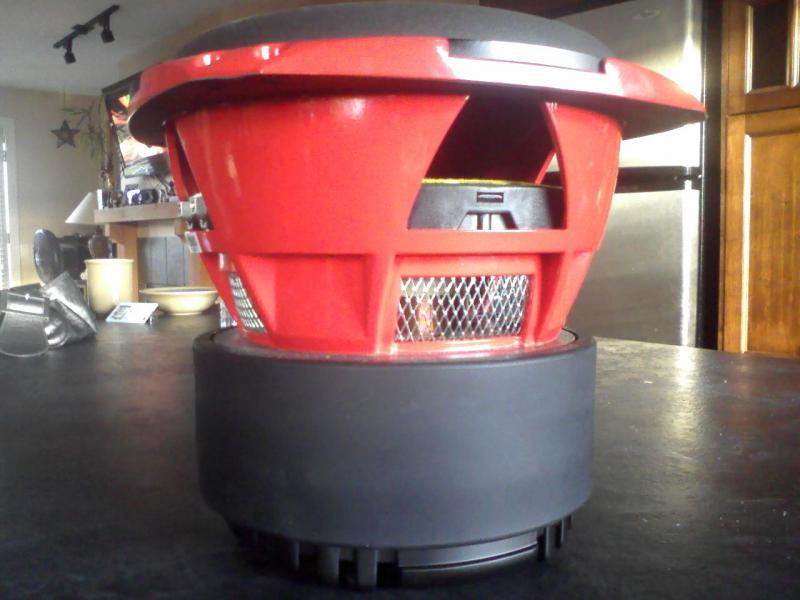

Ok here is 1 of soon to be 2 of the massive 40 pound beast that I just got. I was wondering how to mount these suckers. Its not like a regular sub thats for sure. Do I have to use the wood that it came with in the box? Has alan bolts.....weird and they are only in 4 corners not all the way around.....idk. Any help is great.

jalat

iTrader: (6)

wood the comes with it is for packaging purpose. just mount like any other subwoofer.

Moley

So do I use the alan bolts that it came with and put the nuts on the back or just use screws instead? Also I was looking at the specs on the orion website and it say for seald 10" .9 cubes and for ported it say .75 cubes. I am confused. Why would it be smaller for ported?

jalat

iTrader: (6)

I would use what it came with, but if not, a solid coarse thread screw should work fine.

As for the enclosure specs, it might just be a typo, i would have to look up the manual.

Moley

Ok I think I will use what it came with. It will suck it down tighter that way. Strange that it only bolts down on the corners. I guess the basket is ridged enough to make a seal. Good thing it comes with a gasket.

Those specs are from the pdf manual on the orion website. Mabye I am not understand the vas or whatever. Would you mind reading it and tell me what you think. It is the d4 10"
http://www.directeddealers.com/manua...8-11MLweb2.pdf

jalat

iTrader: (6)

SO after reading the manual, it suggests to use a 1.7 cubic foot enclosure if only using 1500rms or less, and .75 cubes if you are using 1500rms or more.

Depending on the power going to the subwoofer, I think you would be safe with an enclosure that is 1.25 cubic feet after displacement @ 38hz

Moley

The box I am putting them in ( once I get my second hcca ) is 2.25 cubes internal tuned to 40 hz. I will be giving them about 750-900 rms per. Ya think that will work?

Moley

They would be in about .8 - .9 cubes each after displacement. I had 2 10" re audio sx's in the same box and it slammed hard off the same amp. I expect the same or more from the orions. Hopefulley they won't smell like burnt plastic like the re's did.

jalat

iTrader: (6)

It should be alright. I think if you ever plan to rebuild an enclosure, it should be around 3 cubic feet @ 38hz with a good amount of bracing.

Moley

You know its funny. I am not sure who it was but they told me to build a box at 2.5 cubes tuned to 35 hz for the re's with the port and subs forward walled off. I did and it was worse then this box now ( 2.25 cubes subs forward ports up ) so I am willing to bet that this box will slam too. I like this smaller box cause that way I can get my spare tire in the trunk. I couldn't with the other box. In any case I will give this one a go when I get my second sub. I got this one off craigslist brand new in seald packaging for 180. I don't think I will find a deal like that for the second one. I guess they are around 330 us online.
