RF P3D2 12" not performing

Old 02-03-2016, 03:23 AM
  #1
0 Watt CAFz'r
Thread Starter

Join Date: Dec 2015
Posts: 3
RF P3D2 12" not performing

My current system:

Pioneer deh-x8750bt
Fusion CA-DA12250 sub amp
Fusion CA-DA41400 Speaker amp
Front: Pioneer TS-A1605c
Rear: Alpine SPR60
2x 4 gauge wiring
Additional earths from battery to chassis
Rockford Fosgate P3d2 12" in sealed 28L box

My Situation:
I recently installed a Rockford Fosgate P3D2 12" Sub into my Ford Falcon (large sedan) it's being powered off a Fusion CD-DA12250 amp running at 1 ohm. After 2 weeks (20 or so hours) of running it at a low-mid volume I thought it was time I could turn it up.

After some tuning I got the sub sounding good but it didn't have a lot o volume to it, I was expecting it to be very loud and since my amp is rated at 1100w rms at 1 ohm I expected the amp to easily power this sub but even with the gain at almost full volume it's no where near loud enough to really give a good kick. BTW I set my speaker amps gains to be at their max volume at around 38-40\60 on my headunit.

I've set the sub amp cross over to about 80hz and all eq's on the headunit are turned off, I've also tried changing the polarity of the sub and I"ve got the sub facing backwards against the rear seats.

The earth to the amps are good and are only about 8" long, i've used good terminals and my battery & alternator are both in good order.

I'm quite happy with the speaker side of things they go loud enough and give good mid bass, but I feel like I'm lacking the bottom end.
efnut is offline
Old 02-03-2016, 11:01 AM
  #2
1000 Watt CAFz'r
iTrader: (1)

thumpper's Avatar

Join Date: Oct 2004
Posts: 1,090
sounds like install problems ..what are you using for a sub enclosure ?
thumpper is offline
Old 02-03-2016, 11:57 PM
  #3
0 Watt CAFz'r
Thread Starter

Join Date: Dec 2015
Posts: 3
Originally Posted by thumpper View Post
sounds like install problems ..what are you using for a sub enclosure ?

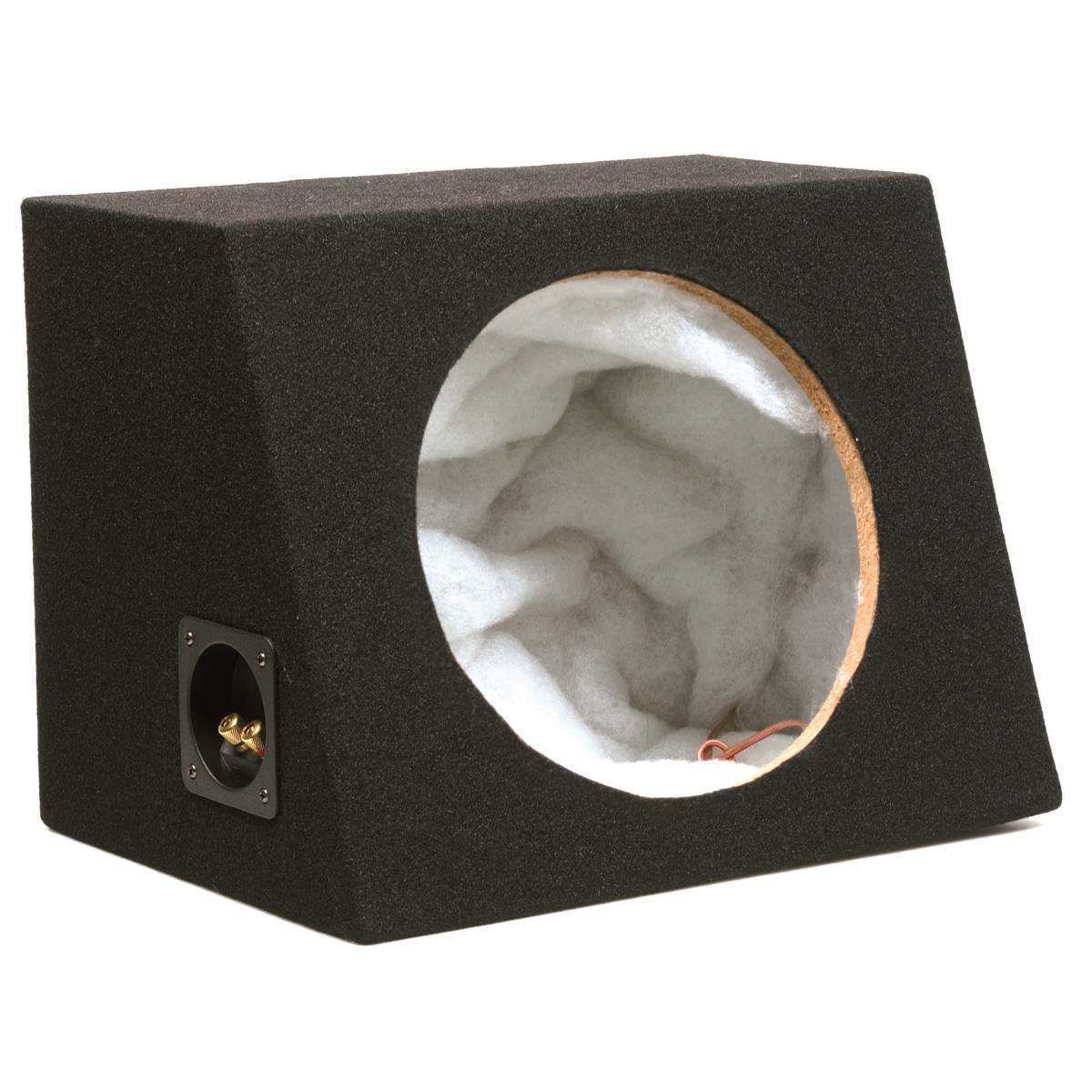

A brand new one of these. I've also tried using different RCA cables and getting the source for the sub amp from the output of my speaker amp instead of the sub out on the headunit.

Attached Thumbnails RF P3D2 12" not performing-224830-zoom.jpg
efnut is offline
Old 02-04-2016, 06:37 AM
  #4
1000 Watt CAFz'r
iTrader: (1)

thumpper's Avatar

Join Date: Oct 2004
Posts: 1,090
that's a sealed box...........say goodbye to any output

go ported , 1.75cf3 tuned around 32hz - 35hz

Last edited by thumpper; 02-04-2016 at 03:03 PM.
thumpper is offline
