General SPL General discussion of Sound Pressure Level topics.

Newest Build

Old 06-01-2011, 11:01 PM
  #1
50 Watt CAFz'r
Thread Starter

Join Date: May 2010
Posts: 189
Newest Build

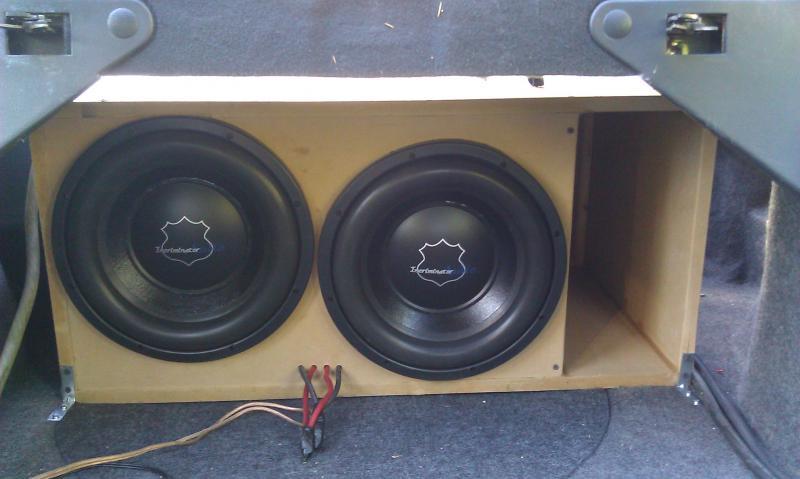

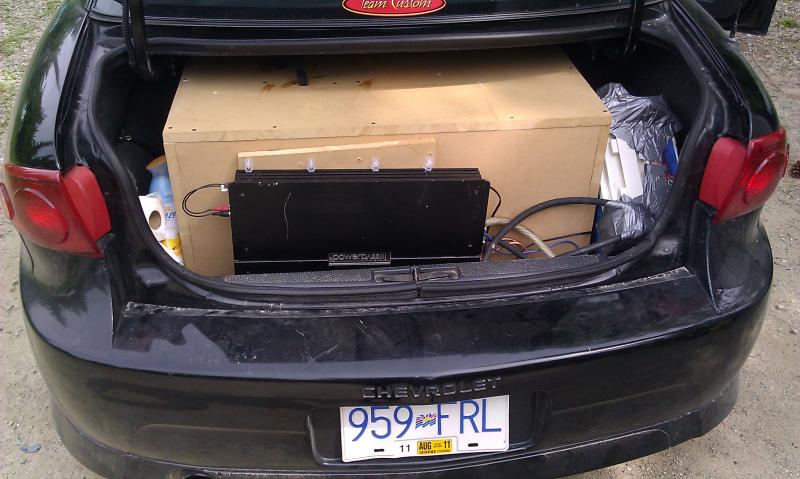

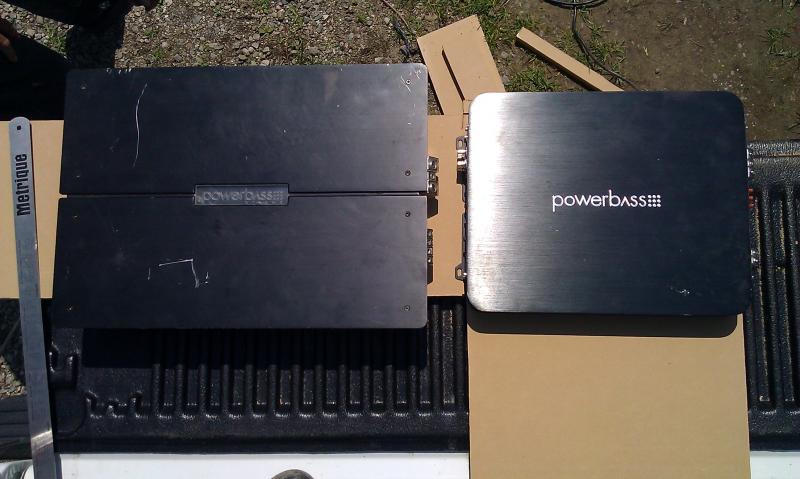

Well after a couple of failed attempts at making a decent box for my new subs I have made this one. The port is 6 inches wide, 14 inchs tall and 19 inchs long. Subs in the box are incriminator audio lethal injection 12's. My amp is the BIG one now, was the smaller one before. That amp is a powerbass 4000xta powered by a xs power d3100 in the trunk basically right beside the amp.

I plan to use some b quiet and deaden the trunk totally and run some more zero gauge runs from the battery under the hood to the back battery. Also I am looking to buy a xs power d3400 to stick under the hood. The box will get some fiberglass resin here with in the next couple weeks. All and all I am impressed with what i have done so far with some words from a few people and thats about it. Thanks luke and dale, and bill need to get on that meter of your buddy.
Attached Thumbnails Newest Build-imag0702.jpg   Newest Build-imag0699.jpg   Newest Build-imag0715.jpg
bjohnstone23 is offline
Old 06-19-2011, 12:44 AM
  #2
500 Watt CAFz'r

Lethal's Avatar

Join Date: Mar 2004
Posts: 923
that box looks like something marty would make
Lethal is offline
Old 06-19-2011, 07:37 PM
  #3
50 Watt CAFz'r
Thread Starter

Join Date: May 2010
Posts: 189
ya no, nothing to do with marty this box, this is a box design I came up with. Just a bunch of number crunching and trying to figure out an aprox port size and now this thing hammers in my car. Just in fact did some more sanding on it today and painted it. Gonna be re-installing all my gear in next week or two.
bjohnstone23 is offline
Old 06-22-2011, 09:26 PM
  #4
Guest
iTrader: (4)

ChrisB's Avatar

Join Date: May 2001
Posts: 7,724
Originally Posted by bjohnstone23 View Post
Well after a couple of failed attempts at making a decent box for my new subs I have made this one. The port is 6 inches wide, 14 inchs tall and 19 inchs long. Subs in the box are incriminator audio lethal injection 12's. My amp is the BIG one now, was the smaller one before. That amp is a powerbass 4000xta powered by a xs power d3100 in the trunk basically right beside the amp.

I plan to use some b quiet and deaden the trunk totally and run some more zero gauge runs from the battery under the hood to the back battery. Also I am looking to buy a xs power d3400 to stick under the hood. The box will get some fiberglass resin here with in the next couple weeks. All and all I am impressed with what i have done so far with some words from a few people and thats about it. Thanks luke and dale, and bill need to get on that meter of your buddy.
Just a small recommendation, sand the port opening a little to smooth it out, or add some PVC
ChrisB is offline
Old 06-22-2011, 10:38 PM
  #5
50 Watt CAFz'r
Thread Starter

Join Date: May 2010
Posts: 189
I sanded that thing for 3 hours a few days ago and got the edges of the port smoother and rounder as well as I painted the box to.
bjohnstone23 is offline
Old 06-23-2011, 01:39 PM
  #6
1000 Watt CAFz'r
iTrader: (1)

Join Date: Apr 2006
Posts: 1,462
Enough port area or is that box huge or tuned high?
Lord Huggington is offline
Old 06-23-2011, 01:48 PM
  #7
50 Watt CAFz'r
Thread Starter

Join Date: May 2010
Posts: 189
box is not huge fits in the trunk of my cavalier no problem, and its tuned aprox for 45hz.
bjohnstone23 is offline
Old 06-23-2011, 01:50 PM
  #8
50 Watt CAFz'r
Thread Starter

Join Date: May 2010
Posts: 189
box dimensions are 34wide x 14 high x 18 deep. That total size including port
bjohnstone23 is offline
Old 06-23-2011, 02:45 PM
  #9
2000 Watt CAFz'r
iTrader: (2)

fresh1's Avatar

Join Date: Feb 2008
Posts: 2,063
I love the saftey measures taken in the trunk for the second battery.
fresh1 is offline
Old 06-23-2011, 03:09 PM
  #10
50 Watt CAFz'r
Thread Starter

Join Date: May 2010
Posts: 189
much better safe then sorry. I would rather duct tape the hell outta it then let that massive battery arc out and start a fire or even worse cook my amp. Mind you there is so little room for it that u have to wedge it into place and with its weight its just sits there.
bjohnstone23 is offline
