gramser57

iTrader: (1)

You do realise if you do upgrade your sub you will need a new box, your current port area is small and those subs will need lots of port area especially the LVL 4.

wasted911

iTrader: (2)

It might just be me, but I don't see his port area stated ANYWHERE in this thread.

The DC's are awesome subs. You'd be happy.

gramser57

iTrader: (1)

To the op have you considered Fi car audio? My last setup I had a Fi BL 15" fully loaded and it played all notes with brutal force.

G POUNDER

iTrader: (1)

Thanks for the vote of confidence for the DC. Not really a box guy so dont know how to calculate port area. I do know the dims and tuning of the box and perhapse if i posred them some one may be able to use that as refernce to determine an estimate. Dims are as follows:
H- 16"
W- 36"
D- 18.5
Tuned at 29 hz.

G POUNDER

iTrader: (1)

I sure have... Was really lookin at the Q. Thing with fi subs is that box req are too big. If i was gonna do a largwr box i would have gone with the Aa havoc. Really like what i hear about those subs and nobody here has em. Again, thanks for the suggestions... Now just waitin for a good reason from anyone not to go for the dc... Lol So far only good things and if it stays like that, placin the ordwr tomorrow morn.

gramser57

iTrader: (1)

I had a pair of lvl 2's and lvl 3's, in my experience DC's don't like the lows unless you build a huge box for them. Also noticed they don't like to be overpowered and would make a popping noise when bottoming out lol


How wide is your port? I can figure out your total port area just need your port width.

G POUNDER

iTrader: (1)

Port width is 3" and Height is 14.5 if im not mistaken. Got me second guessing this DC... Your the 1st person to have any subjective input, but the fact that you have used them in what looks to be a very nice box, says alot, so thanks for that.

gramser57

iTrader: (1)

No worries I'm just trying to help you out so you can avoid dumping lots of money into a subwoofer and realise it sounds like poop because its in the wrong enclosure.

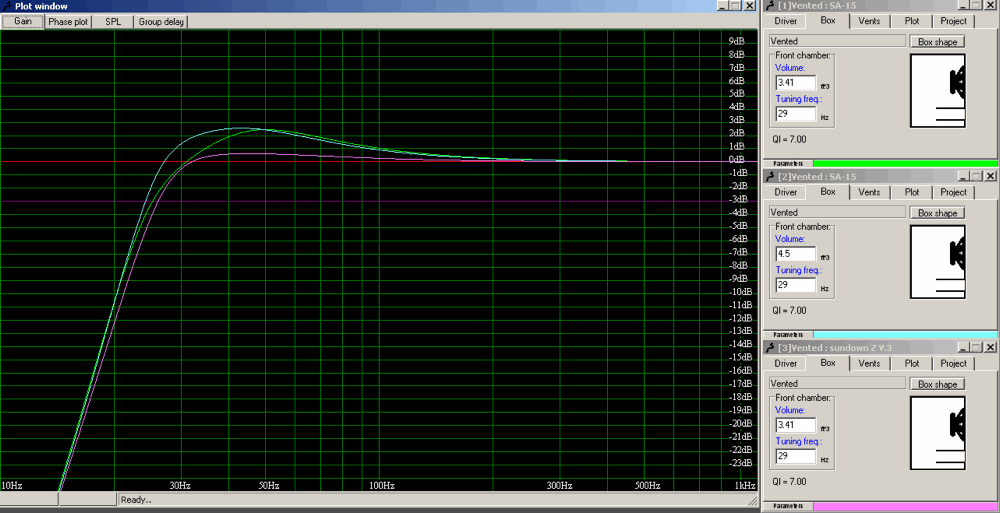

So to better visualise your enclosure and how its performing I punched in your box stats in Winisd. The green line represents your current box with the SA-15. Since DC audio doesn't list T/S parameters for the LVL 4's I went with the Sundown Zv.3 and notice how flat it plays and doesn't seem to get loud up until 40hz but to me looks quiet

If you were to build a new box for the SA-15 that is 36" wide 16" high and 18.5" depth but instead of a slot port went with a single 6" diameter by 15" length aeroport the final specs would be 4.5 cubic ft. tuned to 29hz and thats what the blue line represents. Between 25hz - 40hz you gain alot of output especially 40hz where its almost +3db which to the human ear is equivalent to almost twice as loud. HTH
http://farm9.staticflickr.com/8103/8...22b90752_o.png

Dukk

10db is double perceived loudness. 3db is like doubling the amp power.

That blue line will seriously rearrange your fillings.

G POUNDER

iTrader: (1)

Damn you gramser57!!!! LMAO!! Where the hell were you when i was tryin to build a box for my 2 15's?? lol.... Seriously though, thanks a bunch for your help. Your input has been both eye opening and informative. Unfortunately i read your last post too late as i had already placed my order for the lvl 4. Friend of mine was also making a purchase and got us an AWSOME deal. Now i know im getting ahead of myself but just wanna cover my bases. CANNOT find a decent box builder locally. Was hoping you could help me with a box build for 2 SA-15's?? Can provide you with all the info you need if you would be willing. Can pm you my email and we can chat.... Also would like to thank all who have submitted replies to this thread. Nice to know there is somwhere to go for help when needed. Just in case this DC doesn't work out I will still have my 15's to try a build for again. Just gonna have to take 1 back from my step son and give him the DC but he will be fine...lol
