800W frontstage anyone ? :P
#1
800W frontstage anyone ? :P

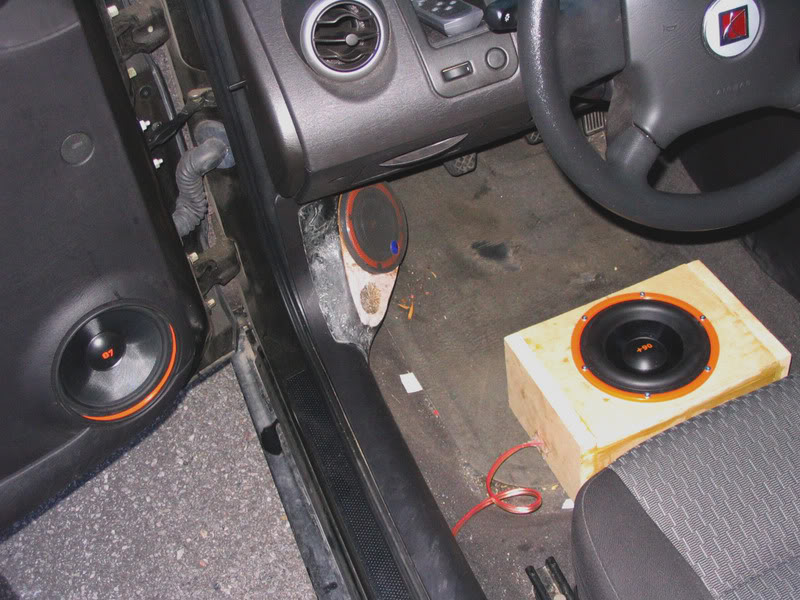

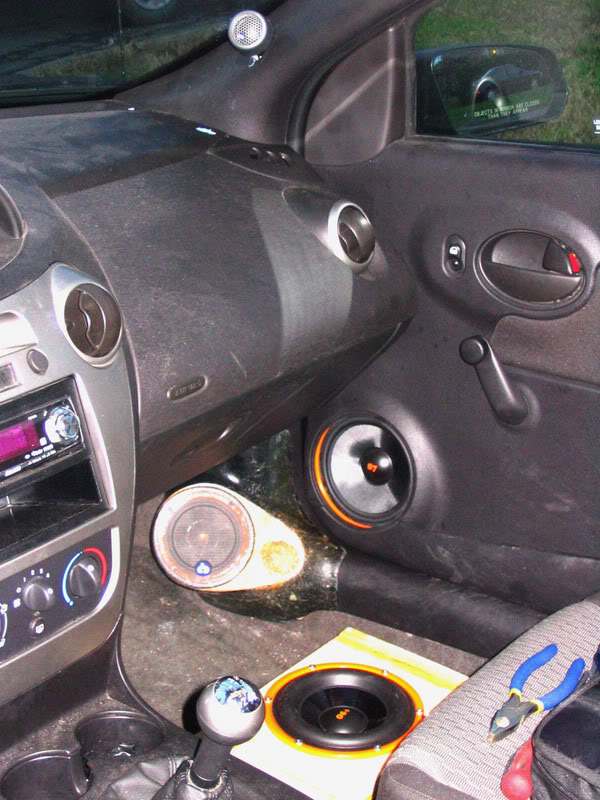

Well, it's kinda done. 800W for my frontstage in a semi-active setup.
Components are as follows.
Speakers :
CDT DRT-25 tweeters
CDT ES-4 gold 4" Midrange
CDT ES-07 gold 7" Midbass / midrange
CDT ES-06+ 6.5" Midbass / Sub
X-overs :
CDT MX-1000 Ultra Flexible 3-way x-over
Amps :
Soundstream TRA800.2 2 X 200W@4ohms (two of em')
Headunit :
Eclipse CD5000
Tweeters, ES-4s and ES-07's are on the passive x-over, highpassed at around 140~150hz. ES-06+ are lowpassed at around the same frequency and highpassed at 45hz. All direct on the amps. I've just started tuning a bit, and, all I can say, is this stuff gets REALLY loud, and stays clean. It's more of an SQL setup I think...... but, no subs yet. Keep in mind, the 06+s will find their way into the doors when time and materials and tools permit. But, right now, this gives me an idea of the sound I'll be getting out of these.
Components are as follows.
Speakers :
CDT DRT-25 tweeters
CDT ES-4 gold 4" Midrange
CDT ES-07 gold 7" Midbass / midrange
CDT ES-06+ 6.5" Midbass / Sub
X-overs :
CDT MX-1000 Ultra Flexible 3-way x-over
Amps :
Soundstream TRA800.2 2 X 200W@4ohms (two of em')
Headunit :
Eclipse CD5000
Tweeters, ES-4s and ES-07's are on the passive x-over, highpassed at around 140~150hz. ES-06+ are lowpassed at around the same frequency and highpassed at 45hz. All direct on the amps. I've just started tuning a bit, and, all I can say, is this stuff gets REALLY loud, and stays clean. It's more of an SQL setup I think...... but, no subs yet. Keep in mind, the 06+s will find their way into the doors when time and materials and tools permit. But, right now, this gives me an idea of the sound I'll be getting out of these.
#2
that looks really cool, dosne't the sub come in the way of the foot area and like distract you when driving?....
i say if you wanted to go beyond, the passenger subwoofer in the glove deparment area, and driver sub like behind your seat or soemthing or right under the clutch the hand rest thing...it'll look crazy...
i say if you wanted to go beyond, the passenger subwoofer in the glove deparment area, and driver sub like behind your seat or soemthing or right under the clutch the hand rest thing...it'll look crazy...
#8
from his post it sounds like he wants to install them in the doors.
I like the idea fiberglassed false floor enclosure which might work....
