General SQ General discussion of Sound Quality related issues.

IB classifications

Thread Tools

Search this Thread

Old Aug 15, 2008 | 10:40 PM
  #11
avidedtr's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (11)

Joined: Dec 2006
Posts: 2,544
what x2
Old Aug 15, 2008 | 11:42 PM
  #12
zzzzzzz's Avatar
4000 Watt CAFz'r
iTrader: (5)

Joined: Jan 2005
Posts: 4,643
if the air space is cut into the vent the pod space is not a small airspace is it ?
Old Aug 16, 2008 | 12:32 AM
  #13
fozzz's Avatar
1000 Watt CAFz'r
iTrader: (1)

Joined: Feb 2004
Posts: 1,339
I think you mean cutting holes in you crush panel area. Like behind a kick panel. I did this in my car.
Old Aug 16, 2008 | 08:30 AM
  #14
df.dima's Avatar
500 Watt CAFz'r
iTrader: (12)

Joined: Jul 2004
Posts: 643
word.
Old Aug 16, 2008 | 08:34 AM
  #15
MTT's Avatar
MTT
--SPECIAL ED--
iTrader: (17)

Joined: Jul 2006
Posts: 1,325
Originally Posted by zzzzzzz
if the air space is cut into the vent the pod space is not a small airspace is it ?
and you have no issues with back waves finding their way around your car with this method?

or does it act as a horn and you just time delay it a little?

Last edited by MTT; Aug 16, 2008 at 08:35 AM. Reason: can't type
Old Aug 16, 2008 | 09:20 AM
  #16
avidedtr's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (11)

Joined: Dec 2006
Posts: 2,544
Ok so now we have all the techy info out of the way! My midbass drivers are the K2P Bass extension kit 6.5" drivers. Currently they are housed in a sealed enclosure in the kicks. I have to use 1/2 a pound of pillow stuffing to stop the kick from resonating!

If I cut the back section out to change the enclosure to IB what size hole and are there any factors that need to be address

"Fozz: I spoke with Focal America and they said the 165KBE's will work in a IB application!"

Ju
Old Aug 16, 2008 | 09:42 AM
  #17
zzzzzzz's Avatar
4000 Watt CAFz'r
iTrader: (5)

Joined: Jan 2005
Posts: 4,643
the horn thing might .......
i just got up so hold on ....
i thing with not having sleep that because the air vent goes to more then one place like to the outside of car and to the dash .the wave does not go into a horn wave
Old Aug 16, 2008 | 09:49 AM
  #18
scott2's Avatar
50 Watt CAFz'r

Joined: Jul 2007
Posts: 84
morning,i too am looking for midbass improvement,maybe try aperiodic before you start cutting holes in your crush panels.might be a cheap solution(scanspeak flow restrictors@solen)thanks to fozz.
Old Aug 16, 2008 | 09:55 AM
  #19
avidedtr's Avatar
Thread Starter
2000 Watt CAFz'r
iTrader: (11)

Joined: Dec 2006
Posts: 2,544
Tymphany : Products : ScanSpeak
Old Aug 16, 2008 | 10:06 AM
  #20
fozzz's Avatar
1000 Watt CAFz'r
iTrader: (1)

Joined: Feb 2004
Posts: 1,339

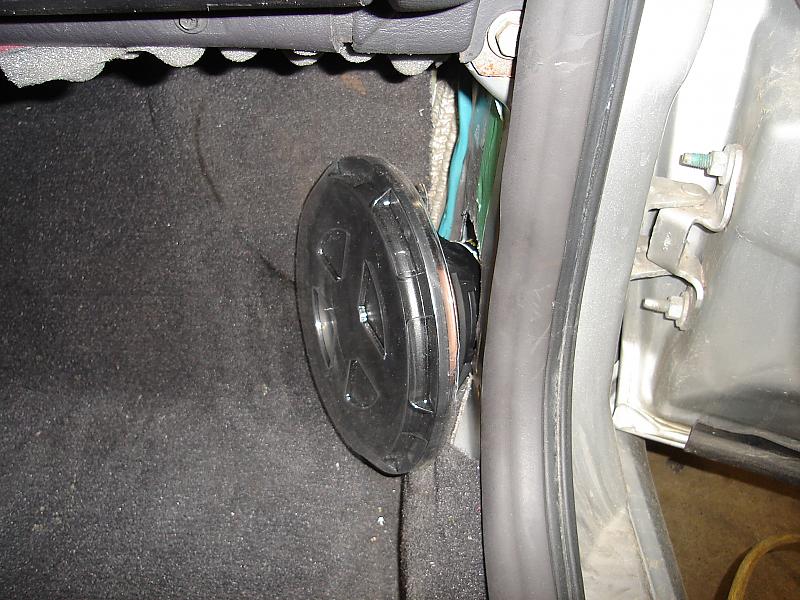

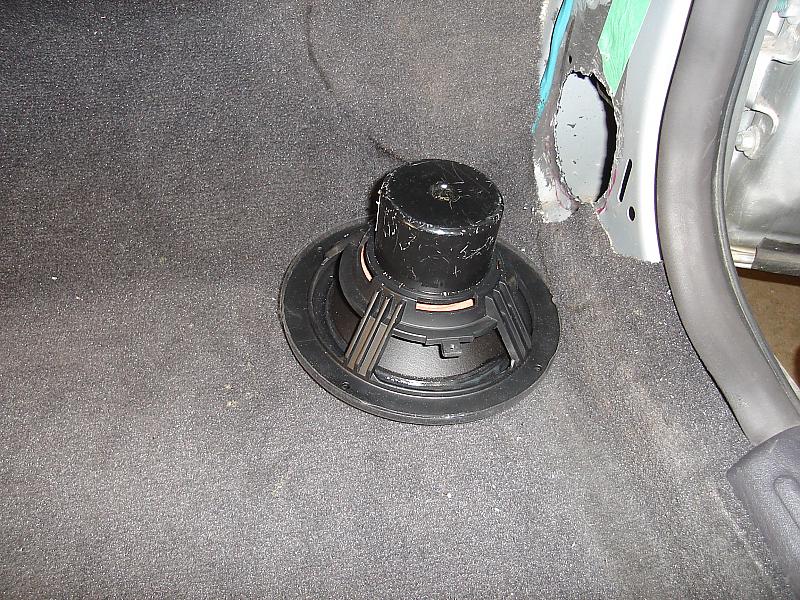

Here is a photo of my kicks. You can see the hole behind the midbass driver. I would say the bigger the hole the better. If you can make it as large as the cone on the driver your using your golden. I don't have a hole cut that large, but my midbass still works well. My kicks are bolted to the car, and I have about a few lbs of clay in and around them to add more mass. There photo are show my preliminary trials for the holes. I ended up making them a little bigger, cleaned up the edges and added sound deadening.
Attached Thumbnails IB classifications-kick-panel1.jpg   IB classifications-kick-panel2.jpg
